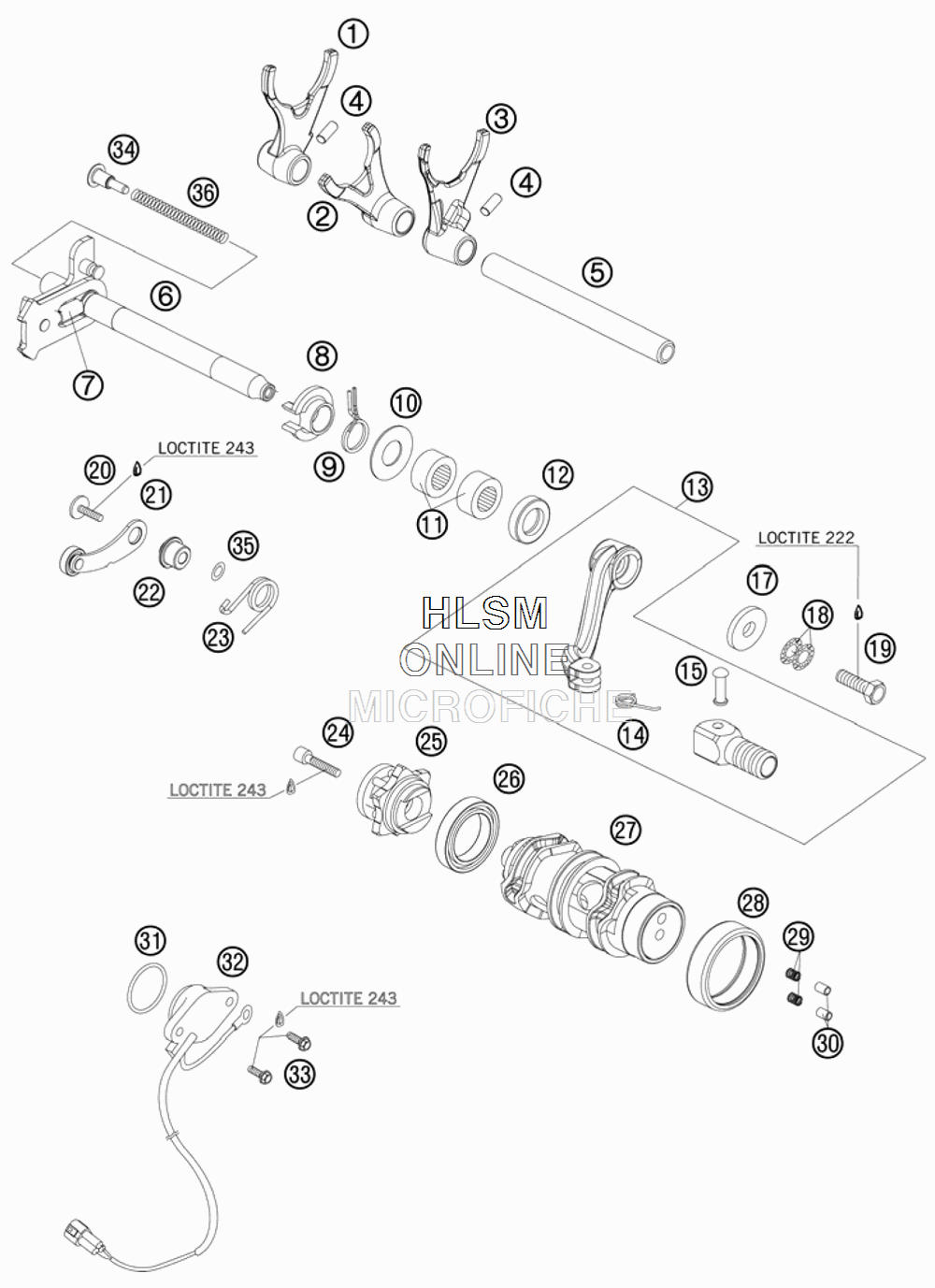

SHIFTING MECHANISM для Ktm 690 ENDURO R - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    75034002000 SHIFT FORK F. SLIDINGGEAR 5
    SHIFT FORK F. SLIDINGGEAR 5
  • 2
    75034001000 SHIFT FORK F. SLIDINGG. 3/4
    SHIFT FORK F. SLIDINGG. 3/4
  • 3
    75034003000 SHIFT FORK F. SLIDINGGEAR 6
    SHIFT FORK F. SLIDINGGEAR 6
  • 4
    0402061480 NEEDLE ROLLER DIN5402 6X14,8
    NEEDLE ROLLER DIN5402 6X14,8
  • 5
    75034019000 SHIFTRAIL
    SHIFTRAIL
  • 6
    75034005044 SHIFT SHAFT CPL.
    SHIFT SHAFT CPL.
  • 7
    56534013100 TENSIONING SPRING 0,8MM
    TENSIONING SPRING 0,8MM
  • 8
    54634020000 SPRING GUIDE
    SPRING GUIDE
  • 9
    54634014100 RETURN SPRING 2,2MM
    RETURN SPRING 2,2MM
  • 10
    75034050000 STOP DISK 14X30X1,5 STEEL
    STOP DISK 14X30X1,5 STEEL
  • 11
    54632095000 NEEDLE BEAR.HK 1412 14X20X12
    NEEDLE BEAR.HK 1412 14X20X12
  • 12
    0760142461 SHAFT SEAL RING 14X24X6B VITON
    SHAFT SEAL RING 14X24X6B VITON
  • 13
    76234031000 SHIFT LEVER CPL.
    SHIFT LEVER CPL.
  • 14
    75034032000 SHIFTING LEVER SPRING
    SHIFTING LEVER SPRING
  • 15
    54634031050 BOLT 6X25 FOR SHIFT LEVER
    BOLT 6X25 FOR SHIFT LEVER
  • 17
    50232050001 STEEL WASHER 6,4X17X3
    STEEL WASHER 6,4X17X3
  • 18
    50233041000 PAIR OF WASHERS M 6 NORDLOCK
    PAIR OF WASHERS M 6 NORDLOCK
  • 19
    0933060165 HH SCREW DIN0933-M 6X16 10.9
    HH SCREW DIN0933-M 6X16 10.9
  • 20
    0024060206 HH COLLAR SCREW M6X20
    HH COLLAR SCREW M6X20
  • 21
    75034024044 LOCKING LEVER CPL.
    LOCKING LEVER CPL.
  • 22
    75034052000 SLEEVE FOR LOCKING LEVER
    SLEEVE FOR LOCKING LEVER
  • 23
    60034023000 ARRESTING LEVER SPRING
    ARRESTING LEVER SPRING
  • 24
    0012060303 AH SCREW DIN6912 M6X30 8.8
    AH SCREW DIN6912 M6X30 8.8
  • 25
    75034015000 SHIFT DRUM LOCATING CPL.
    SHIFT DRUM LOCATING CPL.
  • 26
    0625068050 BALL BEARING 6805 C4 NTN JAPAN
    BALL BEARING 6805 C4 NTN JAPAN
  • 27
    75034012044 SHIFT ROLLER CPL.
    SHIFT ROLLER CPL.
  • 28
    0618354212 NEEDLE BEAR HK3512 35X42X12
    NEEDLE BEAR HK3512 35X42X12
  • 29
    60034014000 CONTACT SPRING
    CONTACT SPRING
  • 30
    60034037000 CONTACT BOLT
    CONTACT BOLT
  • 31
    0770275025 O-RING 27,5X2,5 NBR
    O-RING 27,5X2,5 NBR
  • 32
    60011023100 GEAR-POSITION SENSOR
    GEAR-POSITION SENSOR
  • 33
    0025050166 HH COLLAR SCREW M5X16
    HH COLLAR SCREW M5X16
  • 34
    75034006000 SPACER
    SPACER
  • 35
    0137060003 SPRING WASHER DIN0137-B 6
    SPRING WASHER DIN0137-B 6
  • 36
    75034007000 SPRING FOR OPERATING SHAFT
    SPRING FOR OPERATING SHAFT
