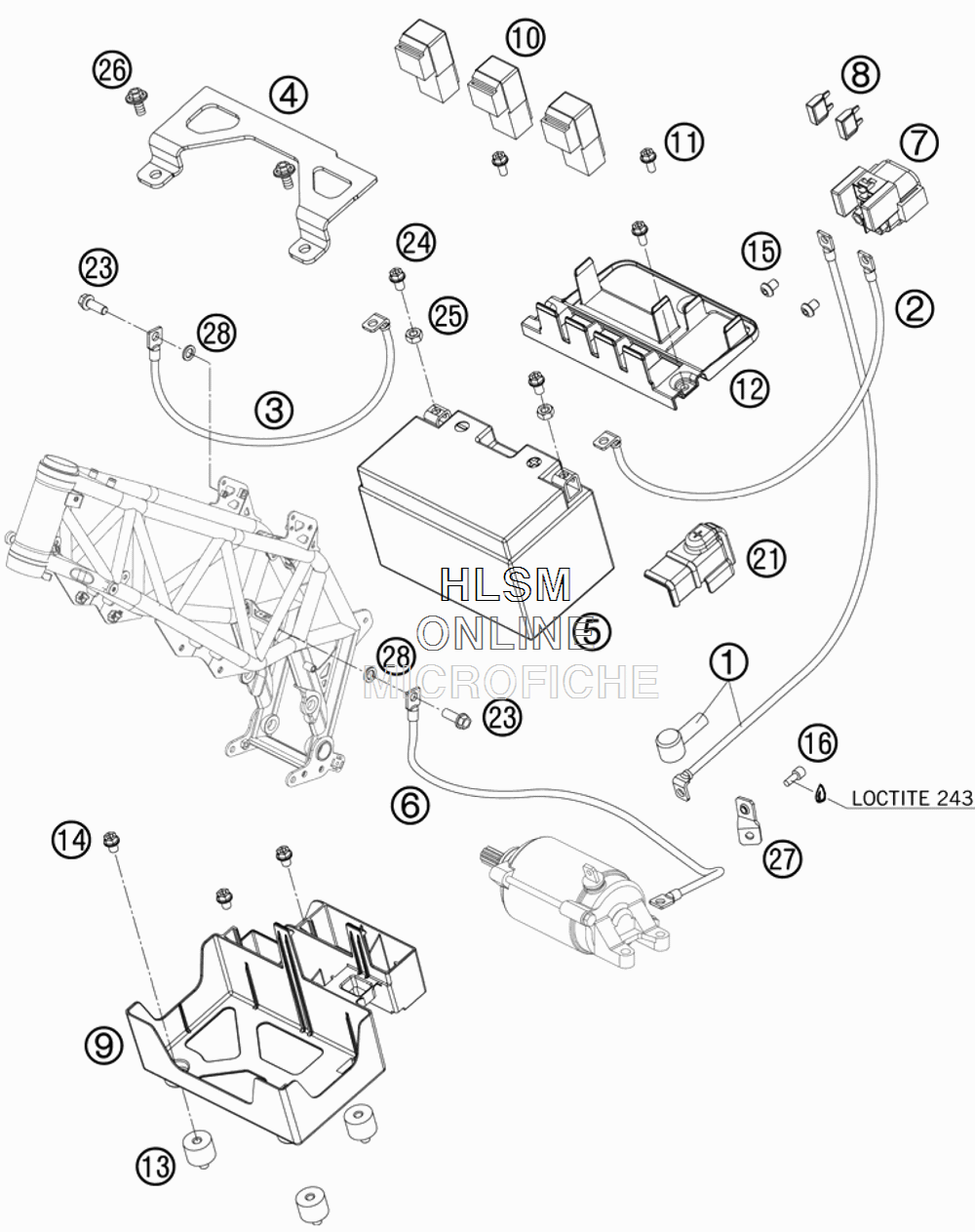

BATTERY для Ktm 690 ENDURO R - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    76511059000 STARTER-CABLE L=570MM
    STARTER-CABLE L=570MM
  • 2
    75011059150 BATTERY-CABLE L=170MM
    BATTERY-CABLE L=170MM
  • 3
    76511097000 GROUND CABLE L=420MM
    GROUND CABLE L=420MM
  • 4
    76511056000 RETAINING PLATE BATTERY
    RETAINING PLATE BATTERY
  • 5
    58411053100 BATTERY 12V 8,6AH
    BATTERY 12V 8,6AH
  • 6
    58411097100 GROUND CABLE D=6MM L=140MM
    GROUND CABLE D=6MM L=140MM
  • 7
    58211058000 STARTER RELAY 12V
    STARTER RELAY 12V
  • 8
    58011109130 FUSE 30 A
    FUSE 30 A
  • 9
    76511054000 BATTERY BRACKET
    BATTERY BRACKET
  • 10
    61111057000 RELAY CM1A-R-12V-H80
    RELAY CM1A-R-12V-H80
  • 11
    0025050126 HH COLLAR SCREW M5X12
    HH COLLAR SCREW M5X12
  • 12
    76511055000 HOLDER F.ELECTRIC
    HOLDER F.ELECTRIC
  • 13
    43205062100 RUBBER GROMMET 20X15-M6X10 (1)
    RUBBER GROMMET 20X15-M6X10 (1)
  • 14
    0025060086 HH COLLAR SCREW M6X8
    HH COLLAR SCREW M6X8
  • 15
    0902060083 AH OVAL SCREW ISO 7380 M 6X8
    AH OVAL SCREW ISO 7380 M 6X8
  • 16
    0912050083 AH SCREW DIN 912 M 5X8
    AH SCREW DIN 912 M 5X8
  • 21
    75011059060 POSITIVE POLE COVER
    POSITIVE POLE COVER
  • 23
    0025060166 HH COLLAR SCREW M6X16
    HH COLLAR SCREW M6X16
  • 24
    0025060106 HH COLLAR SCREW M6X10
    HH COLLAR SCREW M6X10
  • 25
    0934060003 HEXAGON NUT DIN0934-M 6
    HEXAGON NUT DIN0934-M 6
  • 26
    0024060136 HH COLLAR SCREW M6X13
    HH COLLAR SCREW M6X13
  • 27
    76511059061 RETAINING PLATE STARTER CABLE
    RETAINING PLATE STARTER CABLE
  • 28
    58411098100 CONTACT WASHER M6 VSV-K6
    CONTACT WASHER M6 VSV-K6
