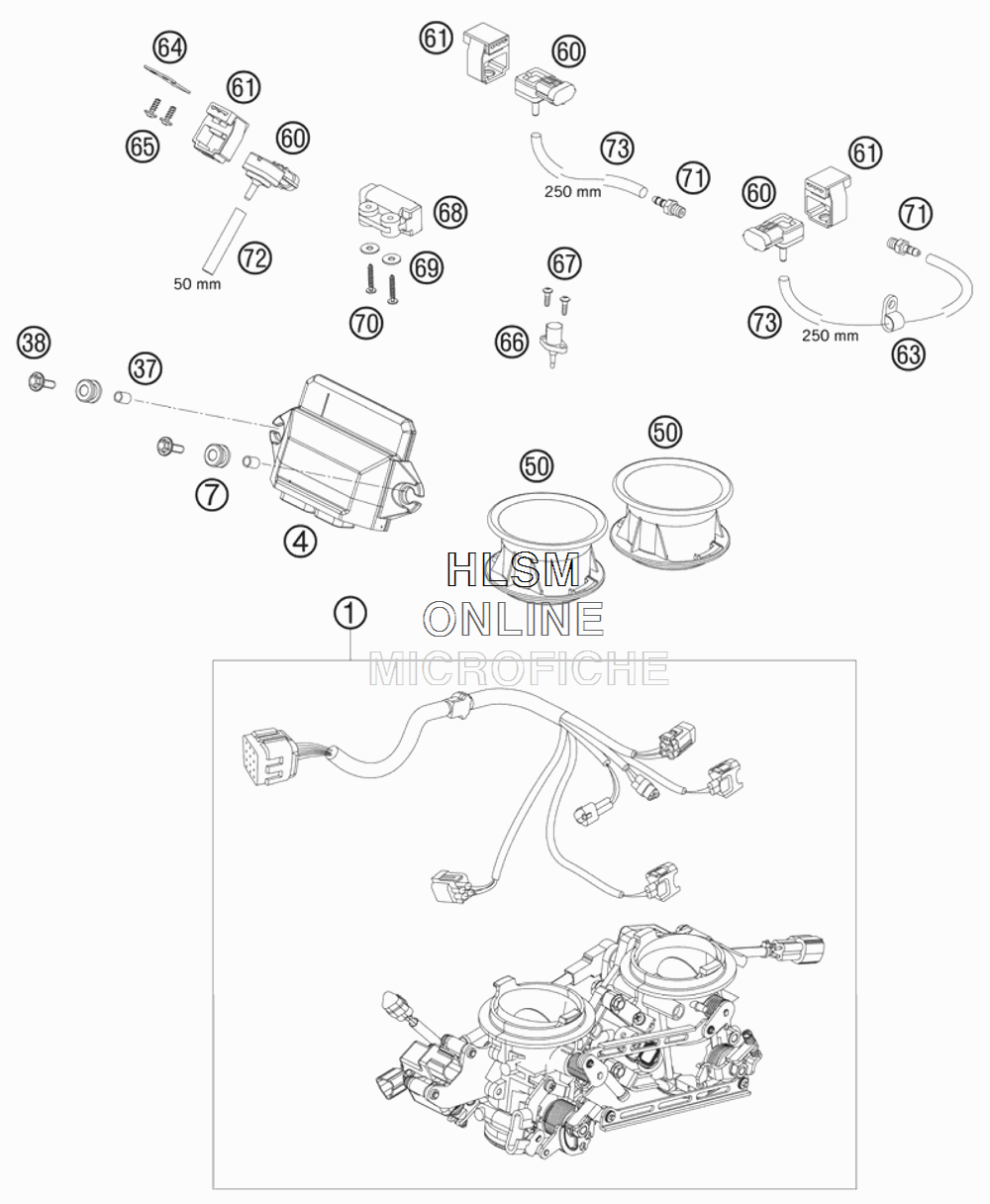

THROTTLE BODY для Ktm 990 SUPERDUKE R - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    61241001000 THROTTLE BODY CPL. DK52
    THROTTLE BODY CPL. DK52
  • 4
    61041031200 TIMING CHARGER EFI
    TIMING CHARGER EFI
  • 7
    60039030000 VIBRATION DAMPER DIGITALBOX
    VIBRATION DAMPER DIGITALBOX
  • 37
    61141028000 SPACER BUSHING 6,3X8,5X11
    SPACER BUSHING 6,3X8,5X11
  • 38
    0024060206 HH COLLAR SCREW M6X20 TX30
    HH COLLAR SCREW M6X20 TX30
  • 50
    61041040000 INTAKE TRUMPET
    INTAKE TRUMPET
  • 60
    61041085100 PRESSURE SENSOR
    PRESSURE SENSOR
  • 61
    61041085150 RUBBER SUPP. PRESSURE SENS.
    RUBBER SUPP. PRESSURE SENS.
  • 63
    57013070100 PVC-CLAMP 7,9 MM HEYCO 3355
    PVC-CLAMP 7,9 MM HEYCO 3355
  • 64
    61041085060 SUPPORT PRESSURE SENSOR
    SUPPORT PRESSURE SENSOR
  • 65
    0016050121 SCREW FOR PLASTIC 50X12
    SCREW FOR PLASTIC 50X12
  • 66
    61041080000 AMBIENT-AIR TEMPERATURE SENSOR
    AMBIENT-AIR TEMPERATURE SENSOR
  • 67
    0081500181 SCREW FOR PLASTIC D=5X18
    SCREW FOR PLASTIC D=5X18
  • 68
    61041088000 ROLLOVER SENSOR
    ROLLOVER SENSOR
  • 69
    61041088050 SHIM 4,3X15X1,25MM GALVANIZED
    SHIM 4,3X15X1,25MM GALVANIZED
  • 70
    0081400253 PLASTIC SCREW KA40X25WN1412
    PLASTIC SCREW KA40X25WN1412
  • 71
    61036023100 VACUUM CONECTION
    VACUUM CONECTION
  • 72
    61041095050 HOSE 3,2X8,5 L=50 MM
    HOSE 3,2X8,5 L=50 MM
  • 73
    61041095250 HOSE 3,2X8,5 L= 250 MM
    HOSE 3,2X8,5 L= 250 MM
