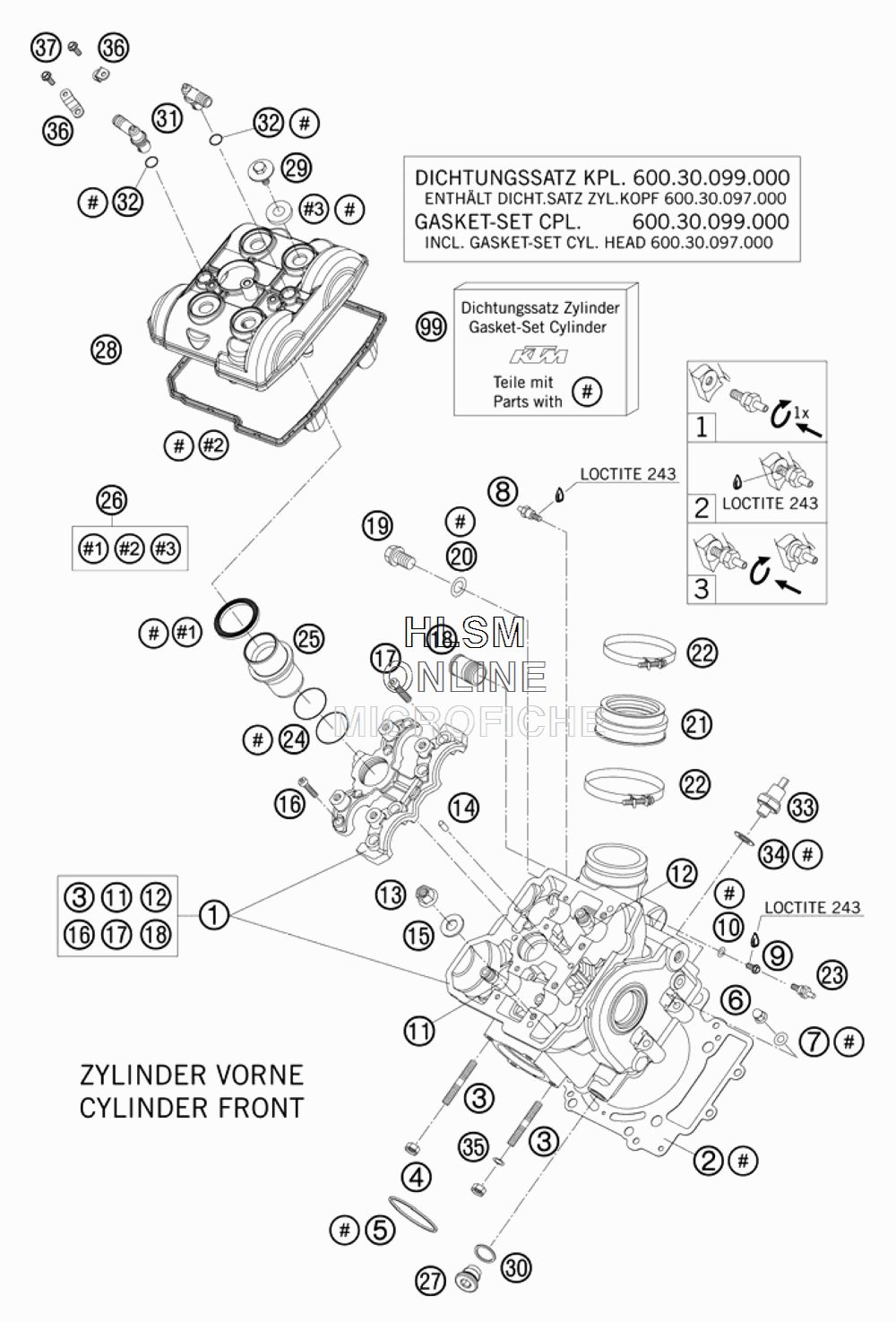

CYLINDER HEAD FRONT для Ktm 990 SUPERDUKE R - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    61136020144 CYLIDNER HEAD CPL. FRONT
    CYLIDNER HEAD CPL. FRONT
  • 2
    60030036000 CYLINDER HEAD GASKET 0,5 101MM
    CYLINDER HEAD GASKET 0,5 101MM
  • 3
    0835080256 STUD DIN0835-M 8X25 10.9
    STUD DIN0835-M 8X25 10.9
  • 4
    51010086100 SELF LOCKING NUT M 8 CU
    SELF LOCKING NUT M 8 CU
  • 5
    61005005000 EXHAUST GASKET
    EXHAUST GASKET
  • 6
    0587060002 HH CAP NUT DIN1587-M 6 SS.
    HH CAP NUT DIN1587-M 6 SS.
  • 7
    0125060003 WASHER DIN0125-A 6,4
    WASHER DIN0125-A 6,4
  • 8
    61036023100 VACUUM CONECTION
    VACUUM CONECTION
  • 9
    0015060083 HH COLLAR SCREW M 6X8 WS=8
    HH COLLAR SCREW M 6X8 WS=8
  • 10
    0603061001 CU-SEAL RING DIN7603-6X10X1
    CU-SEAL RING DIN7603-6X10X1
  • 11
    61136026000 VALVE GUIDE OUTTAKE
    VALVE GUIDE OUTTAKE
  • 12
    61136025000 VALVE GUIDE INTAKE
    VALVE GUIDE INTAKE
  • 13
    60036078200 COLLAR NUT M 10 WS=13 05
    COLLAR NUT M 10 WS=13 05
  • 14
    0402050980 NEEDLE ROLLER DIN5402 5X9,8
    NEEDLE ROLLER DIN5402 5X9,8
  • 15
    60036078050 SHIM 10,2X19X1,5MM 05
    SHIM 10,2X19X1,5MM 05
  • 16
    0912060255 AH SCREW DIN0912-M 6X25 10.9
    AH SCREW DIN0912-M 6X25 10.9
  • 17
    0984080305 AH SCREW DIN7984-M 8X30 10.9
    AH SCREW DIN7984-M 8X30 10.9
  • 18
    61135019000 WATER CONNECTION
    WATER CONNECTION
  • 19
    0908120153 PLUG DIN0908-M12X1,5
    PLUG DIN0908-M12X1,5
  • 20
    58038022000 CU-SEAL RING DIN7603-12X18X1,5
    CU-SEAL RING DIN7603-12X18X1,5
  • 21
    61136044000 RUBBERSLEEVE INTAKE FLANGE
    RUBBERSLEEVE INTAKE FLANGE
  • 22
    61036048000 HOSE CLAMP GEMI 66MM 05
    HOSE CLAMP GEMI 66MM 05
  • 23
    60036023100 VACUUM CONECTION M6/0,5MM (USA)
    VACUUM CONECTION M6/0,5MM (USA)
  • 24
    0770298178 O-RING 29,87X1,78 VITON
    O-RING 29,87X1,78 VITON
  • 25
    61136075100 INSERT SPARK-PLUG SHAFT
    INSERT SPARK-PLUG SHAFT
  • 26
    60036099000 VALVE COVER GASKET SET FR - REAR
    VALVE COVER GASKET SET FR - REAR
  • 27
    60036008000 SCREW PLUG M16X1,5
    SCREW PLUG M16X1,5
  • 28
    60036052000 VALVE COVER FRONT
    VALVE COVER FRONT
  • 29
    60036052020 COLLAR SCREW M 6 WS=10
    COLLAR SCREW M 6 WS=10
  • 30
    0603162013 CU SEAL-RING DIN7603 16X20X1,3
    CU SEAL-RING DIN7603 16X20X1,3
  • 31
    60038082000 ANGLE CONNECTOR
    ANGLE CONNECTOR
  • 32
    0770080020 O-RING 8X2 SILICONE
    O-RING 8X2 SILICONE
  • 33
    60038091100 OIL-PRESSURE SWITCH
    OIL-PRESSURE SWITCH
  • 34
    0603100141 COPPER GASKET DIN7603-10X14X1
    COPPER GASKET DIN7603-10X14X1
  • 35
    61005009000 SPACER BUSH. SH. 8,5X15X 7,5
    SPACER BUSH. SH. 8,5X15X 7,5
  • 36
    60038082050 ANGLE CONNECTOR BRACKET PANEL
    ANGLE CONNECTOR BRACKET PANEL
  • 37
    0009050103 SPECIAL SCREW M 5,0X10
    SPECIAL SCREW M 5,0X10
  • 99
    60030097000 GASKET SET CYL. HEAD CPL. FRONT - REAR
    GASKET SET CYL. HEAD CPL. FRONT - REAR
