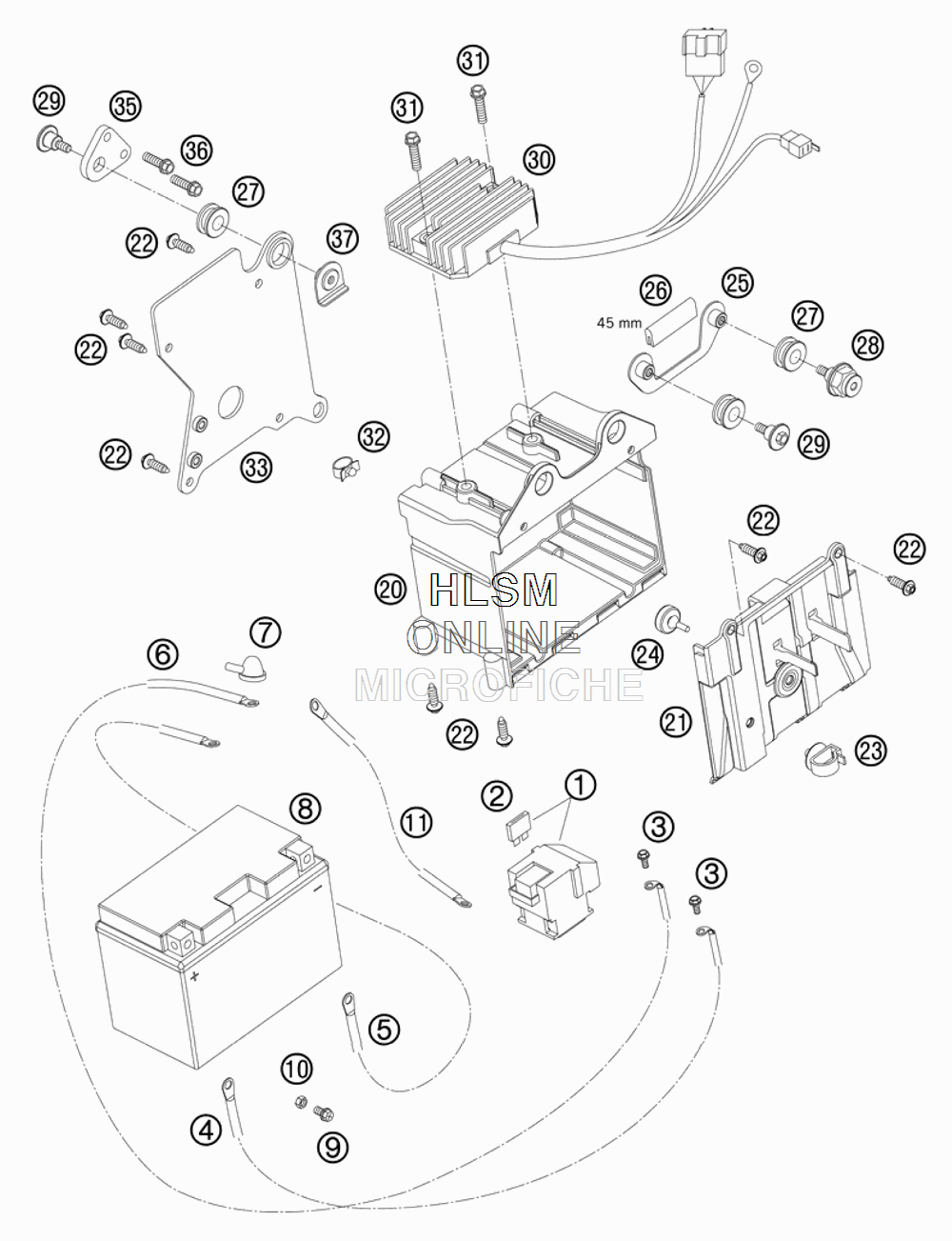

BATTERY BOX для Ktm 990 SUPERDUKE R - 2008 года выпуска
-
№АртикулНазвание
-
160011058000 STARTER RELAYSTARTER RELAY
-
258011109130 FUSE 30 AFUSE 30 A
-
30902060083 AH OVAL SCREW ISO 7380 M 6X8AH OVAL SCREW ISO 7380 M 6X8
-
461011059050 BATTERY CABLE L=230MMBATTERY CABLE L=230MM
-
561011097000 GROUND CABLE L=450MMGROUND CABLE L=450MM
-
661011059000 STARTERCABLE L=820 MMSTARTERCABLE L=820 MM
-
760040009000 RUBBER CAP STARTER PORTRUBBER CAP STARTER PORT
-
860011053000 BATTERY 12V/11AHBATTERY 12V/11AH
-
90024060106 HH COLLAR SCREW M6X10 TX30HH COLLAR SCREW M6X10 TX30
-
100934060003 HEXAGON NUT DIN0934-M 6HEXAGON NUT DIN0934-M 6
-
1161111097000 GROUND CABLEGROUND CABLE
-
2061011054000 BATTERY BOXBATTERY BOX
-
2161011054006 BATTERY BOX COVERBATTERY BOX COVER
-
220017060203 EJOT PT SCREW K60X20 WS=6EJOT PT SCREW K60X20 WS=6
-
2358111076000 CABLE SUPPORT KHS NR.150-47610CABLE SUPPORT KHS NR.150-47610
-
2460006001021 DISTANCE RUBBER AIRBOXDISTANCE RUBBER AIRBOX
-
2561011055033 ANTI-ROT. ELEMENT DUAL CPL.ANTI-ROT. ELEMENT DUAL CPL.
-
2658312085100 EDGE PROTECTOR PER METEREDGE PROTECTOR PER METER
-
2760003098000 RUBBER SLEEVERUBBER SLEEVE
-
2861011055050 SPECIAL SCREW M6 WS19SPECIAL SCREW M6 WS19
-
2960035001000 SCREW RADIATOR BRACKET M6SCREW RADIATOR BRACKET M6
-
3060011034100 VOLTAGE REGULATORVOLTAGE REGULATOR
-
310025060306 HH COLLAR SCREW M6X30 TX30HH COLLAR SCREW M6X30 TX30
-
3257013072100 WIRING HOLDER 16MMWIRING HOLDER 16MM
-
3361011057033 BATTERY BOX SUPPORT R/S CPL.BATTERY BOX SUPPORT R/S CPL.
-
3561011056020 BATTERY SUPPORTBATTERY SUPPORT
-
360025060206 HH COLLAR SCREW M6X20 TX30HH COLLAR SCREW M6X20 TX30
-
3761011056033 ANTI-ROTATION ELEMENT CPL.ANTI-ROTATION ELEMENT CPL.
