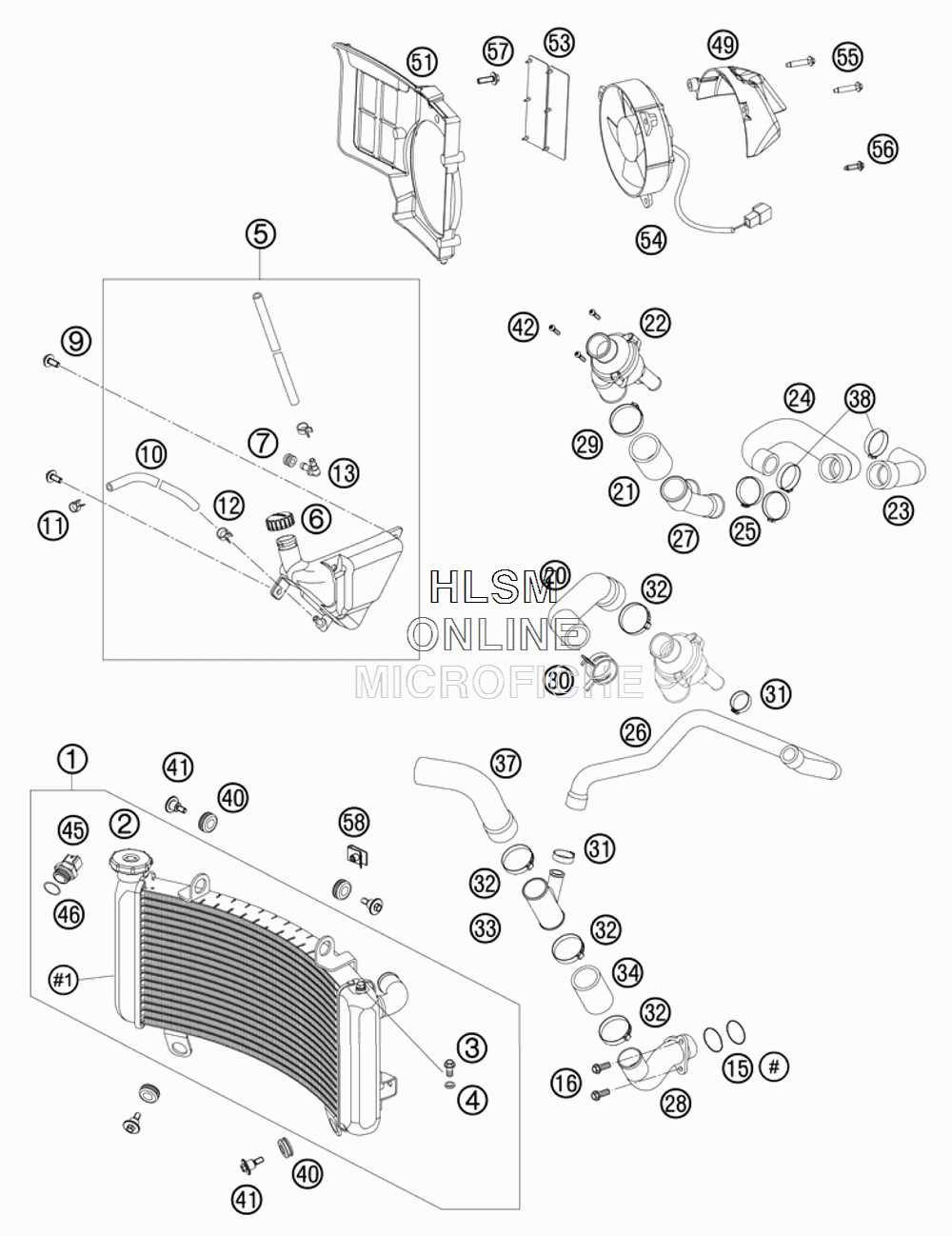

COOLING SYSTEM для Ktm 990 SUPERDUKE R - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    61035010000 RADIATOR
    RADIATOR
  • 2
    61035016000 RADIATOR CAP
    RADIATOR CAP
  • 3
    0015060103 HH COLLAR SCREW M 6X10 WS=8
    HH COLLAR SCREW M 6X10 WS=8
  • 4
    0125060003 WASHER DIN0125-A 6,4
    WASHER DIN0125-A 6,4
  • 5
    61035065000 EXPANSION TANK CPL.
    EXPANSION TANK CPL.
  • 6
    60035066000 PLUG F. EXPANSION TANK
    PLUG F. EXPANSION TANK
  • 7
    58214069051 RUBBER GROMMET 16X10,8X3
    RUBBER GROMMET 16X10,8X3
  • 9
    0014060153 HH COLLAR SCREW M 6X15 WS=8
    HH COLLAR SCREW M 6X15 WS=8
  • 10
    60035067001 HOSE 6X10 EPDM
    HOSE 6X10 EPDM
  • 11
    50231005000 HOSE CLAMP YDNAC 10119 11MM
    HOSE CLAMP YDNAC 10119 11MM
  • 12
    58007117000 YDNAC-CLAMP 10107 10MM
    YDNAC-CLAMP 10107 10MM
  • 13
    61135028000 PREF. HOSE THERM/.COOLER
    PREF. HOSE THERM/.COOLER
  • 15
    0770280030 O-RING 28,00X3,00 NBR
    O-RING 28,00X3,00 NBR
  • 16
    0015060603 HH COLLAR SCREW M 6X60 WS=8
    HH COLLAR SCREW M 6X60 WS=8
  • 20
    61135028000 PREF. HOSE THERM/.COOLER
    PREF. HOSE THERM/.COOLER
  • 21
    61135028040 PREF. HOSE THERM/.CYL. L=40
    PREF. HOSE THERM/.CYL. L=40
  • 22
    61135013044 THERMOSTAT CPL.
    THERMOSTAT CPL.
  • 23
    61135026000 PREF. HOSE THERM/.CYL. REAR
    PREF. HOSE THERM/.CYL. REAR
  • 24
    61135027000 PREF. HOSE THERM/.CYL. FRONT
    PREF. HOSE THERM/.CYL. FRONT
  • 25
    00050346706 VARIABLE ONE-EAR CLAMP 34,6MM
    VARIABLE ONE-EAR CLAMP 34,6MM
  • 26
    61135025000 PREFORMED HOSE BYPASS
    PREFORMED HOSE BYPASS
  • 27
    61135029000 Y-CONNECT. PIECE THERM./CYL
    Y-CONNECT. PIECE THERM./CYL
  • 28
    61135021000 PIPE WAPU 28X1,5 CPL.
    PIPE WAPU 28X1,5 CPL.
  • 29
    00050396706 VARIABLE ONE-EAR CLAMP 39,6MM
    VARIABLE ONE-EAR CLAMP 39,6MM
  • 30
    00049320121 CLAMP STD DN32
    CLAMP STD DN32
  • 31
    00050256706 VARIABLE ONE-EAR CLAMP 25,6MM
    VARIABLE ONE-EAR CLAMP 25,6MM
  • 32
    00050381706 VARIABLE ONE-EAR CLAMP 38,1MM
    VARIABLE ONE-EAR CLAMP 38,1MM
  • 33
    61135023000 Y-CONNECTING PIECE WAPU BYPASS
    Y-CONNECTING PIECE WAPU BYPASS
  • 34
    61135024040 RADIATORHOSE RADIATOR/WAPU
    RADIATORHOSE RADIATOR/WAPU
  • 37
    61135024000 PREFORMED HOSE COOLER/WAPU
    PREFORMED HOSE COOLER/WAPU
  • 38
    00050316706 VARIABLE ONE-EAR CLAMP 31,6MM
    VARIABLE ONE-EAR CLAMP 31,6MM
  • 40
    41001052000 RUBBER SLEEVE D=12MM
    RUBBER SLEEVE D=12MM
  • 41
    60035001000 SCREW RADIATOR BRACKET M6
    SCREW RADIATOR BRACKET M6
  • 42
    0016040183 SCREW FOR PLASTIC D=4X18
    SCREW FOR PLASTIC D=4X18
  • 45
    60035045000 THERMOSWITCH LC8 102DG
    THERMOSWITCH LC8 102DG
  • 46
    0770017015 O-RING NG 17X1,5 NB75
    O-RING NG 17X1,5 NB75
  • 49
    61035044050 FAN CAP
    FAN CAP
  • 51
    60035044000 FAN COWL L/S
    FAN COWL L/S
  • 53
    58435044050 FAN FLAP RUBBER
    FAN FLAP RUBBER
  • 54
    60035041000 FAN L/S
    FAN L/S
  • 55
    0017060303 SPECIAL SCREW T60 6X30 WS=6
    SPECIAL SCREW T60 6X30 WS=6
  • 56
    0017060203 EJOT PT SCREW K60X20 WS=6
    EJOT PT SCREW K60X20 WS=6
  • 57
    0014060203 HH COLLAR SCREW M 6X20 WS=8
    HH COLLAR SCREW M 6X20 WS=8
  • 58
    54603048100 RANGE CHANGE METAL NUT M6
    RANGE CHANGE METAL NUT M6
