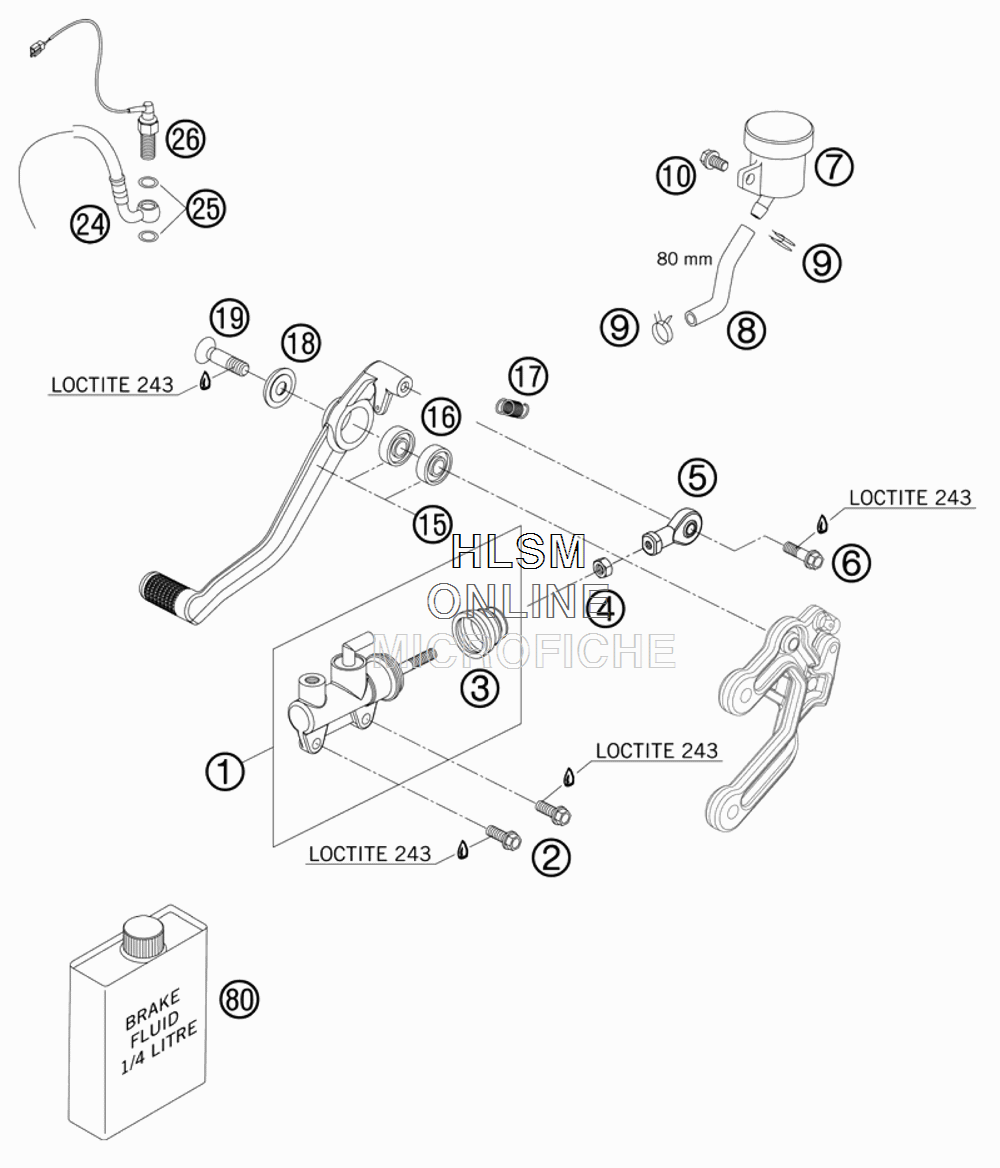

REAR BRAKE CONTROL для Ktm 990 SUPERDUKE R - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    61013060000 MAIN BRAKE CYLINDER
    MAIN BRAKE CYLINDER
  • 2
    59009062016 SPECIAL SCREW M6X16 WS=8 10.9
    SPECIAL SCREW M6X16 WS=8 10.9
  • 3
    61013064000 CUP FOR MAIN BRAKE CYLINDER
    CUP FOR MAIN BRAKE CYLINDER
  • 4
    0934060003 HEXAGON NUT DIN0934-M 6
    HEXAGON NUT DIN0934-M 6
  • 5
    54603069000 SWIVEL HEAD M6 FOOT BRAKE LEV.
    SWIVEL HEAD M6 FOOT BRAKE LEV.
  • 6
    59009062019 SPECIAL SCREW M6X19 WS=8 10.9
    SPECIAL SCREW M6X19 WS=8 10.9
  • 7
    61013069000 RESERVOIR REAR CPL.
    RESERVOIR REAR CPL.
  • 8
    58007016101 HOSE FOR RESERVOIR 6X1,5
    HOSE FOR RESERVOIR 6X1,5
  • 9
    58007017000 YDNAC CLAMP 10101 (9MM)
    YDNAC CLAMP 10101 (9MM)
  • 10
    0025060106 HH COLLAR SCREW M6X10 TX30
    HH COLLAR SCREW M6X10 TX30
  • 15
    6101305004433S FOOT BRAKE LEVER CPL.
    FOOT BRAKE LEVER CPL.
  • 16
    0625006087 GROOVED BALL BEAR. 608 2RS C3
    GROOVED BALL BEAR. 608 2RS C3
  • 17
    61013052000 SPRING FOOT BRAKE LEVER
    SPRING FOOT BRAKE LEVER
  • 18
    58303061200 SPECIAL WASHER ALU 8X24 MM
    SPECIAL WASHER ALU 8X24 MM
  • 19
    61013059000 FLAT HEAD SCREW M8X32 SL
    FLAT HEAD SCREW M8X32 SL
  • 24
    61013072000 BRAKE PIPE REAR
    BRAKE PIPE REAR
  • 25
    0603100141 COPPER GASKET DIN7603-10X14X1
    COPPER GASKET DIN7603-10X14X1
  • 26
    61011051000 BRAKE LIGHT SWITCH REAR
    BRAKE LIGHT SWITCH REAR
  • 80
    00062030000 BRAKE FLUID DOT5.1 T5.1 0,25L
    BRAKE FLUID DOT5.1 T5.1 0,25L
