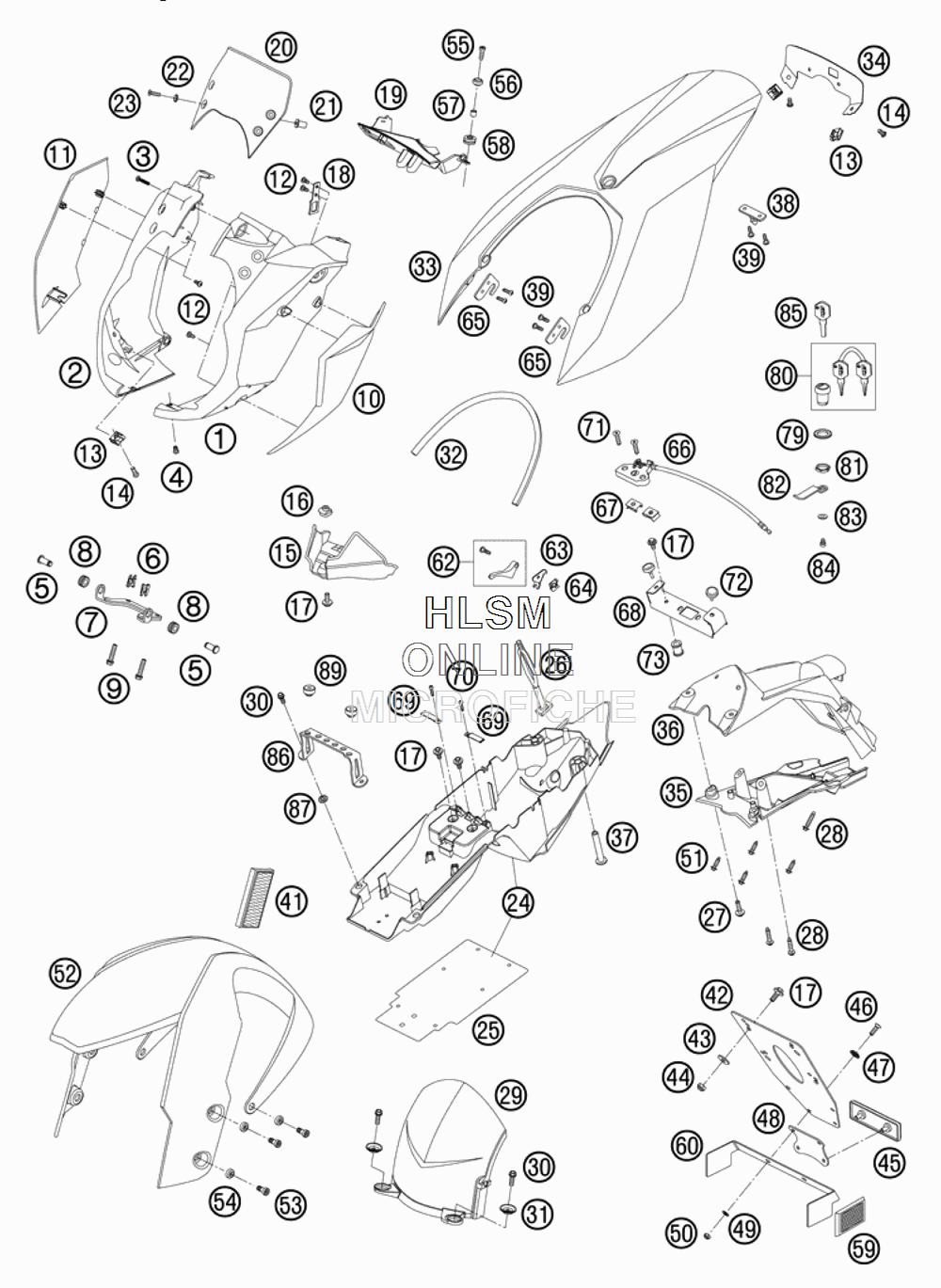

MASK FENDERS для Ktm 990 SUPERDUKE R - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    61108001000 HEAD LIGHT MASK LEFT
    HEAD LIGHT MASK LEFT
  • 2
    61108002000 HEAD LIGHT MASK RIGHT
    HEAD LIGHT MASK RIGHT
  • 3
    0016050253 SCREW FOR PLASTIC
    SCREW FOR PLASTIC
  • 4
    61103088000 EXPANDING RIVET PA6 BLACK
    EXPANDING RIVET PA6 BLACK
  • 5
    60013057000 BOLT F. LINK FORK 8X20X16,5
    BOLT F. LINK FORK 8X20X16,5
  • 6
    60013058000 SECURING CLIP D=8MM
    SECURING CLIP D=8MM
  • 7
    58708002000 HINGE JOINT BOTTOM
    HINGE JOINT BOTTOM
  • 8
    31008060000 RUBBER SLEEVE D=8MM OPEN
    RUBBER SLEEVE D=8MM OPEN
  • 9
    0025060456 HH COLLAR SCREW M6X45 TX30
    HH COLLAR SCREW M6X45 TX30
  • 10
    6110800300033A MASK SPOILER L/S BLACK MATT
    MASK SPOILER L/S BLACK MATT
  • 11
    6110800400033A MASK SPOILER R/S BLACK MATT
    MASK SPOILER R/S BLACK MATT
  • 12
    0016050121 SCREW FOR PLASTIC 50X12
    SCREW FOR PLASTIC 50X12
  • 13
    54603048300 RANGE CHANGE METAL NUT M6 INOX
    RANGE CHANGE METAL NUT M6 INOX
  • 14
    0738060121 OVAL HEAD SCREW ISK. ISO7380
    OVAL HEAD SCREW ISK. ISO7380
  • 15
    61003094000 SPLASH PROTECT. FRAME HEAD
    SPLASH PROTECT. FRAME HEAD
  • 16
    50235033300 SNAP-NUT HOLDER M6 KP142
    SNAP-NUT HOLDER M6 KP142
  • 17
    0024060156 HH COLLAR SCREW M6X15 TX30
    HH COLLAR SCREW M6X15 TX30
  • 18
    61111020050 BRACKET STARTER
    BRACKET STARTER
  • 19
    61108005000 SPEEDOMETER BRACKET
    SPEEDOMETER BRACKET
  • 20
    61108065000 WIND SHIELD
    WIND SHIELD
  • 21
    60008008050 BLIND PLUG-IN NUT M5 WN 16A
    BLIND PLUG-IN NUT M5 WN 16A
  • 22
    60008046000 SPECIAL WASHER D=12MM
    SPECIAL WASHER D=12MM
  • 23
    0991050204 FLAT HEAD SCREW DIN7991-M 5X20
    FLAT HEAD SCREW DIN7991-M 5X20
  • 24
    61108119044 REAR END LOW. PART CPL.
    REAR END LOW. PART CPL.
  • 25
    61108121000 THER.PROT.FOIL REAR LOW.PART
    THER.PROT.FOIL REAR LOW.PART
  • 26
    50303018000 RUBBER L=145MM
    RUBBER L=145MM
  • 27
    0024060256 HH COLLAR SCREW M6X25 TX30
    HH COLLAR SCREW M6X25 TX30
  • 28
    0017060303 SPECIAL SCREW T60 6X30 WS=6
    SPECIAL SCREW T60 6X30 WS=6
  • 29
    61008014000 SPLASH PROTECT.
    SPLASH PROTECT.
  • 30
    0025060166 HH COLLAR SCREW M6X16 TX30
    HH COLLAR SCREW M6X16 TX30
  • 31
    72210079000 BUCKET
    BUCKET
  • 32
    61108118070 EDGE PROTECTOR L=446MM
    EDGE PROTECTOR L=446MM
  • 33
    6110811803333A REAR-END HIGH.P. MONOS.CPL
    REAR-END HIGH.P. MONOS.CPL
  • 34
    61108118085 SUPPORT PLATE TAILLIGHT
    SUPPORT PLATE TAILLIGHT
  • 35
    61108115000 NUM. PLATE SUPPORT LO. PART
    NUM. PLATE SUPPORT LO. PART
  • 36
    61108122000 NUM. PLATE SUPPORT UP. PART
    NUM. PLATE SUPPORT UP. PART
  • 37
    61108130000 BOLT REAR END LOWER PART
    BOLT REAR END LOWER PART
  • 38
    61107140060 SEAT PEG CPL.
    SEAT PEG CPL.
  • 39
    0081500181 SCREW FOR PLASTIC D=5X18
    SCREW FOR PLASTIC D=5X18
  • 41
    58412080100 REFLECTOR YELLOW ONLY FOR AUS+USA
    REFLECTOR YELLOW ONLY FOR AUS+USA
  • 42
    60012081200 LICENCE FITTING
    LICENCE FITTING
  • 43
    0021060003 WASHER DIN9021-A 6,4
    WASHER DIN9021-A 6,4
  • 44
    0985060003 SELF LOCK. NUT DIN0985-M 6
    SELF LOCK. NUT DIN0985-M 6
  • 45
    58412080000 REFLECTOR RED LC4
    REFLECTOR RED LC4
  • 46
    0966050163 OVAL HEAD SCREW DIN0966-M 5X16
    OVAL HEAD SCREW DIN0966-M 5X16
  • 47
    40006006000 WASHER 6MM
    WASHER 6MM
  • 48
    58412080050 BRACKET FOR REFLECTOR
    BRACKET FOR REFLECTOR
  • 49
    0125050003 WASHER DIN0125-A 5,3
    WASHER DIN0125-A 5,3
  • 50
    0985050003 SELF LOCKING NUT DIN0985-M 5
    SELF LOCKING NUT DIN0985-M 5
  • 51
    0017060203 EJOT PT SCREW K60X20 WS=6
    EJOT PT SCREW K60X20 WS=6
  • 52
    6110801000030 FRONT FENDER BLACK
    FRONT FENDER BLACK
  • 53
    0012060164 AH SCREW DIN6912 M6X16 SL
    AH SCREW DIN6912 M6X16 SL
  • 54
    61108045000 SPECIAL WASHER
    SPECIAL WASHER
  • 55
    0984060252 AH SCREW DIN6912 M6X25
    AH SCREW DIN6912 M6X25
  • 56
    60008045000 SPECIAL WASHER D=16,5MM
    SPECIAL WASHER D=16,5MM
  • 57
    61108006100 COLLAR BUSHING 6,2X7,5X12,5
    COLLAR BUSHING 6,2X7,5X12,5
  • 58
    58214069051 RUBBER GROMMET 16X10,8X3
    RUBBER GROMMET 16X10,8X3
  • 59
    16512180100 SIDE REFLECTOR RED REAR ONLY FOR USA
    SIDE REFLECTOR RED REAR ONLY FOR USA
  • 60
    62512081000 BRACKET SIDE REFLECTOR ONLY FOR USA
    BRACKET SIDE REFLECTOR ONLY FOR USA
  • 62
    58607051044 LEVER + SCREW CPL.
    LEVER + SCREW CPL.
  • 63
    61107154000 SUPP. PLATE SEAT LOCK LEVER
    SUPP. PLATE SEAT LOCK LEVER
  • 64
    54603048200 RANGE CHANGE METAL NUT M5
    RANGE CHANGE METAL NUT M5
  • 65
    61108118080 SUPPORT REAR END UP. PART
    SUPPORT REAR END UP. PART
  • 66
    60007050000 SEAT LOCK LC8 ADV.
    SEAT LOCK LC8 ADV.
  • 67
    54603048100 RANGE CHANGE METAL NUT M6
    RANGE CHANGE METAL NUT M6
  • 68
    61108118090 SUPPORT PLATE REAR END LOCK
    SUPPORT PLATE REAR END LOCK
  • 69
    61108119080 SUPPORT PLATE CABLE HARNESS
    SUPPORT PLATE CABLE HARNESS
  • 70
    0016040183 SCREW FOR PLASTIC D=4X18
    SCREW FOR PLASTIC D=4X18
  • 71
    0991060253 FLAT HEAD SCREW DIN7991-N7 991-M 6X25
    FLAT HEAD SCREW DIN7991-N7 991-M 6X25
  • 72
    60006001021 DISTANCE RUBBER AIRBOX
    DISTANCE RUBBER AIRBOX
  • 73
    61108129000 BUSHING REAR END LOWER PART
    BUSHING REAR END LOWER PART
  • 79
    61007050050 WASHER TR12.01
    WASHER TR12.01
  • 80
    61007050000 SEAT LOCK
    SEAT LOCK
  • 81
    61007050030 NUT M19 X1 AF36\
    NUT M19 X1 AF36\
  • 82
    61107153100 LATCH SEAT SB-SCHL.
    LATCH SEAT SB-SCHL.
  • 83
    61007050010 WASHER AF150
    WASHER AF150
  • 84
    61007050020 SCREW M4 AF32
    SCREW M4 AF32
  • 85
    40011166100 KEY BLANK LC4/DUKE/LC8
    KEY BLANK LC4/DUKE/LC8
  • 86
    61107149000 BRACKET SEAT SUPPORT
    BRACKET SEAT SUPPORT
  • 87
    50308052000 BUSH FOR SPOILER 6X11X16X5 MM
    BUSH FOR SPOILER 6X11X16X5 MM
  • 89
    58407040060 PLUG FOR R SEAT
    PLUG FOR R SEAT
