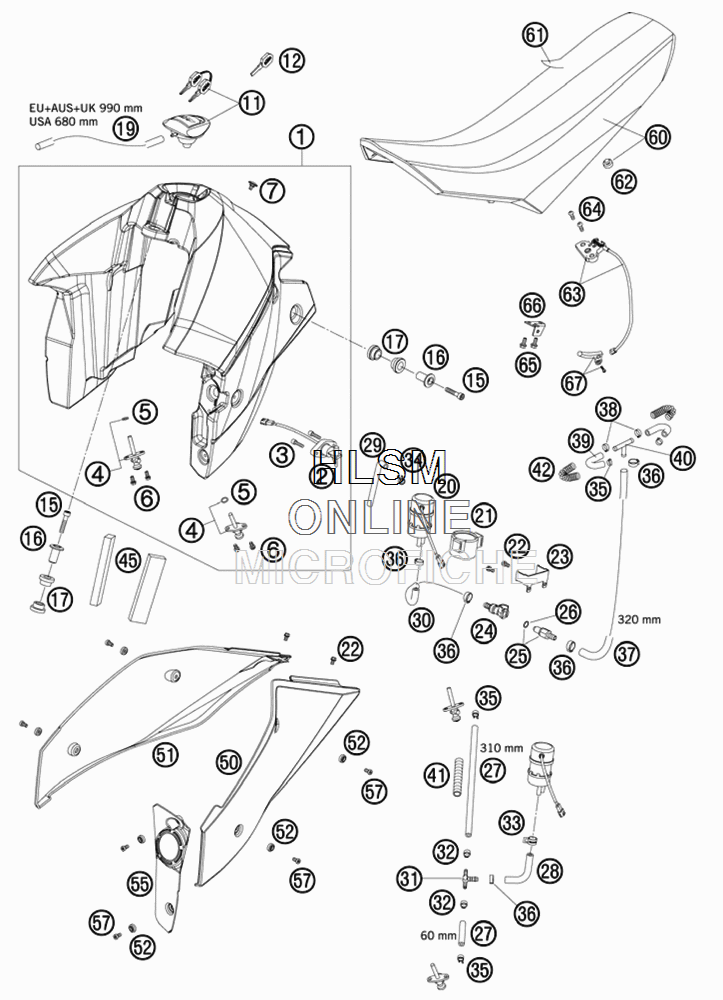

TANK SEAT COVER для Ktm 950 SMR AUS/UK - 2008 года выпуска
-
№АртикулНазвание
-
16300711300033A FUEL TANK BLACK MATTFUEL TANK BLACK MATT
-
258207080100 GAS-LEVEL SENSOR ADV.GAS-LEVEL SENSOR ADV.
-
30912050163 AH SCREW DIN0912-M 5X16AH SCREW DIN0912-M 5X16
-
458507003000 FUEL COCK CPL. SMALL RALLYEFUEL COCK CPL. SMALL RALLYE
-
555007006200 O-RING 11X1,8 NBR 70O-RING 11X1,8 NBR 70
-
6*0025060166 HH COLLAR SCREW M6X16 TX30HH COLLAR SCREW M6X16 TX30
-
758407011100 SCREW FOR SEAT M6X11,5/8SCREW FOR SEAT M6X11,5/8
-
1158407008200 TANK PLUGTANK PLUG
-
1240011166100 KEY BLANK LC4/DUKE/LC8KEY BLANK LC4/DUKE/LC8
-
150912080403 AH SCREW DIN912 M8X40AH SCREW DIN912 M8X40
-
1661007060000 BEARING BUSHING OUTSIDEBEARING BUSHING OUTSIDE
-
1761007065000 TANK RUBBER BUSHING FRONTTANK RUBBER BUSHING FRONT
-
1960007026001 HOSE NBR 5,4X9,4 PER METERHOSE NBR 5,4X9,4 PER METER
-
2060012088100 FUEL PUMPFUEL PUMP
-
2160012088050 FUEL PUMP HOLDERFUEL PUMP HOLDER
-
22*0024060106 HH COLLAR SCREW M6X10 TX30HH COLLAR SCREW M6X10 TX30
-
2362512071000 SUPPORT FUEL PUMPSUPPORT FUEL PUMP
-
245850701050030 CLUTCH CPC BLACKCLUTCH CPC BLACK
-
255850701030030 PLUG CPC BLACKPLUG CPC BLACK
-
2658507012000 O-RING VITON F. PLUG CPCO-RING VITON F. PLUG CPC
-
2760007116001 HOSE 6X12 PER METERHOSE 6X12 PER METER
-
2862507016070 FUEL HOSEFUEL HOSE
-
2950307016000 FUEL PREFORMED HOSE SXFUEL PREFORMED HOSE SX
-
3062507016060 FUEL HOSEFUEL HOSE
-
3160007015100 T-CONNECTOR 6-6-8 MMT-CONNECTOR 6-6-8 MM
-
3258007117200 OETIKER HOSE CLAMP 13,3MMOETIKER HOSE CLAMP 13,3MM
-
3300049140121 CLAMP STD DN14CLAMP STD DN14
-
3458007117000 YDNAC-CLAMP 10107 10MMYDNAC-CLAMP 10107 10MM
-
3558031005000 CLAMP YDNAC 10128 12MMCLAMP YDNAC 10128 12MM
-
3600050153706 VARIABLE ONE-EAR CLAMP 15,3MMVARIABLE ONE-EAR CLAMP 15,3MM
-
3760007016001 HOSE 7,5X13,5 PER METERHOSE 7,5X13,5 PER METER
-
3800050140706 VARIABLE ONE-EAR CLAMP 14,0MMVARIABLE ONE-EAR CLAMP 14,0MM
-
3960007016000 FUEL PREFORMED HOSEFUEL PREFORMED HOSE
-
4060007015000 T-CONNECTOR 8MMT-CONNECTOR 8MM
-
4162507016050 THERMAL PROTECTION L=105MMTHERMAL PROTECTION L=105MM
-
4260007016050 PROTECTION SPRING FUEL HOSEPROTECTION SPRING FUEL HOSE
-
4562507033000 FOAM 150X35X15FOAM 150X35X15
-
506300805000030A SPOILER L/S BLACK WITH DECAL - OVER-PAINTEDSPOILER L/S BLACK WITH DECAL - OVER-PAINTED
-
516300805100030A SPOILER R/S BLACK WITH DECAL - OVER-PAINTEDSPOILER R/S BLACK WITH DECAL - OVER-PAINTED
-
5260008045000 SPECIAL WASHER D=16,5MMSPECIAL WASHER D=16,5MM
-
5563008070000 TANK COVER L/STANK COVER L/S
-
570012060123 AH SCREW DIN6912 M6X12AH SCREW DIN6912 M6X12
-
606300704000004 SEAT BLACK/ORANGESEAT BLACK/ORANGE
-
616300704005004 SEAT COVER BLACK/ORANGESEAT COVER BLACK/ORANGE
-
6261007040010 DISTANCE RUBBER SEATDISTANCE RUBBER SEAT
-
6363007050044 SEAT LOCKSEAT LOCK
-
640738060181 COU.SUNK SCR. AH ISO7380 M6X18COU.SUNK SCR. AH ISO7380 M6X18
-
65*0025050126 HH COLLAR SCREW M5X12 TX30HH COLLAR SCREW M5X12 TX30
-
6663008053000 BRACKET FOR SEAT LOCKBRACKET FOR SEAT LOCK
-
6758607051000 SEAT LOCK LEVER CPL.SEAT LOCK LEVER CPL.
