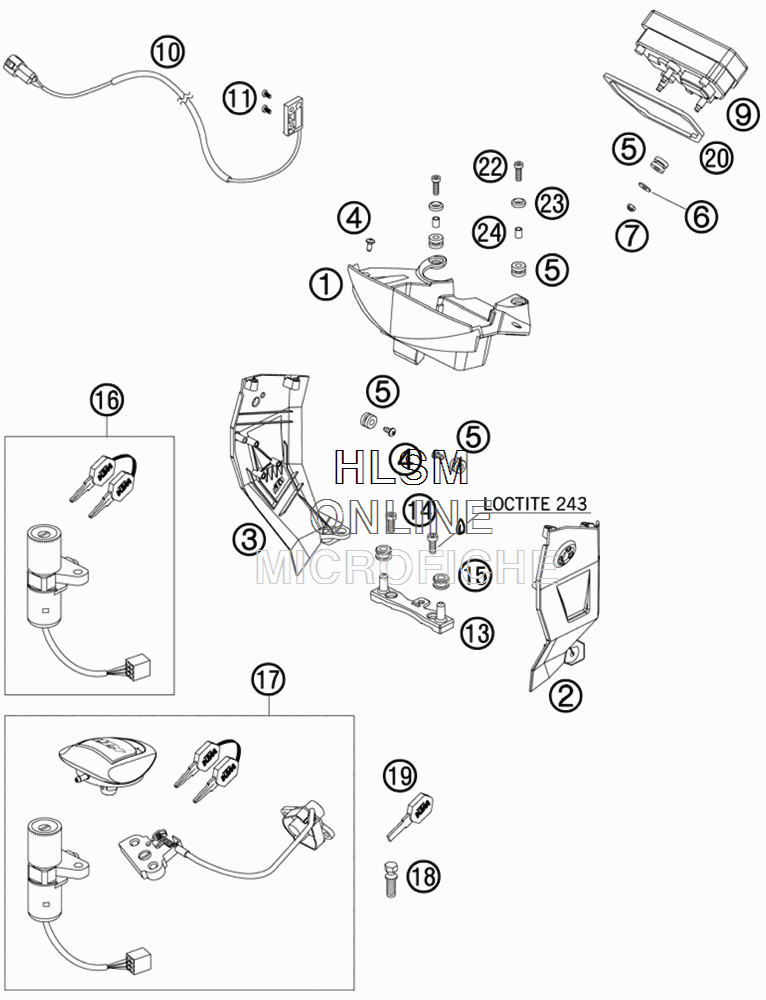

SPEEDOMETER для Ktm 950 SMR AUS/UK - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    62514061000 SPEEDOMETER BRACKET
    SPEEDOMETER BRACKET
  • 2
    62514062000 MASK BRACKET L/S
    MASK BRACKET L/S
  • 3
    62514063000 MASK BRACKET R/S
    MASK BRACKET R/S
  • 4
    0016050121 SCREW FOR PLASTIC 50X12
    SCREW FOR PLASTIC 50X12
  • 5
    58214069051 RUBBER GROMMET 16X10,8X3
    RUBBER GROMMET 16X10,8X3
  • 6
    0021050003 WASHER DIN9021-A 5,3
    WASHER DIN9021-A 5,3
  • 7
    0985050003 SELF LOCKING NUT DIN0985-M 5
    SELF LOCKING NUT DIN0985-M 5
  • 9
    61014069000 DIGITAL SPEEDOMETER
    DIGITAL SPEEDOMETER
  • 10
    62514068100 SPEEDOMETER SENSOR
    SPEEDOMETER SENSOR
  • 11
    0084040083 CYL.HEAD SCREW DIN0084-M 4X8 A
    CYL.HEAD SCREW DIN0084-M 4X8 A
  • 13
    62514064000 MASK SUPPORT BOTTOM
    MASK SUPPORT BOTTOM
  • 14
    0984060163 AH SCREW DIN6912-M 6X16
    AH SCREW DIN6912-M 6X16
  • 15
    60039030000 VIBRATION DAMPER DIGITALBOX
    VIBRATION DAMPER DIGITALBOX
  • 16
    58411066100 IGNITION LOCK
    IGNITION LOCK
  • 17
    62511066044 LOCK SYSTEM
    LOCK SYSTEM
  • 18
    60011064000 TAMPERPROOF SCREW F. IGN. LOCK
    TAMPERPROOF SCREW F. IGN. LOCK
  • 19
    40011166100 KEY BLANK LC4/DUKE/LC8
    KEY BLANK LC4/DUKE/LC8
  • 20
    60014068000 DAMPING RING TACHOMETER
    DAMPING RING TACHOMETER
  • 22
    0984060252 AH SCREW DIN6912 M6X25
    AH SCREW DIN6912 M6X25
  • 23
    60008045000 SPECIAL WASHER D=16,5MM
    SPECIAL WASHER D=16,5MM
  • 24
    62514037000 SPACER BUSHING 6,2X7,5X10,3
    SPACER BUSHING 6,2X7,5X10,3
