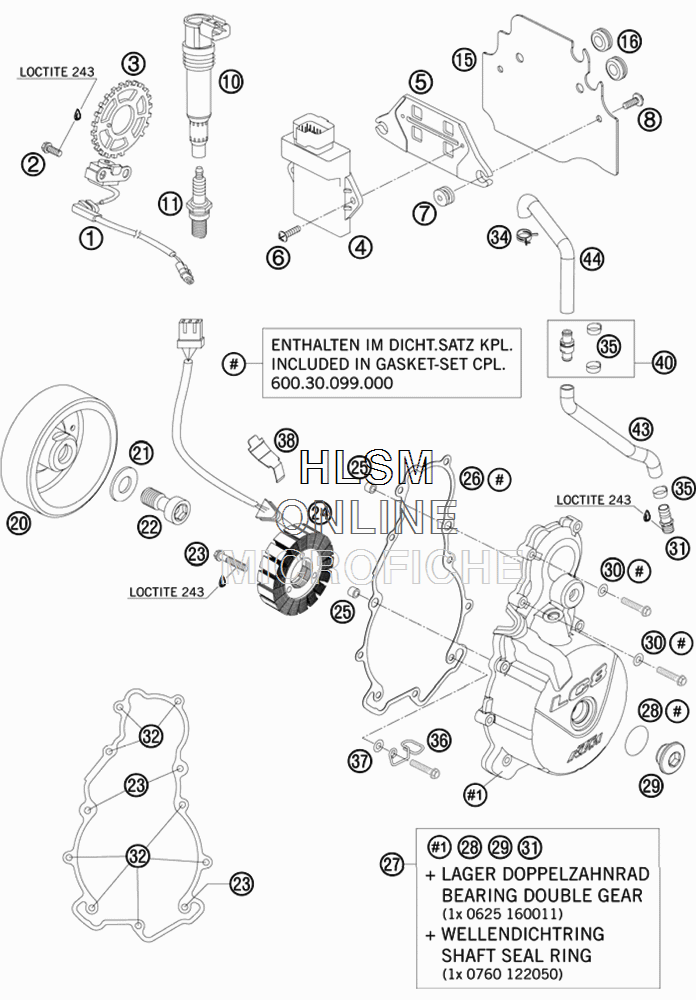

IGNITION SYSTEM для Ktm 950 SMR AUS/UK - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    60039034100 PULSE GENERATOR LC8
    PULSE GENERATOR LC8
  • 2
    0015060163 HH COLLAR SCREW M 6X16 WS=8
    HH COLLAR SCREW M 6X16 WS=8
  • 3
    60039020100 TRIGGER WHEEL
    TRIGGER WHEEL
  • 4
    62539031000 DIGITALBOX 950SM
    DIGITALBOX 950SM
  • 5
    60039028000 ADAPTER PLATE DIGITALBOX
    ADAPTER PLATE DIGITALBOX
  • 6
    0081500181 SCREW FOR PLASTIC D=5X18
    SCREW FOR PLASTIC D=5X18
  • 7
    60039030000 VIBRATION DAMPER DIGITALBOX
    VIBRATION DAMPER DIGITALBOX
  • 8
    0023060123 COLLAR SCREW M6X12 TX
    COLLAR SCREW M6X12 TX
  • 10
    60039006000 STICK COIL
    STICK COIL
  • 11
    59039093000 SPARK PLUG CR8EK
    SPARK PLUG CR8EK
  • 15
    63003082000 COVER PLATE
    COVER PLATE
  • 16
    41001052000 RUBBER SLEEVE D=12MM
    RUBBER SLEEVE D=12MM
  • 20
    60039005100 IGNITION ROTOR INCL. FREEWHEEL
    IGNITION ROTOR INCL. FREEWHEEL
  • 21
    60039040010 WASHER 17X32X4
    WASHER 17X32X4
  • 22
    60039003000 AH EXPAND. SCREW M16X35 8.8
    AH EXPAND. SCREW M16X35 8.8
  • 22
    60039003100 AH EXPAND. SCREW M16X1,5
    AH EXPAND. SCREW M16X1,5
  • 23
    0015060353 HH COLLAR SCREW M 6X35 WS=8
    HH COLLAR SCREW M 6X35 WS=8
  • 24
    60039004000 STATOR
    STATOR
  • 25
    49030090000 DOWEL 9,8 X 7 X 10
    DOWEL 9,8 X 7 X 10
  • 26
    60030040100 IGNIT.COVER GASK.MATRI.CS0,5MM
    IGNIT.COVER GASK.MATRI.CS0,5MM
  • 27
    60030002144 IGNITION COVER CPL.
    IGNITION COVER CPL.
  • 28
    0770024025 O-RING 24X2,5 NBR
    O-RING 24X2,5 NBR
  • 29
    6003009400023 SCREW PLUG M24X1,5 PA 6.6
    SCREW PLUG M24X1,5 PA 6.6
  • 30
    0603061001 CU-SEAL RING DIN7603-6X10X1
    CU-SEAL RING DIN7603-6X10X1
  • 31
    60030022000 VENTILATION CONNECTOR M16X1,5
    VENTILATION CONNECTOR M16X1,5
  • 32
    0015060303 HH COLLAR SCREW M 6X30 SW=8
    HH COLLAR SCREW M 6X30 SW=8
  • 34
    00049220121 CLAMP STD DN22
    CLAMP STD DN22
  • 35
    00050226706 VARIABLE ONE-EAR CLAMP 22,6MM
    VARIABLE ONE-EAR CLAMP 22,6MM
  • 36
    60011094000 CABLE SUPPORT
    CABLE SUPPORT
  • 37
    0125060003 WASHER DIN0125-A 6,4
    WASHER DIN0125-A 6,4
  • 38
    60039040020 CABLE SUPPORT GENERATOR
    CABLE SUPPORT GENERATOR
  • 40
    60030090344 BACK-PRESSURE VALVE CPL.
    BACK-PRESSURE VALVE CPL.
  • 43
    60030087101 ENGINE BREATHER HOSE BOTTOM
    ENGINE BREATHER HOSE BOTTOM
  • 44
    60030087102 ENGINE BREATHER HOSE TOP
    ENGINE BREATHER HOSE TOP
