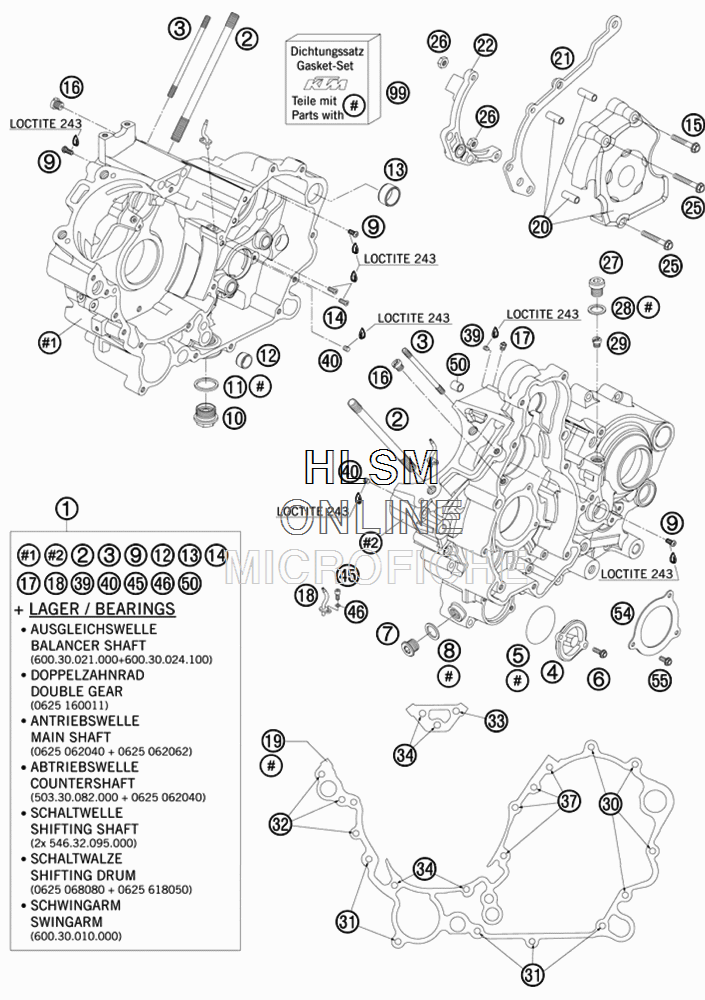

ENGINE CASE для Ktm 950 SMR AUS/UK - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    60030000144 ENGINE CASE CPL. W.BEARINGS
    ENGINE CASE CPL. W.BEARINGS
  • 2
    60030043100 STUD M10X161
    STUD M10X161
  • 3
    60030043010 STUD M 6X101 10.9
    STUD M 6X101 10.9
  • 4
    59038041000 OIL FILTER COVER RACING
    OIL FILTER COVER RACING
  • 5
    0770400025 O-RING 40,00X2,50 NBR 70
    O-RING 40,00X2,50 NBR 70
  • 6
    0015050163 HH COLLAR SCREW M 5X16 WS=8
    HH COLLAR SCREW M 5X16 WS=8
  • 7
    60038033050 PLUG SCREW M14X1,5 ALU AH
    PLUG SCREW M14X1,5 ALU AH
  • 8
    0603142016 CU-SEAL RING 14X20X1,5 LC8
    CU-SEAL RING 14X20X1,5 LC8
  • 9
    0018050103 INT. TORX OVAL HEAD M 5X10 8.8
    INT. TORX OVAL HEAD M 5X10 8.8
  • 10
    58038019050 DRAIN PLUG W. MAGNET
    DRAIN PLUG W. MAGNET
  • 11
    58038017100 CU-SEAL RING DIN7603-22X27X2
    CU-SEAL RING DIN7603-22X27X2
  • 12
    58330023000 DOWEL 17 X 14 X 9,5
    DOWEL 17 X 14 X 9,5
  • 13
    60030023000 DOWEL 20,1X24X12
    DOWEL 20,1X24X12
  • 14
    0019050103 INT. TORX FLAT HEAD M 5X10 8.8
    INT. TORX FLAT HEAD M 5X10 8.8
  • 15
    0015060303 HH COLLAR SCREW M 6X30 SW=8
    HH COLLAR SCREW M 6X30 SW=8
  • 16
    59030054000 JET 60 DELLORTO M6X0,75
    JET 60 DELLORTO M6X0,75
  • 17
    60030063070 OIL JET 70 M5
    OIL JET 70 M5
  • 18
    60030064000 OIL INJECT.TUBE CURVED "70"
    OIL INJECT.TUBE CURVED "70"
  • 19
    60030039100 ENGINE CASE GASKET 0,5MM
    ENGINE CASE GASKET 0,5MM
  • 20
    60030060044 CHAIN SPROCKET COVER CPL.
    CHAIN SPROCKET COVER CPL.
  • 21
    60030047000 CHAIN FAIL. PROTECTION LC8
    CHAIN FAIL. PROTECTION LC8
  • 22
    60032063000 ADAPTER F. HYDR. CLUTCH
    ADAPTER F. HYDR. CLUTCH
  • 25
    0015060353 HH COLLAR SCREW M 6X35 WS=8
    HH COLLAR SCREW M 6X35 WS=8
  • 26
    0985060003 SELF LOCK. NUT DIN0985-M 6
    SELF LOCK. NUT DIN0985-M 6
  • 27
    49030029000 OIL DRAIN PLUG M10X1,5 AH-WS=6
    OIL DRAIN PLUG M10X1,5 AH-WS=6
  • 28
    0603100141 COPPER GASKET DIN7603-10X14X1
    COPPER GASKET DIN7603-10X14X1
  • 29*
    60038029200 REDUCING JET "30" M6X0,75
    REDUCING JET "30" M6X0,75
  • 30
    0015060403 HH COLLAR SCREW M 6X40 WS=8
    HH COLLAR SCREW M 6X40 WS=8
  • 31
    0015060603 HH COLLAR SCREW M 6X60 WS=8
    HH COLLAR SCREW M 6X60 WS=8
  • 32
    0015060653 HH COLLAR SCREW M 6X65 WS=8
    HH COLLAR SCREW M 6X65 WS=8
  • 33
    0015060703 HH COLLAR SCREW M 6X70 WS=8
    HH COLLAR SCREW M 6X70 WS=8
  • 34
    0015060753 HH COLLAR SCREW M 6X75 WS=8
    HH COLLAR SCREW M 6X75 WS=8
  • 37
    0015060903 HH COLLAR SCREW M 6X90 WS=8
    HH COLLAR SCREW M 6X90 WS=8
  • 39
    0916050042 THREAD PIN DIN916 M5X4-45H
    THREAD PIN DIN916 M5X4-45H
  • 40
    0551060050 THREAD PIN DIN0551-M 6X 5
    THREAD PIN DIN0551-M 6X 5
  • 45
    0912040103 AH.SCREW DIN0912-M 4X10
    AH.SCREW DIN0912-M 4X10
  • 46
    0770035020 O-RING 3,5X2,00 NBR
    O-RING 3,5X2,00 NBR
  • 50
    49030090000 DOWEL 9,8 X 7 X 10
    DOWEL 9,8 X 7 X 10
  • 54
    60030084000 BRACKET FOR BEARING INSERT
    BRACKET FOR BEARING INSERT
  • 55
    0015050123 HH COLLAR SCREW M 5X12 WS=8
    HH COLLAR SCREW M 5X12 WS=8
  • 99
    60030099000 GASKET SET CPL.
    GASKET SET CPL.
