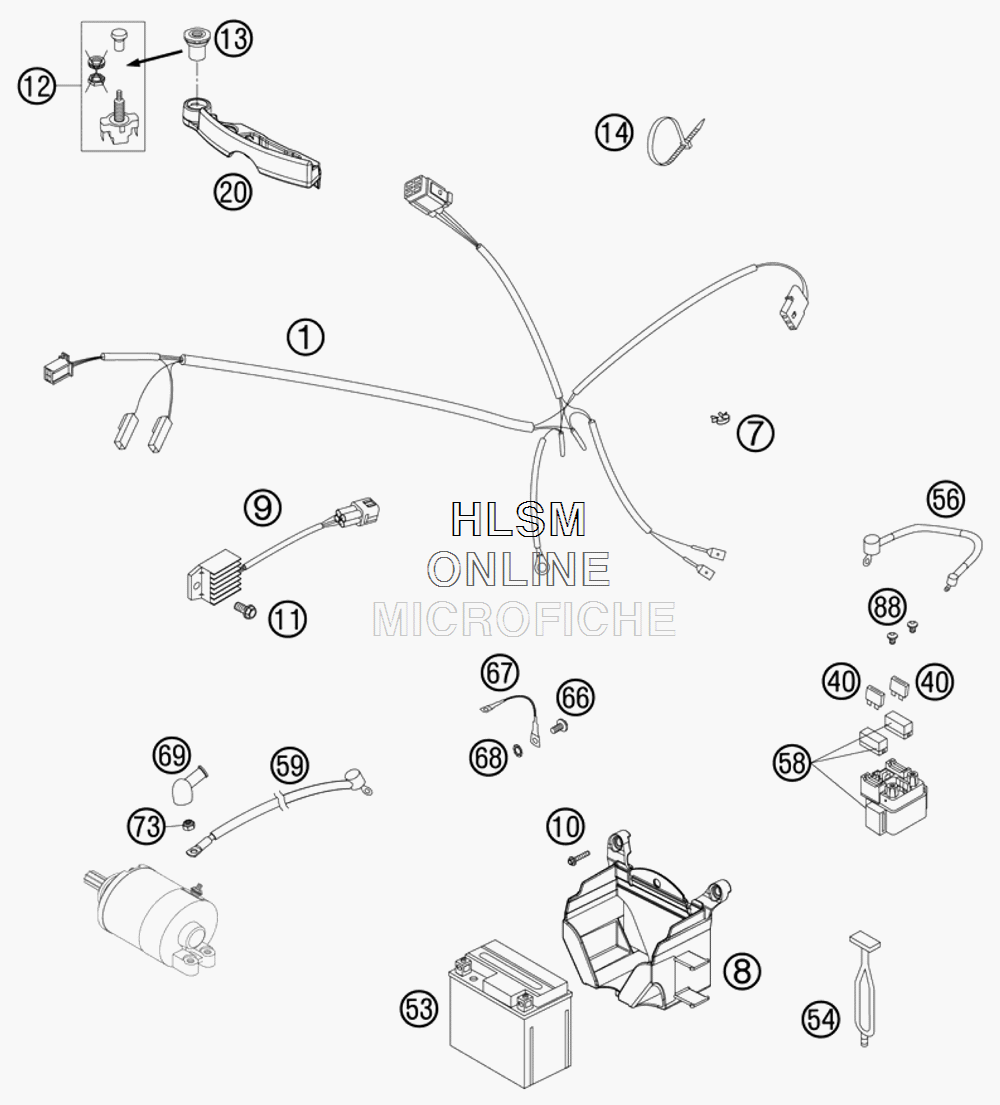

WIRING HARNESS для Ktm 250 XC-W - 2008 года выпуска
-
№АртикулНазвание
-
159411075100 WIRING HARNESS RACING USAWIRING HARNESS RACING USA
-
757013072100 WIRING HOLDER 16MMWIRING HOLDER 16MM
-
877311055000 BATTERY CASINGBATTERY CASING
-
980011034000 VOLTAGE REGULATORVOLTAGE REGULATOR
-
100017060203 EJOT PT SCREW K60X20EJOT PT SCREW K60X20
-
110025060106 HH COLLAR SCREW M6X10HH COLLAR SCREW M6X10
-
1255011599000 PULL SWITCH LOOSEPULL SWITCH LOOSE
-
1354814060050 SPEC. NUT F. PULL SWITCHSPEC. NUT F. PULL SWITCH
-
1444011076200 CABLE TIE 200/3,6MM BLACKCABLE TIE 200/3,6MM BLACK
-
1444011076305 CABLE TIE 300/4,8MM BLACKCABLE TIE 300/4,8MM BLACK
-
2054814060100 SPEEDOMETER BRACKET XC-WSPEEDOMETER BRACKET XC-W
-
4058011109110 FUSE 10 AFUSE 10 A
-
5377311053000 BATTERY 12V 4AHBATTERY 12V 4AH
-
5450303018000 RUBBERRUBBER
-
5658711086000 WIRING HARNESS BATTERY DUKEWIRING HARNESS BATTERY DUKE
-
5858211058000 STARTER RELAY 12VSTARTER RELAY 12V
-
5955111059000 STARTERCABLE 1100MMSTARTERCABLE 1100MM
-
660025060106 HH COLLAR SCREW M6X10HH COLLAR SCREW M6X10
-
6758411097100 GROUND CABLEGROUND CABLE
-
6858411098100 CONTACT WASHER M6 VSV-K6CONTACT WASHER M6 VSV-K6
-
6958440099000 PROTECTION CAP F. STARTER ENG.PROTECTION CAP F. STARTER ENG.
-
730985060003 SELF LOCK. NUT DIN0985-M 6SELF LOCK. NUT DIN0985-M 6
-
880902060083 AH OVAL SCREW ISO 7380 M 6X8AH OVAL SCREW ISO 7380 M 6X8
