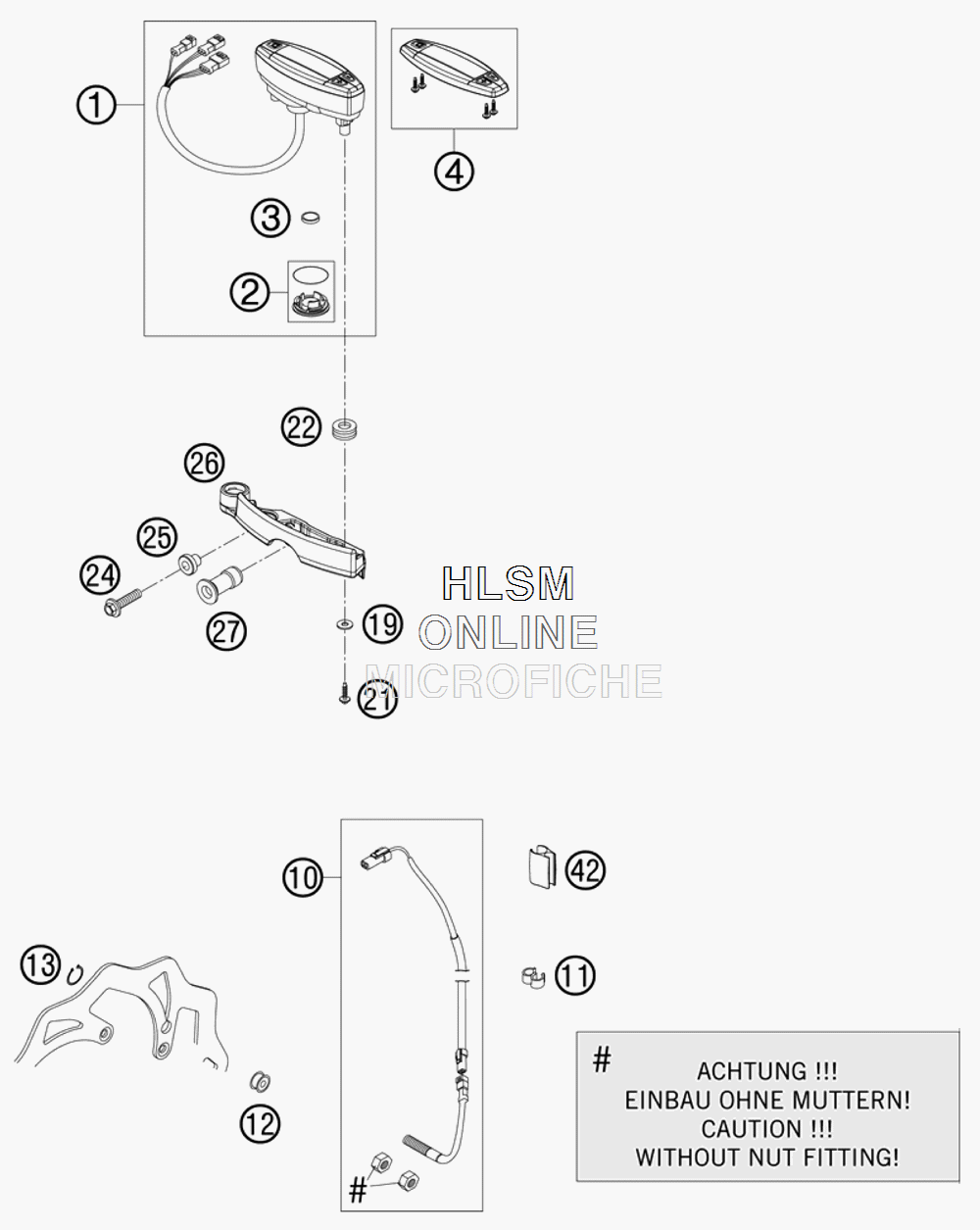

INSTRUMENTS / LOCK SYSTEM для Ktm 250 XC-W - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    54814069000 SPEEDOMETER KM/H F. 21'';REPROGRAMMABLE: KM/H
    SPEEDOMETER KM/H F. 21'';REPROGRAMMABLE: KM/H
  • 2
    54814069010 BATTERY COVER F. SPEEDOM.
    BATTERY COVER F. SPEEDOM.
  • 3
    58314068000 BATTERY F. SPEEDOM. M.A.E.
    BATTERY F. SPEEDOM. M.A.E.
  • 4
    54814069020 SPEEDOMETER TOP PART
    SPEEDOMETER TOP PART
  • 10
    54814068100 CABLE FOR DIGITAL SPEEDOM.
    CABLE FOR DIGITAL SPEEDOM.
  • 11
    55011022100 CLAMP, BLACK
    CLAMP, BLACK
  • 12
    54814069050 MAGNET FOR DIGITAL SPEEDOM.
    MAGNET FOR DIGITAL SPEEDOM.
  • 13
    0471009104 CIRCLIP DIN0471- 9X1
    CIRCLIP DIN0471- 9X1
  • 19
    0021050003 WASHER DIN9021-A 5,3
    WASHER DIN9021-A 5,3
  • 21
    0081050121 SCREW FOR PLASTIC K50X12
    SCREW FOR PLASTIC K50X12
  • 22
    58214069051 RUBBER GROMMET 16X10,8X3
    RUBBER GROMMET 16X10,8X3
  • 24
    0024060206 HH COLLAR SCREW M6X20
    HH COLLAR SCREW M6X20
  • 25
    59030060050 BUSHING F. SPROCKET COVER RAC.
    BUSHING F. SPROCKET COVER RAC.
  • 26
    54814060100 SPEEDOMETER BRACKET XC-W
    SPEEDOMETER BRACKET XC-W
  • 27
    54814060051 SPACER TUBE SPEEDOM. XC-W
    SPACER TUBE SPEEDOM. XC-W
  • 42
    54813026000 CABLE SUPPORT 10/6MM
    CABLE SUPPORT 10/6MM
