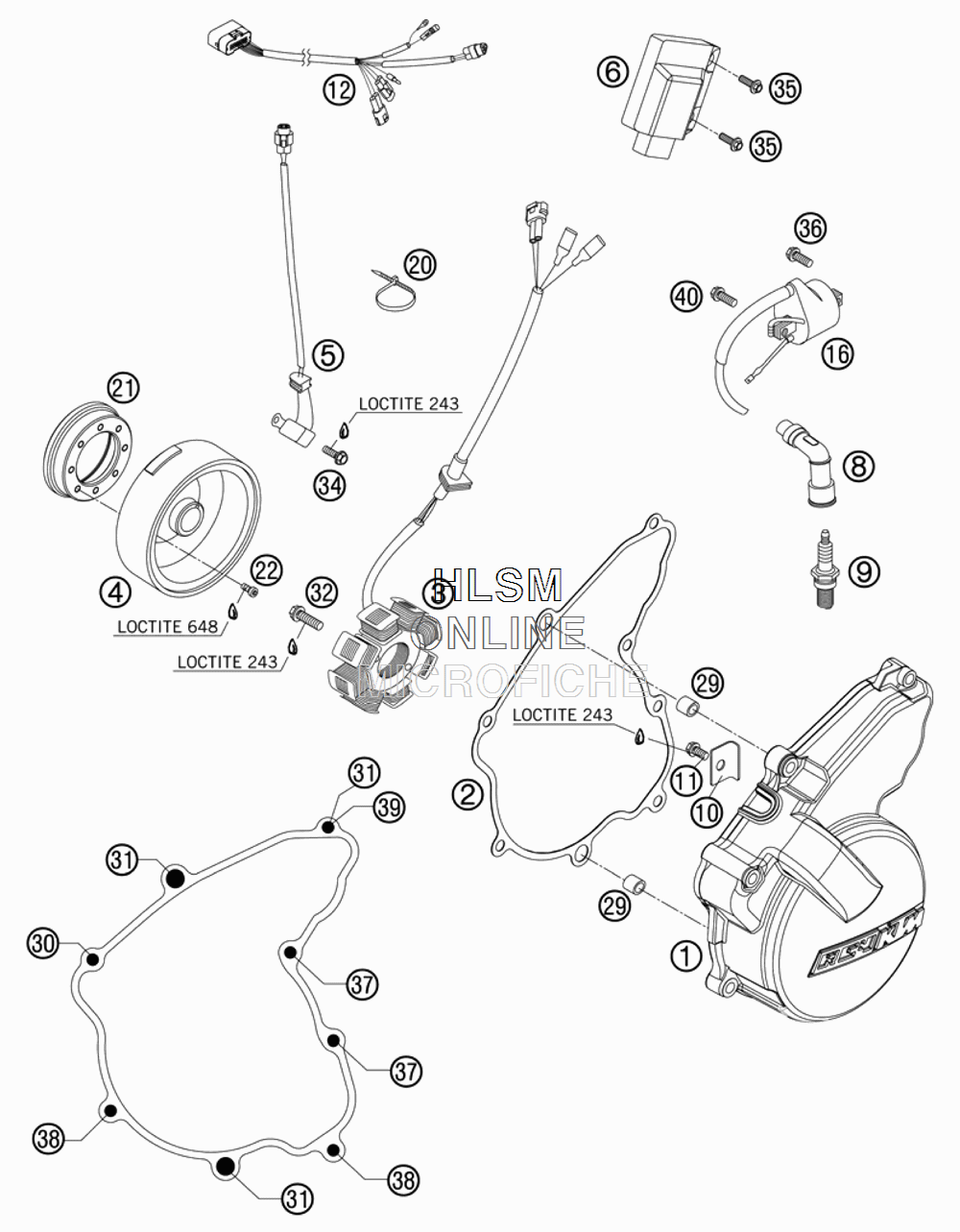

IGNITION SYSTEM для Ktm 250 XC-W - 2008 года выпуска
-
№АртикулНазвание
-
17703010210025 IGNITION COVERIGNITION COVER
-
277030140000 IGNITION COVER GASKET EXC-FIGNITION COVER GASKET EXC-F
-
377039104000 STATORSTATOR
-
477039105100 FLYWHEELFLYWHEEL
-
577039134000 PULSER COILPULSER COIL
-
677039031600 CDI UNIT 250 SX-FCDI UNIT 250 SX-F
-
859039090100 SPARK PLUG CONNECT. VD05EGSPARK PLUG CONNECT. VD05EG
-
977039093000 SPARK PLUG NGK CR9EKBSPARK PLUG NGK CR9EKB
-
1077030002050 WIRE RETAINING BRACKETWIRE RETAINING BRACKET
-
110015060083 HH COLLAR SCREW M 6X8HH COLLAR SCREW M 6X8
-
1259439032100 WIRING HARNESS FOR CDI EXCWIRING HARNESS FOR CDI EXC
-
1659039006000 IGNITIONCOIL KOKUSAN 4K3-A/BIGNITIONCOIL KOKUSAN 4K3-A/B
-
2044011076100 CABLE TIE 100/2,5MM BLACKCABLE TIE 100/2,5MM BLACK
-
2177040025000 FREEWHEEL HUBFREEWHEEL HUB
-
2200120500810 AH SCREW DIN6912-M5X8AH SCREW DIN6912-M5X8
-
2949030090000 DOWEL 9,8 X 7 X 10DOWEL 9,8 X 7 X 10
-
300015060503 HH COLLAR SCREW M 6X50HH COLLAR SCREW M 6X50
-
310015060303 HH COLLAR SCREW M 6X30HH COLLAR SCREW M 6X30
-
320015060203 HH COLLAR SCREW M 6X20HH COLLAR SCREW M 6X20
-
340015050163 HH COLLAR SCREW M 5X16HH COLLAR SCREW M 5X16
-
350024060106 HH COLLAR SCREW M6X10HH COLLAR SCREW M6X10
-
360025060166 HH COLLAR SCREW M6X16HH COLLAR SCREW M6X16
-
370015060253 HH COLLAR SCREW M 6X25HH COLLAR SCREW M 6X25
-
380015060953 HH COLLAR SCREW M 6X95HH COLLAR SCREW M 6X95
-
390603061001 CU-SEAL RING DIN7603-6X10X1CU-SEAL RING DIN7603-6X10X1
-
400025060206 HH COLLAR SCREW M6X20HH COLLAR SCREW M6X20
