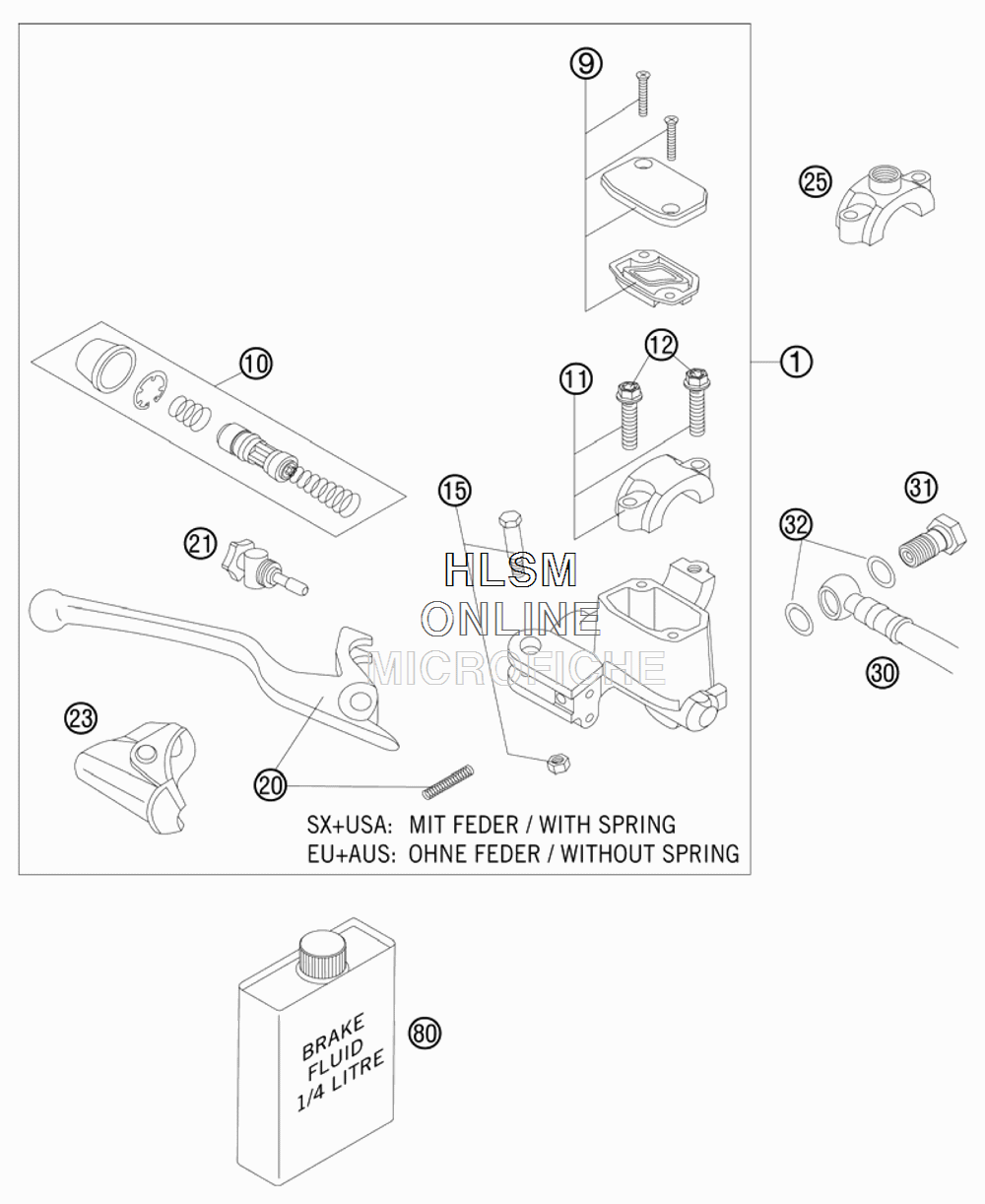

HAND BREAK CYLINDER для Ktm 250 XC-W - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    54813001200 HAND BRAKE CYLINDER CPL. SX
    HAND BRAKE CYLINDER CPL. SX
  • 9
    50313003000 HANDBRAKE CYL.COVER CPL.NATURE
    HANDBRAKE CYL.COVER CPL.NATURE
  • 10
    54813008200 REP.SET PISTON
    REP.SET PISTON
  • 11
    50313005000 CLAMP CPL. NATURE
    CLAMP CPL. NATURE
  • 12
    0025060256 HH COLLAR SCREW M6X25
    HH COLLAR SCREW M6X25
  • 15
    50313006100 LEVER SCREW CPL.
    LEVER SCREW CPL.
  • 20
    54813002100 HAND BRAKE LEVER + SPRING
    HAND BRAKE LEVER + SPRING
  • 21
    54813007200 ADJUSTING SCREW CPL. EXC
    ADJUSTING SCREW CPL. EXC
  • 23
    50313004000 PROTECTION CAP HAND BRAKE CYL.
    PROTECTION CAP HAND BRAKE CYL.
  • 25
    58012040150 CLAMP FOR MIRROW
    CLAMP FOR MIRROW
  • 30
    59013011000 BRAKEHO. FRONT 1300MM
    BRAKEHO. FRONT 1300MM
  • 31
    50213025000 HOLLOW SCREW M10X1X19
    HOLLOW SCREW M10X1X19
  • 32
    0603100141 COPPER GASKET DIN7603-10X14X1
    COPPER GASKET DIN7603-10X14X1
  • 80
    00062030000 BRAKE FLUID DOT5.1 0,25L
    BRAKE FLUID DOT5.1 0,25L
