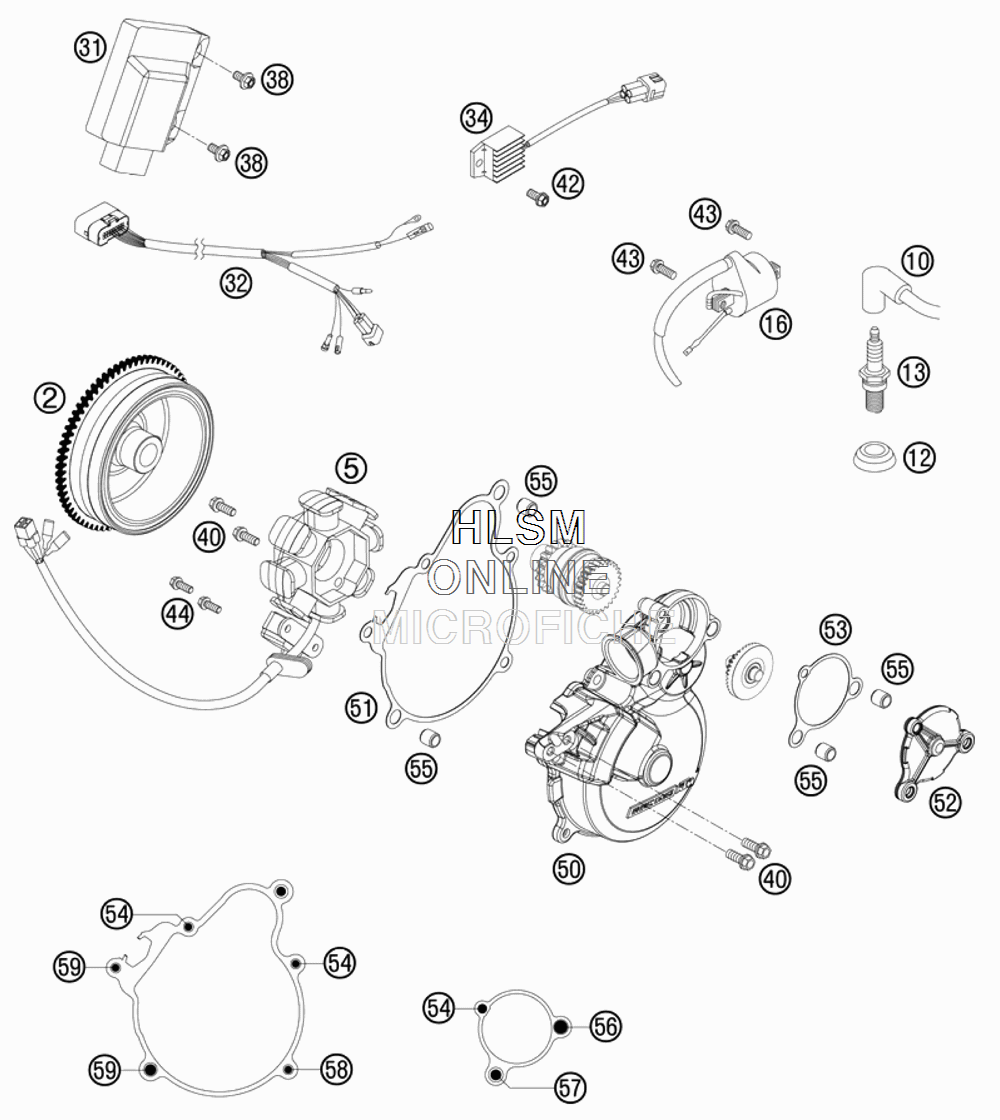

IGNITION SYSTEM для Ktm 250 XC-W - 2008 года выпуска

  • №
    Артикул
    Название
  • 2
    55139005000 FLYWHEEL KOKUSAN
    FLYWHEEL KOKUSAN
  • 5
    55139004000 STATOR KOKUSAN
    STATOR KOKUSAN
  • 10
    47039090000 SPARK PLUG CAP NGK REINFORC.
    SPARK PLUG CAP NGK REINFORC.
  • 12
    50231012000 SEALING CUP FOR SPARK PLUG
    SEALING CUP FOR SPARK PLUG
  • 13
    54739093000 SPARK PLUG NGK BR7ES
    SPARK PLUG NGK BR7ES
  • 16
    59039006000 IGNITIONCOIL KOKUSAN 4K3-A/B
    IGNITIONCOIL KOKUSAN 4K3-A/B
  • 31
    54839031700 CDI UNIT 250 EXC
    CDI UNIT 250 EXC
  • 32
    54839032300 WIRING HARNESS F.CDI 2-ST.SX
    WIRING HARNESS F.CDI 2-ST.SX
  • 34
    80011034000 VOLTAGE REGULATOR
    VOLTAGE REGULATOR
  • 38
    0023060123 COLLAR SCREW M6X12
    COLLAR SCREW M6X12
  • 40
    0015060203 HH COLLAR SCREW M 6X20
    HH COLLAR SCREW M 6X20
  • 42
    0025060106 HH COLLAR SCREW M6X10
    HH COLLAR SCREW M6X10
  • 43
    0025060166 HH COLLAR SCREW M6X16
    HH COLLAR SCREW M6X16
  • 44
    0014050123 HH COLLAR SCREW M 5X12
    HH COLLAR SCREW M 5X12
  • 50
    5513000210033 IGNITION COVER 250 E-START
    IGNITION COVER 250 E-START
  • 51
    55130040000 IGNITI.COVER GASKET
    IGNITI.COVER GASKET
  • 52
    5513004514433 OUTER IGNITION COVER CPL.
    OUTER IGNITION COVER CPL.
  • 53
    55130041100 IGN. OUT SIDE COV. GASKET
    IGN. OUT SIDE COV. GASKET
  • 54
    0015060163 HH COLLAR SCREW M 6X16
    HH COLLAR SCREW M 6X16
  • 55
    49030090000 DOWEL 9,8 X 7 X 10
    DOWEL 9,8 X 7 X 10
  • 56
    0015060703 HH COLLAR SCREW M 6X70
    HH COLLAR SCREW M 6X70
  • 57
    0015060253 HH COLLAR SCREW M 6X25
    HH COLLAR SCREW M 6X25
  • 58
    0015060303 HH COLLAR SCREW M 6X30
    HH COLLAR SCREW M 6X30
  • 59
    0015060353 HH COLLAR SCREW M 6X35
    HH COLLAR SCREW M 6X35
