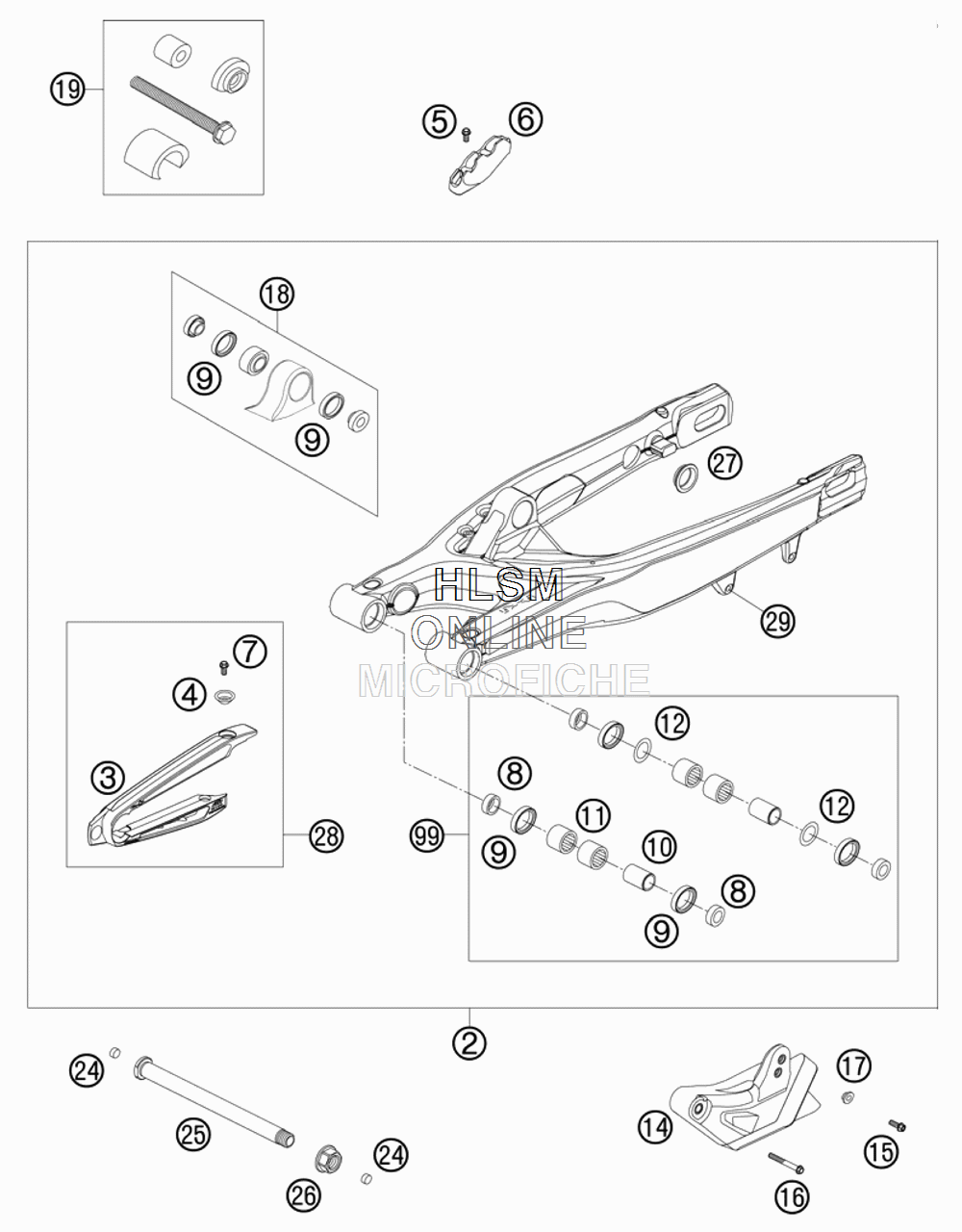

SWING ARM для Ktm 250 XC-W - 2008 года выпуска

  • №
    Артикул
    Название
  • 2
    77304030044 SWINGARM CPL.
    SWINGARM CPL.
  • 3
    77304066000 CHAIN SLIDING PROTECTION
    CHAIN SLIDING PROTECTION
  • 4
    77304066050 BUSHING F. CHAIN SLIDING PR.
    BUSHING F. CHAIN SLIDING PR.
  • 5
    0009050103 SPECIAL SCREW M 5,0X10
    SPECIAL SCREW M 5,0X10
  • 6
    77313047000 BRAKE HOSE GUIDE LOWER
    BRAKE HOSE GUIDE LOWER
  • 7
    0025060106 HH COLLAR SCREW M6X10
    HH COLLAR SCREW M6X10
  • 8
    54804034000 BUCKET F. SHAFT SEAL RING
    BUCKET F. SHAFT SEAL RING
  • 9
    0760253270 SHAFT SEAL RING 25X32X7
    SHAFT SEAL RING 25X32X7
  • 10
    54804032000 BUSHING SLEEVE F. SWING ARM
    BUSHING SLEEVE F. SWING ARM
  • 11
    58033097000 NEEDLE BEARING HK 2216
    NEEDLE BEARING HK 2216
  • 12
    54603036000 STOP DISK 22,2X31,7X1
    STOP DISK 22,2X31,7X1
  • 14
    77304070000 CHAIN GUIDE REAR CPL.
    CHAIN GUIDE REAR CPL.
  • 15
    0025060166 HH COLLAR SCREW M6X16
    HH COLLAR SCREW M6X16
  • 16
    0025060456 HH COLLAR SCREW M6X45
    HH COLLAR SCREW M6X45
  • 17
    77304070130 BUSH. F. CHAIN FAIL. PROT.
    BUSH. F. CHAIN FAIL. PROT.
  • 18
    50304090044 PIVOT BEARING+BUSHES PDS
    PIVOT BEARING+BUSHES PDS
  • 19
    50329000044 TOOL BEARING MOUNTING PDS
    TOOL BEARING MOUNTING PDS
  • 24
    55009086000 PLUG SFL13
    PLUG SFL13
  • 25
    77304037000 SWINGARM BOLT M16X1,5
    SWINGARM BOLT M16X1,5
  • 26
    54804038000 SELF LOCK.NUT M16X1,5
    SELF LOCK.NUT M16X1,5
  • 27
    58404041100 CLOSING COVER ROUND
    CLOSING COVER ROUND
  • 28
    77304066010 CHAIN GUARD CPL.
    CHAIN GUARD CPL.
  • 29
    54603055051 PRESS IN NUT M6 STEEL ZINC
    PRESS IN NUT M6 STEEL ZINC
  • 99
    54804230210 SWINGARM REPAIR KIT 05-07
    SWINGARM REPAIR KIT 05-07
