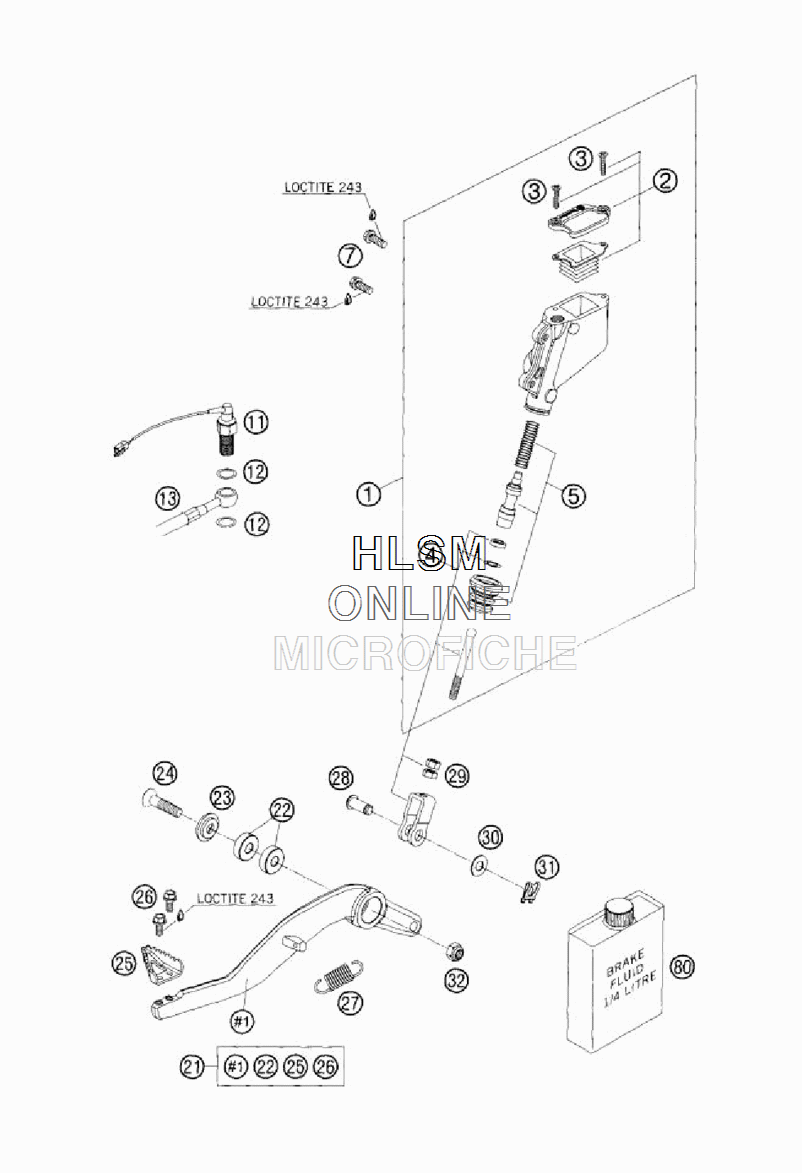

REAR BRAKE CONTROL для Ktm 950 ADVENTURE - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    60013060000 MAIN BRAKE CYLINDER CPL.
    MAIN BRAKE CYLINDER CPL.
  • 2
    60013059000 COVER MAIN BRAKE CYLINDER CPL.
    COVER MAIN BRAKE CYLINDER CPL.
  • 3
    0965040161 FLAT HEAD SCREW DIN0965-M 4X16
    FLAT HEAD SCREW DIN0965-M 4X16
  • 4
    60013056044 PUSH ROD CPL.
    PUSH ROD CPL.
  • 5
    60013061000 REPAIR KIT PISTON
    REPAIR KIT PISTON
  • 7
    59009062016 SPECIAL SCREW M6X167 WS=8 10.9
    SPECIAL SCREW M6X167 WS=8 10.9
  • 11
    50311051100 BRAKE LIGHT SWITCH REAR
    BRAKE LIGHT SWITCH REAR
  • 12
    42013226000 CU-SEAL RING DIN7603-10X16X1
    CU-SEAL RING DIN7603-10X16X1
  • 13
    60013072000 BRAKE HOSE REAR
    BRAKE HOSE REAR
  • 21
    60013050044 FOOT BRAKE LEVER CPL.
    FOOT BRAKE LEVER CPL.
  • 22
    0625006087 GROOVED BALL BEAR. 608 2RS C3
    GROOVED BALL BEAR. 608 2RS C3
  • 23
    60003061000 SPECIAL WASHER ALU 8X24MM
    SPECIAL WASHER ALU 8X24MM
  • 25
    60013051000 STEP PLATE FOOT BRAKE LEVER
    STEP PLATE FOOT BRAKE LEVER
  • 26
    0015050123 HH COLLAR SCREW M 5X11 WS=8
    HH COLLAR SCREW M 5X11 WS=8
  • 27
    54603062000 RETURN SPRING FOR BRAKE LEVER
    RETURN SPRING FOR BRAKE LEVER
  • 29
    0934060003 HEXAGON NUT DIN0934-M 6
    HEXAGON NUT DIN0934-M 6
  • 30
    0125080003 WASHER DIN0125-A 8,4
    WASHER DIN0125-A 8,4
  • 31
    60013058000 SECURING CLIP D=8MM
    SECURING CLIP D=8MM
  • 32
    0985080003 SELF LOCKING NUT DIN0985-M 8
    SELF LOCKING NUT DIN0985-M 8
  • 80
    306054 BRAKE FLUID DOT 5.1
    BRAKE FLUID DOT 5.1
