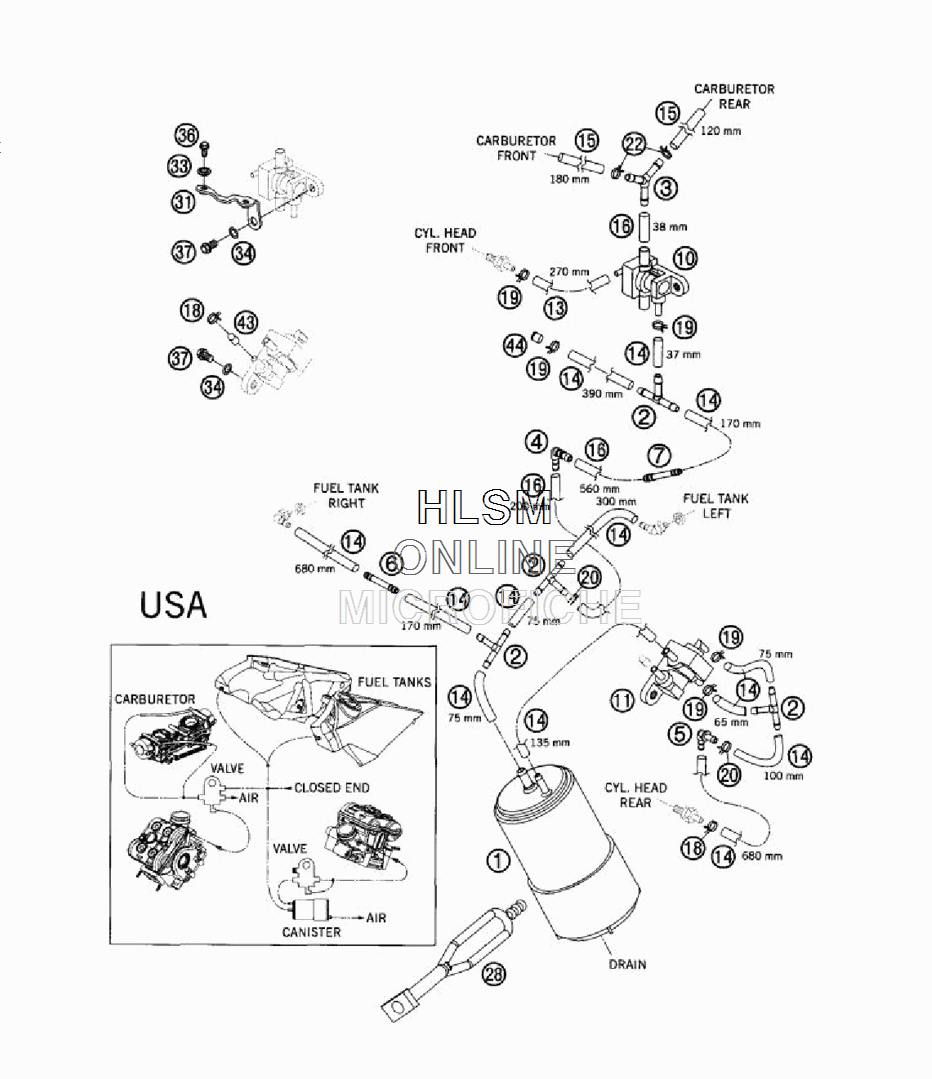

EVAPORATIVE CANISTER для Ktm 950 ADVENTURE - 2005 года выпуска`
-
№АртикулНазвание
-
158715001000 EVAP. CANISTER FILTER TYPE AK47EVAP. CANISTER FILTER TYPE AK47
-
260015022000 T-CONNECTOR TS-6T-CONNECTOR TS-6
-
360015025000 Y-CONNECTING PIECE YS 6-8-6Y-CONNECTING PIECE YS 6-8-6
-
460015024000 ANGLE CONNECTION WS8ANGLE CONNECTION WS8
-
560035068000 ANGLE CONNECTION EXPANS. TANKANGLE CONNECTION EXPANS. TANK
-
660015021000 HOSE CONNECTOR GS6HOSE CONNECTOR GS6
-
760015023000 REDUCTION CONNECTION GRS8-6REDUCTION CONNECTION GRS8-6
-
1060015030000 VALVE MIKUNI CI-41-04VALVE MIKUNI CI-41-04
-
1160015031000 VALVE MIKUNI CI-41-05VALVE MIKUNI CI-41-05
-
1360031098001 HOSE 3,2X8,5 PER METERHOSE 3,2X8,5 PER METER
-
1460007026001 HOSE NBR 5,4X9,4 PER METERHOSE NBR 5,4X9,4 PER METER
-
1560007116001 HOSE 6X12 PER METERHOSE 6X12 PER METER
-
1660015019001 HOSE NBR 7X11 PER METERHOSE NBR 7X11 PER METER
-
1845031005000 YDNAC-CLAMP FUEL HOSE (8MM)YDNAC-CLAMP FUEL HOSE (8MM)
-
1958007017000 YDNAC CLAMP 10101 (9MM)YDNAC CLAMP 10101 (9MM)
-
2058007117000 YDNAC-CLAMP 10107 10MMYDNAC-CLAMP 10107 10MM
-
2258031005000 CLAMP YDNAC 10128 12MMCLAMP YDNAC 10128 12MM
-
2850303018000 RUBBER FOR CENTER STANDRUBBER FOR CENTER STAND
-
3160015011000 BRACKET FOR EVAP-VALVEBRACKET FOR EVAP-VALVE
-
3360015013000 BUSHING EVAP-VALVEBUSHING EVAP-VALVE
-
3436003014000 LOCK WASHER 8MMLOCK WASHER 8MM
-
360015060123 HH COLLAR SCREW M6X12 WS=8HH COLLAR SCREW M6X12 WS=8
-
370015080103 HH COLLAR SCREW M8X10 WS=10HH COLLAR SCREW M8X10 WS=10
-
4360015033000 COVER CAP EVAP.CANIST VALVECOVER CAP EVAP.CANIST VALVE
-
4460015034000 PLUG FOR EVAP.CANISTER SYST.PLUG FOR EVAP.CANISTER SYST.
