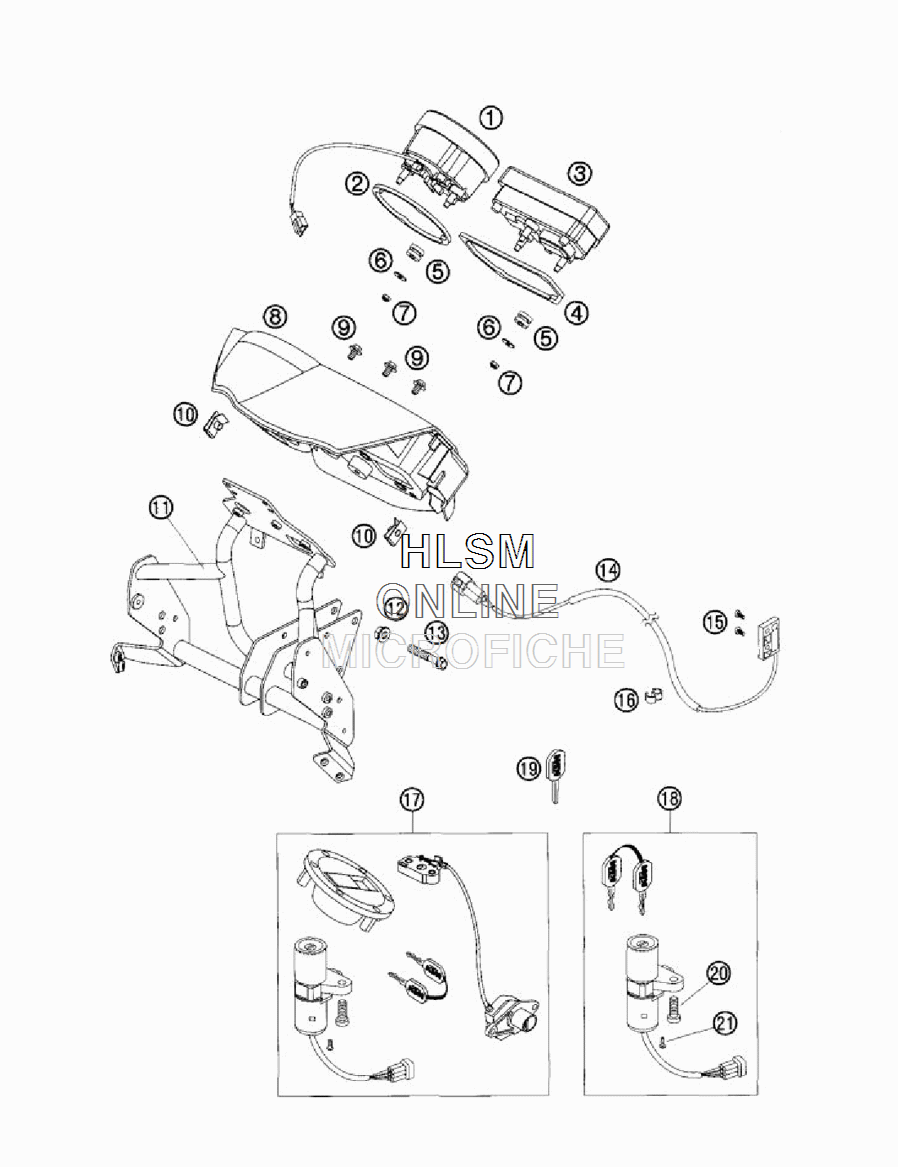

COCKPIT SUPPORTMETER для Ktm 950 ADVENTURE - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    60014075000 REV COUNTER LC8
    REV COUNTER LC8
  • 2
    60014068100 DAMPING RING SPEEDOMETER
    DAMPING RING SPEEDOMETER
  • 3
    60014069100 DIGITAL SPEEDOMETER
    DIGITAL SPEEDOMETER
  • 4
    60014068000 DAMPING RING TACHOMETER
    DAMPING RING TACHOMETER
  • 5
    58214069051 RUBBER GROMMET 16X10,8X3
    RUBBER GROMMET 16X10,8X3
  • 6
    0021050003 WASHER DIN9021-A 5,3
    WASHER DIN9021-A 5,3
  • 7
    0985050003 SELF LOCKING NUT DINO985-M 5
    SELF LOCKING NUT DINO985-M 5
  • 8
    60014070000 INSTRUMENT COVER LC8
    INSTRUMENT COVER LC8
  • 9
    0014060103 HH COLLAR SCREW M 6X10 WS=8
    HH COLLAR SCREW M 6X10 WS=8
  • 10
    54603048100 RANGE CHANGE METAL NUT M6
    RANGE CHANGE METAL NUT M6
  • 11
    60014010000 COCKPIT SUPPORT CPL.
    COCKPIT SUPPORT CPL.
  • 12
    54310086200 SELF LOCKING NUT M8 10.9
    SELF LOCKING NUT M8 10.9
  • 13
    0015080453 HH COLLAR SCREW M 8X45 WS=10
    HH COLLAR SCREW M 8X45 WS=10
  • 14
    60014069050 SPEEDOMETER SENSOR LC8
    SPEEDOMETER SENSOR LC8
  • 15
    0084040083 CYL.HEAD SCREW DIN0084-M 4X8A
    CYL.HEAD SCREW DIN0084-M 4X8A
  • 16
    55011022100 CLAMP D=6/8MM, BLACK
    CLAMP D=6/8MM, BLACK
  • 17
    60011066044 LOCK SYSTEM
    LOCK SYSTEM
  • 18
    60011066000 IGNITION LOCK
    IGNITION LOCK
  • 19
    40011166100 KEY BLANK
    KEY BLANK
  • 20
    60011064000 TAMPERPROOF SCREW F. IGN. LOCK
    TAMPERPROOF SCREW F. IGN. LOCK
  • 21
    0985040123 FLAT HEAD SCREW DIN7985-M 4X12
    FLAT HEAD SCREW DIN7985-M 4X12
