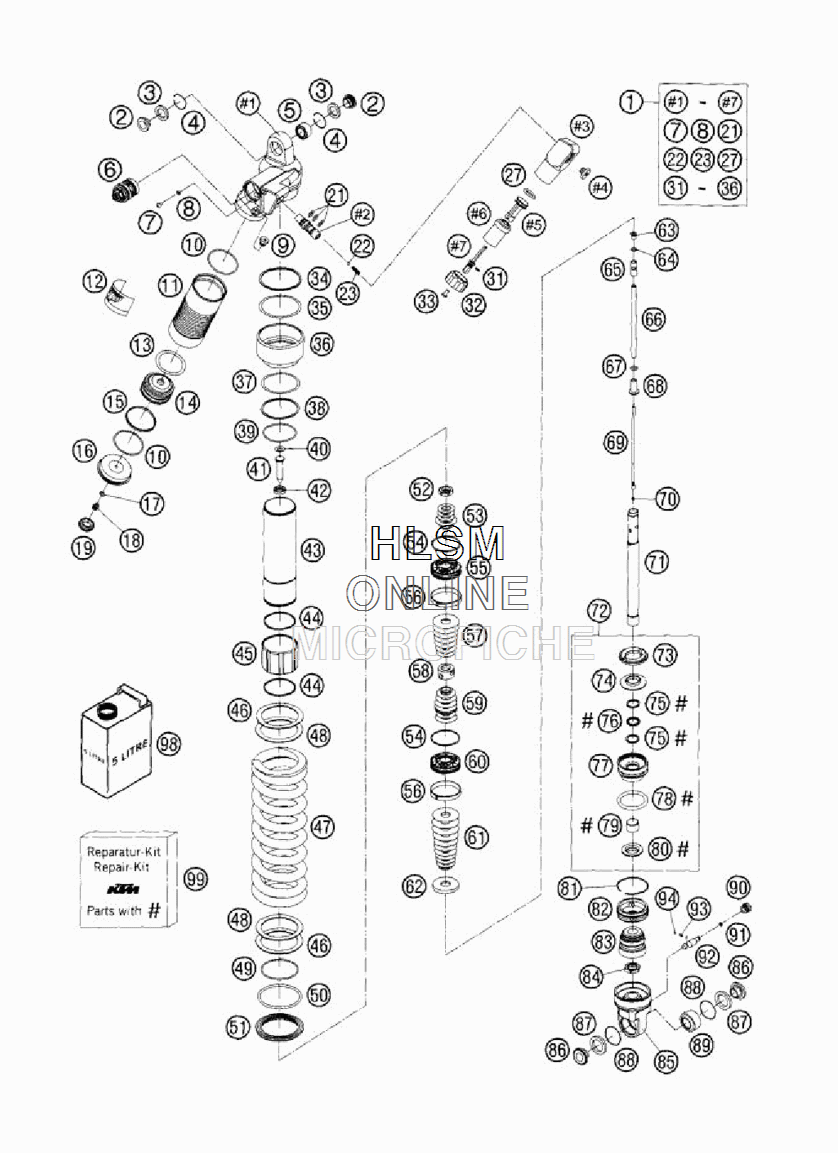

MONOSHOCK - DISASSEMBLED для Ktm 950 ADVENTURE - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    1200Y002 PRELOAD ADJUSTER 5018
    PRELOAD ADJUSTER 5018
  • 2
    50180366 ADAPTOR BUSH KGW 14X24
    ADAPTOR BUSH KGW 14X24
  • 3
    46180003 OIL SEAL KGW D=25
    OIL SEAL KGW D=25
  • 4
    50180168 WASHER KGW D=25
    WASHER KGW D=25
  • 5
    50180005 BUSHING KGW 1525 HD
    BUSHING KGW 1525 HD
  • 6
    50180213S4 DCC-COMPR.DA MP. CONTROL CPL.
    DCC-COMPR.DA MP. CONTROL CPL.
  • 7
    48600058 VENT SCREW M4X6
    VENT SCREW M4X6
  • 8
    48600009 O-RING NBR 3,7X1,6
    O-RING NBR 3,7X1,6
  • 9
    50180095 BLEED PLUG R 1/8
    BLEED PLUG R 1/8
  • 10
    46810016 O-RING NBR 48X2
    O-RING NBR 48X2
  • 11
    50180237 RESERVOIR SCREW L=123,5 D=52
    RESERVOIR SCREW L=123,5 D=52
  • 12
    52000044 STICKER WP KTM
    STICKER WP KTM
  • 13
    46180014 O-RING VITON 41X5
    O-RING VITON 41X5
  • 14
    46180002 SEPARATION PISTON D=52,; H=32
    SEPARATION PISTON D=52,; H=32
  • 15
    46180015 PISTON RING 3,9X1,5X156
    PISTON RING 3,9X1,5X156
  • 16
    50180344 RESERVOIR CAP D=58
    RESERVOIR CAP D=58
  • 17
    46810893 O-RING NBR 5,28X1,78
    O-RING NBR 5,28X1,78
  • 18
    36120151 SCREW PLUG M5X6
    SCREW PLUG M5X6
  • 19
    46811208 RUBBER CAP "DO NOT OPEN"
    RUBBER CAP "DO NOT OPEN"
  • 21
    35480083 O-RING NBR 10X2
    O-RING NBR 10X2
  • 22
    40540440 STEEL BALL D=5
    STEEL BALL D=5
  • 23
    46810332 SPRING D=4,8 ADJUST KNOB CC
    SPRING D=4,8 ADJUST KNOB CC
  • 27
    46810003 O-RING NBR 17X3
    O-RING NBR 17X3
  • 31
    48600044 O-RING NBR 6X15
    O-RING NBR 6X15
  • 32
    50180381 ADJUST KNOB PA
    ADJUST KNOB PA
  • 33
    46811771 AH SCREW M5X10
    AH SCREW M5X10
  • 34
    50180370 BACKUP RING BG 2700646
    BACKUP RING BG 2700646
  • 35
    50180369 O-RING NBR 63,09X3,53
    O-RING NBR 63,09X3,53
  • 36
    50180371 OUTER RING PA LC8
    OUTER RING PA LC8
  • 37
    50180372 O-RING 57,15X3,53 NBR
    O-RING 57,15X3,53 NBR
  • 38
    50180373 BACKUP RING BU 2700580
    BACKUP RING BU 2700580
  • 39
    50180097 O-RING 52X2
    O-RING 52X2
  • 40
    50180177 WASHER 16X8,2X0,6
    WASHER 16X8,2X0,6
  • 41
    50180300 NEEDLE D=10 L=37
    NEEDLE D=10 L=37
  • 42
    50180437 SCREW CAP M20X1 D=11,511=5
    SCREW CAP M20X1 D=11,511=5
  • 43
    50180367 TUBEM54X1 L=180PDS
    TUBEM54X1 L=180PDS
  • 44
    50180133 CIRCLIP 50X1,5
    CIRCLIP 50X1,5
  • 45
    50180081 SPRING GUIDANCE L=40
    SPRING GUIDANCE L=40
  • 46
    50180114 INTERM.RING SCREW SPRING RET.
    INTERM.RING SCREW SPRING RET.
  • 47
    91210035 SPRING 140-225 (62) 0=14,5
    SPRING 140-225 (62) 0=14,5
  • 47
    91210036 SPRING 150-225 (62) D=14,5
    SPRING 150-225 (62) D=14,5
  • 48
    50180402 INTERM.RING SPRING RET. H=3,5
    INTERM.RING SPRING RET. H=3,5
  • 49
    50180273 CIRCLIP 58,2X2
    CIRCLIP 58,2X2
  • 50
    50180352 O-RING VITON 66,27X3,53
    O-RING VITON 66,27X3,53
  • 51
    50180463 SPRING RETAINER D=80
    SPRING RETAINER D=80
  • 52
    50180141 PISTON ROD NUT M16X1
    PISTON ROD NUT M16X1
  • 53
    50180210 WASHER 16X21X1
    WASHER 16X21X1
  • 53
    50180209 WASHER 21X36X0,25
    WASHER 21X36X0,25
  • 53
    50180054 SHIM 16X28X0,20
    SHIM 16X28X0,20
  • 54
    50180099 O-RING VITON 44,17X1,78
    O-RING VITON 44,17X1,78
  • 55
    50180197 PISTON 6+6X7/4,5
    PISTON 6+6X7/4,5
  • 56
    50180135 PISTON RING 50-8
    PISTON RING 50-8
  • 57
    50180074 SHIM 16X32X0,30
    SHIM 16X32X0,30
  • 57
    50180075 SHIM 16X34X0,30
    SHIM 16X34X0,30
  • 57
    50180076 SHIM 16X36X0,30
    SHIM 16X36X0,30
  • 57
    50180068 SHIM 16X38X0,25
    SHIM 16X38X0,25
  • 57
    50180069 SHIM 16X40X0,25
    SHIM 16X40X0,25
  • 57
    50180070 SHIM 16X42X0,25
    SHIM 16X42X0,25
  • 57
    50180062 SHIM 16X44X0,20
    SHIM 16X44X0,20
  • 58
    50180269 SANDWICH BUSH D25XD16X14,5/D
    SANDWICH BUSH D25XD16X14,5/D
  • 59
    50180047 SHIM 16X32X0,15
    SHIM 16X32X0,15
  • 59
    46811637 PRESSURE RING 36X32,25
    PRESSURE RING 36X32,25
  • 59
    50180008 SHIM 16X22X0,10
    SHIM 16X22X0,10
  • 59
    50180058 SHIM 16X36X0,20
    SHIM 16X36X0,20
  • 59
    50180057 SHIM 16X34X0,20
    SHIM 16X34X0,20
  • 59
    50180056 SHIM 16X32X0,20
    SHIM 16X32X0,20
  • 59
    50180035 BACKPLATE 16X21X0,30
    BACKPLATE 16X21X0,30
  • 60
    50180197 PISTON 6+6X7/4,5
    PISTON 6+6X7/4,5
  • 61
    50180036 BACKPLATE 16X22X0,30
    BACKPLATE 16X22X0,30
  • 61
    50180064 SHIM 16X30X0,25
    SHIM 16X30X0,25
  • 61
    50180065 SHIM 16X32X0,25
    SHIM 16X32X0,25
  • 61
    50180066 SHIM 16X34X0,25
    SHIM 16X34X0,25
  • 61
    50180058 SHIM 16X36X0,20
    SHIM 16X36X0,20
  • 61
    50180059 SHIM 16X38X0,20
    SHIM 16X38X0,20
  • 61
    50180069 SHIM 16X40X0,25
    SHIM 16X40X0,25
  • 61
    50180070 SHIM 16X42X0,25
    SHIM 16X42X0,25
  • 61
    50180071 SHIM 16X44X0,25
    SHIM 16X44X0,25
  • 62
    50180453 SHIM REBOUND H=24
    SHIM REBOUND H=24
  • 63
    50180200 BUSH M8X1
    BUSH M8X1
  • 64
    50180157 O-RING VON 7X1,5
    O-RING VON 7X1,5
  • 65
    50180439 NEEDLE SEAT M8X1 D=5,5
    NEEDLE SEAT M8X1 D=5,5
  • 66
    50180363 TUBE M8X1 L=138
    TUBE M8X1 L=138
  • 67
    48600049 O-RING NBR 8X2
    O-RING NBR 8X2
  • 68
    50180279 TUBE ADAPTOR M8X1 L=23
    TUBE ADAPTOR M8X1 L=23
  • 69
    50180364 NEEDLE L=161
    NEEDLE L=161
  • 70
    46811265 O-RING VITON 2,2X1,6
    O-RING VITON 2,2X1,6
  • 71
    50180362 PISTON ROD D=18 M16X1
    PISTON ROD D=18 M16X1
  • 72
    50180349S1 ADAPTOR CPL. D=50; H=28,5
    ADAPTOR CPL. D=50; H=28,5
  • 73
    50180107 REBOUND RUBBER
    REBOUND RUBBER
  • 74
    50180304 STEEL DISC 18,5X43,7X6
    STEEL DISC 18,5X43,7X6
  • 75
    50180102 BACKUPRING 22,55X1,5
    BACKUPRING 22,55X1,5
  • 76
    50180101 QUAD RING 18X2,62
    QUAD RING 18X2,62
  • 77
    50180349 ADAPTOR D=50; H=28,5
    ADAPTOR D=50; H=28,5
  • 78
    50180103 O-RING 41X5
    O-RING 41X5
  • 79
    46180119 DU-BUSH 18X20X12
    DU-BUSH 18X20X12
  • 80
    50180082 DUST SEAL 1835
    DUST SEAL 1835
  • 81
    50180126 MOP 53X1,75
    MOP 53X1,75
  • 82
    50180165 COVER D=50
    COVER D=50
  • 83
    50180276 BUMP RUBBER WP60 D=18-26
    BUMP RUBBER WP60 D=18-26
  • 84
    50180283 CONTRA NUT M18X1 11=5
    CONTRA NUT M18X1 11=5
  • 85
    50180358 SHOCK ABS.BOTTOM 54X20X32
    SHOCK ABS.BOTTOM 54X20X32
  • 86
    50180365 ADAPTOR BUSH KGW D=3214X32
    ADAPTOR BUSH KGW D=3214X32
  • 87
    50180159 SHAFT SEAL RING KGW D=32
    SHAFT SEAL RING KGW D=32
  • 88
    50180175 CIRCLIP KGW D=32
    CIRCLIP KGW D=32
  • 89
    50180179 PIVOT BEARING KGW 1632
    PIVOT BEARING KGW 1632
  • 90
    50180281 RESERVOIR CAP M14X1
    RESERVOIR CAP M14X1
  • 91
    50180222 O-RING NBR 4X1,5
    O-RING NBR 4X1,5
  • 92
    50180434 ADJUSTING SCREW 80 DEG. L=39
    ADJUSTING SCREW 80 DEG. L=39
  • 93
    48600028 SPRING D=2,9 L=7,9
    SPRING D=2,9 L=7,9
  • 94
    40540603 STEEL BALL D=3MM
    STEEL BALL D=3MM
  • 98
    50180342S1 SHOCK ABSORBER FLUID 5 LT
    SHOCK ABSORBER FLUID 5 LT
  • 99
    R12008 REPAIR-KIT GASKET 5018 PDS
    REPAIR-KIT GASKET 5018 PDS
