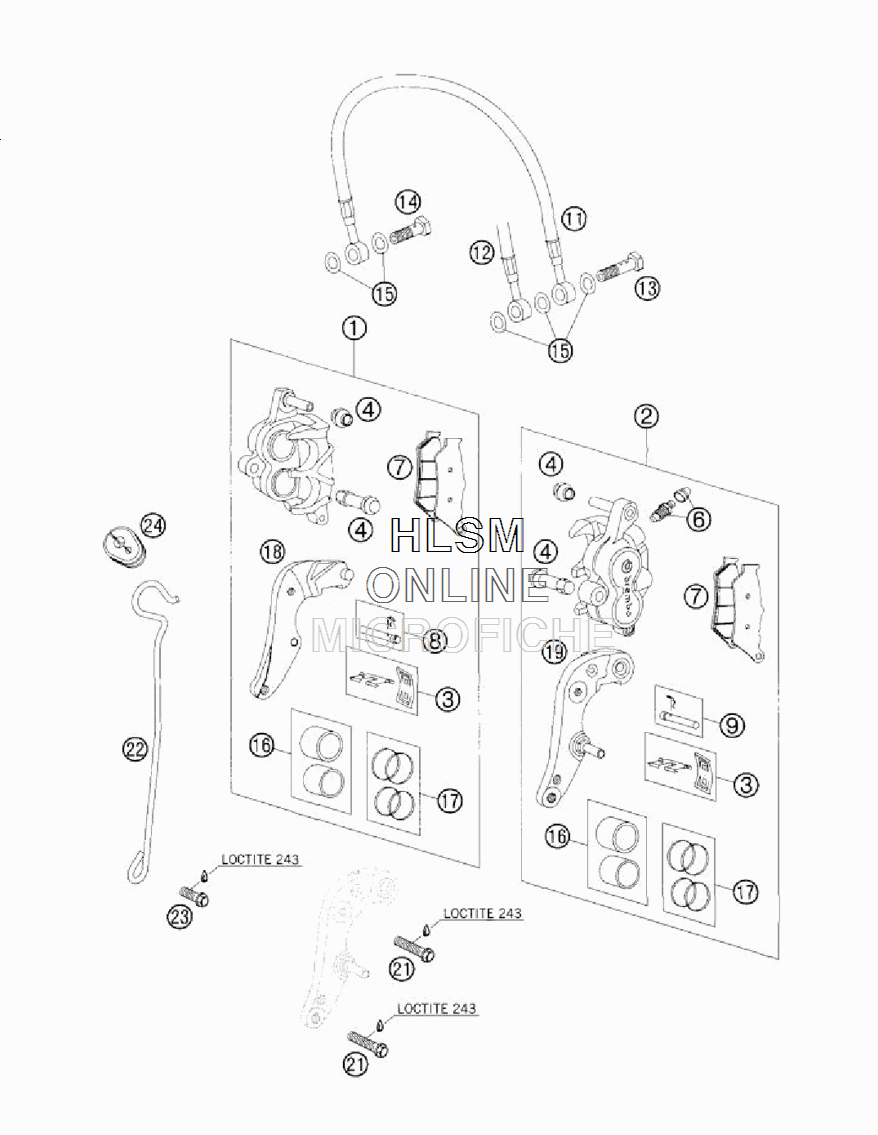

BRAKE CALIPER FRONT для Ktm 950 ADVENTURE - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    60013016000 BRAKE CALIPER FRONT R/S (WITH BRAKE CALIPER SUPPORT)
    BRAKE CALIPER FRONT R/S (WITH BRAKE CALIPER SUPPORT)
  • 2
    60013015000 BRAKE CALIPER FRONT L/S (WITH BRAKE CALIPER SUPPORT)
    BRAKE CALIPER FRONT L/S (WITH BRAKE CALIPER SUPPORT)
  • 3
    60013018000 RETAINING PLATE SET FRONT
    RETAINING PLATE SET FRONT
  • 4
    54613218000 CUP SET SHORT
    CUP SET SHORT
  • 6
    60013020000 BLEEDER SCREW WITH CAP
    BLEEDER SCREW WITH CAP
  • 7
    60013030000 BRAKE PAD SET FRONT
    BRAKE PAD SET FRONT
  • 8
    60013017100 BOLT SET R/S
    BOLT SET R/S
  • 9
    60013017000 BOLT SET US
    BOLT SET US
  • 11
    60013013000 CONNECTING PIPE FRONT
    CONNECTING PIPE FRONT
  • 12
    60013012300 BRAKE HOSE FRONT (L=1214 MM)
    BRAKE HOSE FRONT (L=1214 MM)
  • 13
    60013092000 HOLLOW SCREW M1OX1X30 03
    HOLLOW SCREW M1OX1X30 03
  • 14
    50213025000 HOLLOW SCREW M10X1X19
    HOLLOW SCREW M10X1X19
  • 15
    42013226000 CU-SEAL RING DIN7603-1OX16X1
    CU-SEAL RING DIN7603-1OX16X1
  • 16
    60013083000 BRAKE PISTONS
    BRAKE PISTONS
  • 17
    60013019000 REP. KIT SEALING RINGS 30/32MM
    REP. KIT SEALING RINGS 30/32MM
  • 18
    60013049000 BRAKE CALIPER SUPPORT FR. R/S (WITH RETAINING PLATE)
    BRAKE CALIPER SUPPORT FR. R/S (WITH RETAINING PLATE)
  • 19
    60013049100 BRAKE CALIPER SUPPORT FR. L/S (WITH RETAINING PLATE)
    BRAKE CALIPER SUPPORT FR. L/S (WITH RETAINING PLATE)
  • 21
    0015080353 HH COLLAR SCREW M8X35 WS=10
    HH COLLAR SCREW M8X35 WS=10
  • 22
    60013025000 BRAKE HOSE GUIDE FRONT
    BRAKE HOSE GUIDE FRONT
  • 23
    0015080163 HH COLLAR SCREW M8X16 WS=10
    HH COLLAR SCREW M8X16 WS=10
  • 24
    60013025050 RUBBER FOR BRAKE HOSE GUIDE
    RUBBER FOR BRAKE HOSE GUIDE
