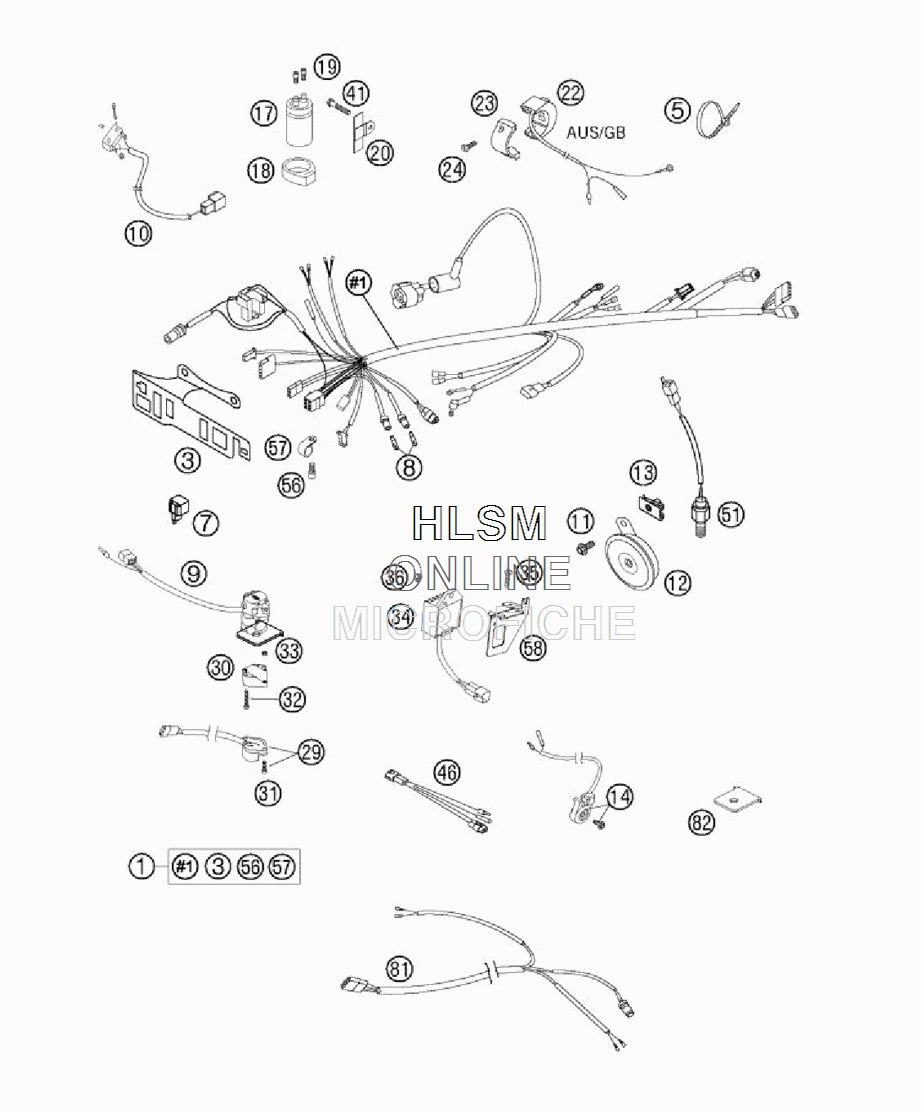

WIRING HARNESS для Ktm 660 SMC - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    58611075200 WIRING HARNESS
    WIRING HARNESS
  • 3
    59011083000 SUPPORT BRACKET BLACK
    SUPPORT BRACKET BLACK
  • 5
    44011076100 CABLE TIE 100/2,5MM BLACK
    CABLE TIE 100/2,5MM BLACK
  • 5
    44011076200 CABLE TIE 200/3,6MM BLACK
    CABLE TIE 200/3,6MM BLACK
  • 5
    44011076305 CABLE TIE 300/4,8MM BLACK
    CABLE TIE 300/4,8MM BLACK
  • 7
    44611207200 FLASHER UNIT
    FLASHER UNIT
  • 8
    49111425000 BULB 12V 1,2W (W2X4,6D)
    BULB 12V 1,2W (W2X4,6D)
  • 9
    50311070000 H.LIGHT SWITCH CEV 2/4TAKT
    H.LIGHT SWITCH CEV 2/4TAKT
  • 10
    58411050000 BRAKE LIGHT SWITCH FRONT
    BRAKE LIGHT SWITCH FRONT
  • 11
    0014060153 HH COLLAR SCREW M 6X15 WS=8
    HH COLLAR SCREW M 6X15 WS=8
  • 12
    50311060100 DC HORN L.E.B.
    DC HORN L.E.B.
  • 13
    54603048100 RANGE CHANGE METAL NUT M6
    RANGE CHANGE METAL NUT M6
  • 14
    58411045000 SIDE STAND SWITCH CPL.
    SIDE STAND SWITCH CPL.
  • 17
    49111435100 CONDENSATOR 25V, 10.000 MF
    CONDENSATOR 25V, 10.000 MF
  • 18
    54511048000 CAPACITOR BRACKET
    CAPACITOR BRACKET
  • 19
    0912050083 AH SCREW DIN 912 M 5X8
    AH SCREW DIN 912 M 5X8
  • 20
    54611448000 BRACKET
    BRACKET
  • 22
    50311074000 ENGINE STOP SWITCH CEV
    ENGINE STOP SWITCH CEV
  • 23
    50311074050 CLAMP ENGINE STOP SWITCH
    CLAMP ENGINE STOP SWITCH
  • 24
    0985040203 FLAT HEAD SCREW DIN7985-M 4X20
    FLAT HEAD SCREW DIN7985-M 4X20
  • 29
    50311029000 FLASHER SWITCH CEV
    FLASHER SWITCH CEV
  • 30
    13011070060 ADAPTER
    ADAPTER
  • 31
    0985040163 FLAT HEAD SCREW DIN7985-M 4X16
    FLAT HEAD SCREW DIN7985-M 4X16
  • 32
    0084040223 CYL.HEAD SCREW DIN0084-M 4X22A
    CYL.HEAD SCREW DIN0084-M 4X22A
  • 33
    0934040003 HEXAGON NUT DIN0934-M 4
    HEXAGON NUT DIN0934-M 4
  • 34
    80011034000 VOLTAGE REGULATOR 04
    VOLTAGE REGULATOR 04
  • 35
    0016050121 SCREW
    SCREW
  • 36
    56509064100 SELF LOCKING NUT M6 10.9
    SELF LOCKING NUT M6 10.9
  • 41
    0015060303 HH COLLAR SCREW M 6X30 WS=8
    HH COLLAR SCREW M 6X30 WS=8
  • 46
    58611046000 ADAPT.CABLE F.SIDE STAND
    ADAPT.CABLE F.SIDE STAND
  • 51
    50311051100 BRAKE LIGHT SWITCH REAR
    BRAKE LIGHT SWITCH REAR
  • 56
    0912050083 AH SCREW DIN 912 M 5X8
    AH SCREW DIN 912 M 5X8
  • 57
    57013070100 PVC-CLAMP 7,9 MM HEYCO 3355
    PVC-CLAMP 7,9 MM HEYCO 3355
  • 58
    58611055100 BRACKET REGULATOR
    BRACKET REGULATOR
  • 81
    58611076000 WIRING HARNESS REAR
    WIRING HARNESS REAR
  • 82
    58611087060 COVER
    COVER
