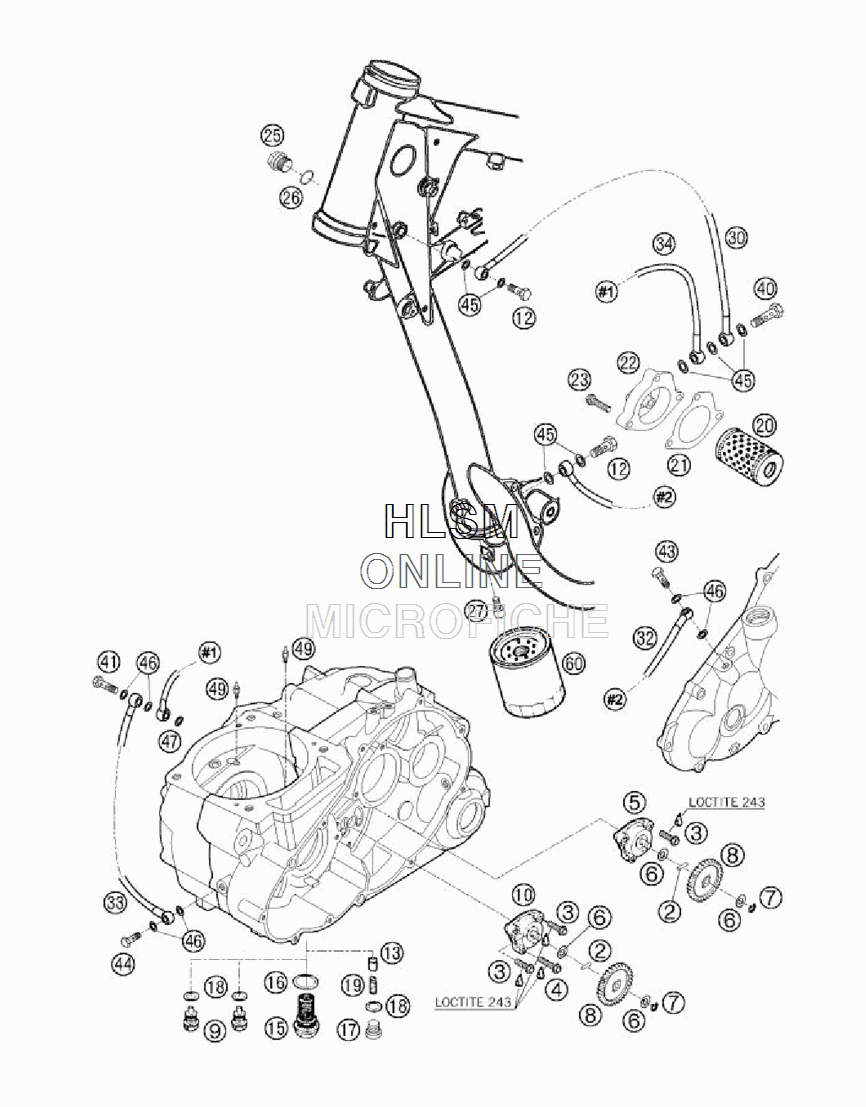

LUBRICATING SYSTEM для Ktm 660 SMC - 2005 года выпуска

  • №
    Артикул
    Название
  • 2
    0402251980 NEEDLEROL.DIN5402 NRA 2,5X19,8
    NEEDLEROL.DIN5402 NRA 2,5X19,8
  • 3
    0015060203 HH COLLAR SCREW M 6X20 WS=8
    HH COLLAR SCREW M 6X20 WS=8
  • 4
    0015060253 HH COLLAR SCREW M 6X25 WS=8
    HH COLLAR SCREW M 6X25 WS=8
  • 5
    58038007700 OIL PUMP MIKUNI G-73-10
    OIL PUMP MIKUNI G-73-10
  • 6
    58038007755 STOP DISK 8,1 X 15 X 0,5
    STOP DISK 8,1 X 15 X 0,5
  • 7
    0799060000 TAB WASHER DIN6799-RS 6,0
    TAB WASHER DIN6799-RS 6,0
  • 8
    58438001000 OIL PUMP GEAR 26-T
    OIL PUMP GEAR 26-T
  • 9
    58030021000 OILDRAIN PLUG W.MAG. M 12X1,5
    OILDRAIN PLUG W.MAG. M 12X1,5
  • 10
    58538007000 OIL PUMP MIKUNI G-185
    OIL PUMP MIKUNI G-185
  • 12
    54313025000 HOLLOW SCREW M10 X 1
    HOLLOW SCREW M10 X 1
  • 13
    58038028000 VALVE PISTON D=10MM
    VALVE PISTON D=10MM
  • 15
    58038019100 OIL DRAIN PLUG M22X1,5
    OIL DRAIN PLUG M22X1,5
  • 16
    58038017100 CU-SEAL RING DIN7603-22X27X2
    CU-SEAL RING DIN7603-22X27X2
  • 17
    0908120153 PLUG DIN0908-M12X1,5
    PLUG DIN0908-M12X1,5
  • 18
    58038022000 CU-SEAL RING DIN7603-12X18X1,5
    CU-SEAL RING DIN7603-12X18X1,5
  • 19
    58538023000 OIL PRES.SPRING 5 BAR RED
    OIL PRES.SPRING 5 BAR RED
  • 20
    58038005100 OIL FILTER LONG
    OIL FILTER LONG
  • 21
    58530041000 OIL FILTER COVER GASKET
    OIL FILTER COVER GASKET
  • 22
    58030008700 OIL FILTER COVER
    OIL FILTER COVER
  • 23
    0015060253 HH COLLAR SCREW M 6X25 WS=8
    HH COLLAR SCREW M 6X25 WS=8
  • 25
    0910160153 PLUG DIN0910-M16X1,5
    PLUG DIN0910-M16X1,5
  • 26
    0603162220 CU-SEAL RING 16X22X2
    CU-SEAL RING 16X22X2
  • 27
    0984060103 AH SCREW DIN7984-M 6X10
    AH SCREW DIN7984-M 6X10
  • 30
    58038234700 OIL LINE FILTER-FRAME TUBE
    OIL LINE FILTER-FRAME TUBE
  • 32
    58338034100 OIL LINE CLUTCH COVER-FRAME
    OIL LINE CLUTCH COVER-FRAME
  • 33
    58538044000 OIL LINE CASE L/S R/S 260MM
    OIL LINE CASE L/S R/S 260MM
  • 34
    58038334600 OIL LINE FILTER/INJECT.VA. R/S
    OIL LINE FILTER/INJECT.VA. R/S
  • 40
    58038033100 DUAL BANJO BOLT M10 X 1
    DUAL BANJO BOLT M10 X 1
  • 41
    58038033000 DUAL BANJO BOLT M8X1
    DUAL BANJO BOLT M8X1
  • 43
    58038130000 JET SCREW M 8 X 1 "150"
    JET SCREW M 8 X 1 "150"
  • 44
    58038030000 BANJO BOLT M8 X 1 DIN7643
    BANJO BOLT M8 X 1 DIN7643
  • 45
    0603100141 COPPER GASKET DIN7603-10X14X1
    COPPER GASKET DIN7603-10X14X1
  • 46
    0603082121 SEAL RING CU DIN7603- 8X12X1
    SEAL RING CU DIN7603- 8X12X1
  • 47
    0603821220 COPPER GASKET 8,2X12X2 MM
    COPPER GASKET 8,2X12X2 MM
  • 49
    60030064070 OIL JET 70 M6X0,75 WS8
    OIL JET 70 M6X0,75 WS8
  • 60
    58338045100 SCREW TYPE FILTER
    SCREW TYPE FILTER
