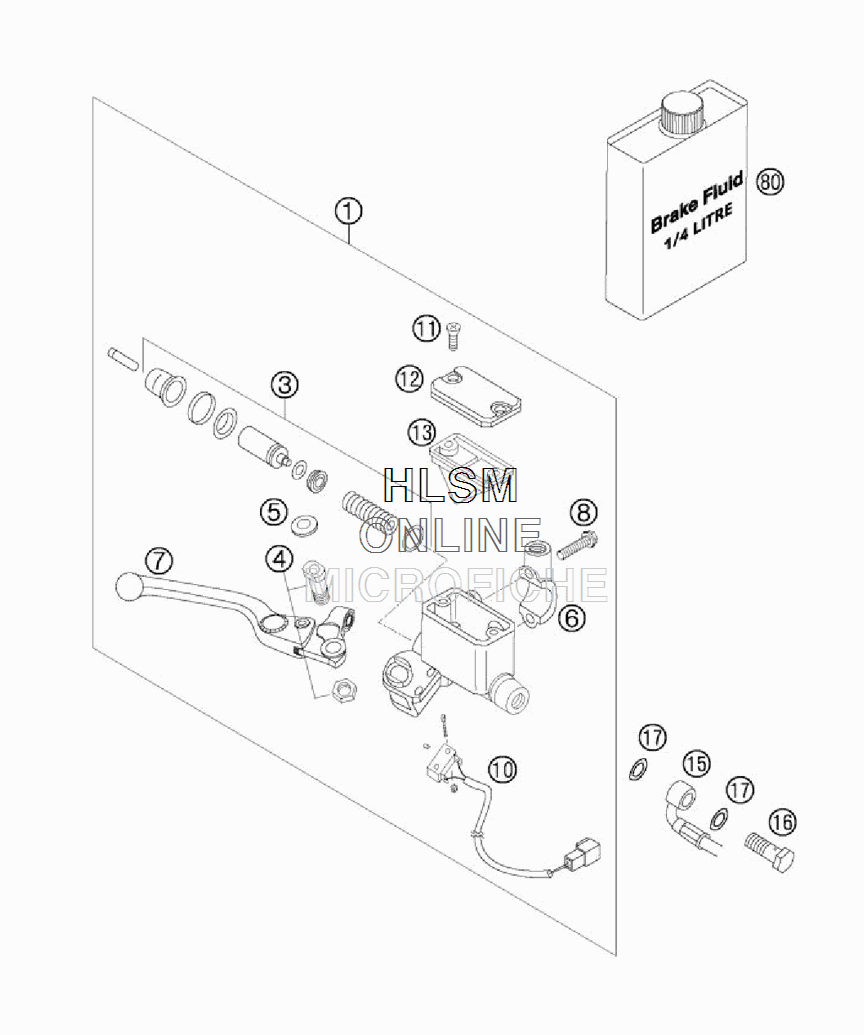

HAND BRAKE для Ktm 660 SMC - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    58713001100 HAND BRAKE CYL. DUKE ADJUST.
    HAND BRAKE CYL. DUKE ADJUST.
  • 3
    58313050100 REPAIR KIT CPL. D=13MM
    REPAIR KIT CPL. D=13MM
  • 4
    54413015000 LEVER SCREW CPL.
    LEVER SCREW CPL.
  • 5
    58713004000 COVERING CAP FOR LEVER SCREW
    COVERING CAP FOR LEVER SCREW
  • 6
    58012040050 CLAMP MIRROW M10X1,25
    CLAMP MIRROW M10X1,25
  • 7
    58713002100 HAND BRAKE LEVER LOOSE ADJ.
    HAND BRAKE LEVER LOOSE ADJ.
  • 8
    0015060203 HH COLLAR SCREW M 6X20 WS=8
    HH COLLAR SCREW M 6X20 WS=8
  • 10
    58411050000 BRAKE LIGHT SWITCH FRONT SM
    BRAKE LIGHT SWITCH FRONT SM
  • 11
    0965050163 FLAT HEAD SCREW DIN0965-M 5X16
    FLAT HEAD SCREW DIN0965-M 5X16
  • 12
    58313012000 COVER BREMBO
    COVER BREMBO
  • 13
    58313009000 RUBBER BOOT
    RUBBER BOOT
  • 15
    58413011500 BRAKE HOSE FRONT
    BRAKE HOSE FRONT
  • 16
    50213025000 HOLLOW SCREW M10X1X19
    HOLLOW SCREW M10X1X19
  • 17
    42013226000 CU-SEAL RING DIN7603-10X16X1
    CU-SEAL RING DIN7603-10X16X1
  • 80
    306054 BRAKE FLUID DOT 5.1
    BRAKE FLUID DOT 5.1
