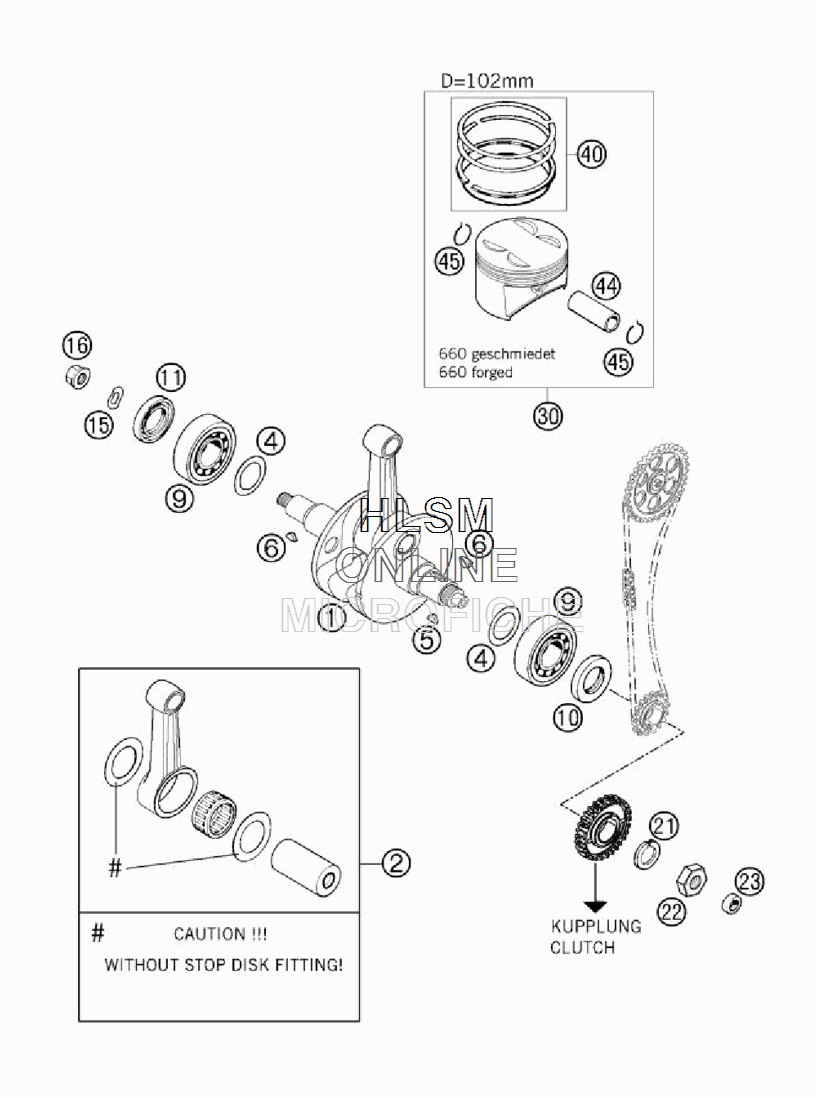

CRANKSHAFT W/ PISTON для Ktm 660 SMC - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    57330018100 CRANKSHAFT CPL.
    CRANKSHAFT CPL.
  • 2
    58530015144 CONNECT. ROD REPAIR SET
    CONNECT. ROD REPAIR SET
  • 4
    56530081000 SHIM WASHER 36X48X0,10
    SHIM WASHER 36X48X0,10
  • 4
    56530081100 SHIM WASHER 36X48X0,15
    SHIM WASHER 36X48X0,15
  • 4
    56530081300 SHIM WASHER 36X48X0,30
    SHIM WASHER 36X48X0,30
  • 5
    0888030050 WOODRUFF KEY DIN6888-3X5X13
    WOODRUFF KEY DIN6888-3X5X13
  • 6
    6946005 WOODRUFF KEY 5X6,5 HARDED
    WOODRUFF KEY 5X6,5 HARDED
  • 9
    56530123000 CYL. ROLLER BEARING NJ 207 ECP
    CYL. ROLLER BEARING NJ 207 ECP
  • 10
    0760304071 SHAFT SEAL RING 30X40X7 BSL
    SHAFT SEAL RING 30X40X7 BSL
  • 11
    0760304772 SH.SEAL RING 30X47X7 BSL VITON
    SH.SEAL RING 30X47X7 BSL VITON
  • 15
    0137120000 SPRING WASHER DIN0137-B12
    SPRING WASHER DIN0137-B12
  • 16
    51030028100 COLLAR NUT M12X1 LEFT WS=17
    COLLAR NUT M12X1 LEFT WS=17
  • 21
    58030019000 LOCKING RING VSK 20
    LOCKING RING VSK 20
  • 22
    0936200155 HEXAGON NUT DIN0936-M20X1,5
    HEXAGON NUT DIN0936-M20X1,5
  • 23
    0760122270 SHAFT SEAL RING 12 X 22 X 7 B
    SHAFT SEAL RING 12 X 22 X 7 B
  • 30
    58530007300I PISTON I CPL. D=102MM
    PISTON I CPL. D=102MM
  • 30
    58530007300II PISTON II CPL. D=102MM
    PISTON II CPL. D=102MM
  • 40
    58530031144 PISTONRING SET ELKO
    PISTONRING SET ELKO
  • 44
    58330833000 PISTON PIN 22 X 13 X 60
    PISTON PIN 22 X 13 X 60
  • 45
    58430074000 CIRCLIP 22 X 1,6
    CIRCLIP 22 X 1,6
