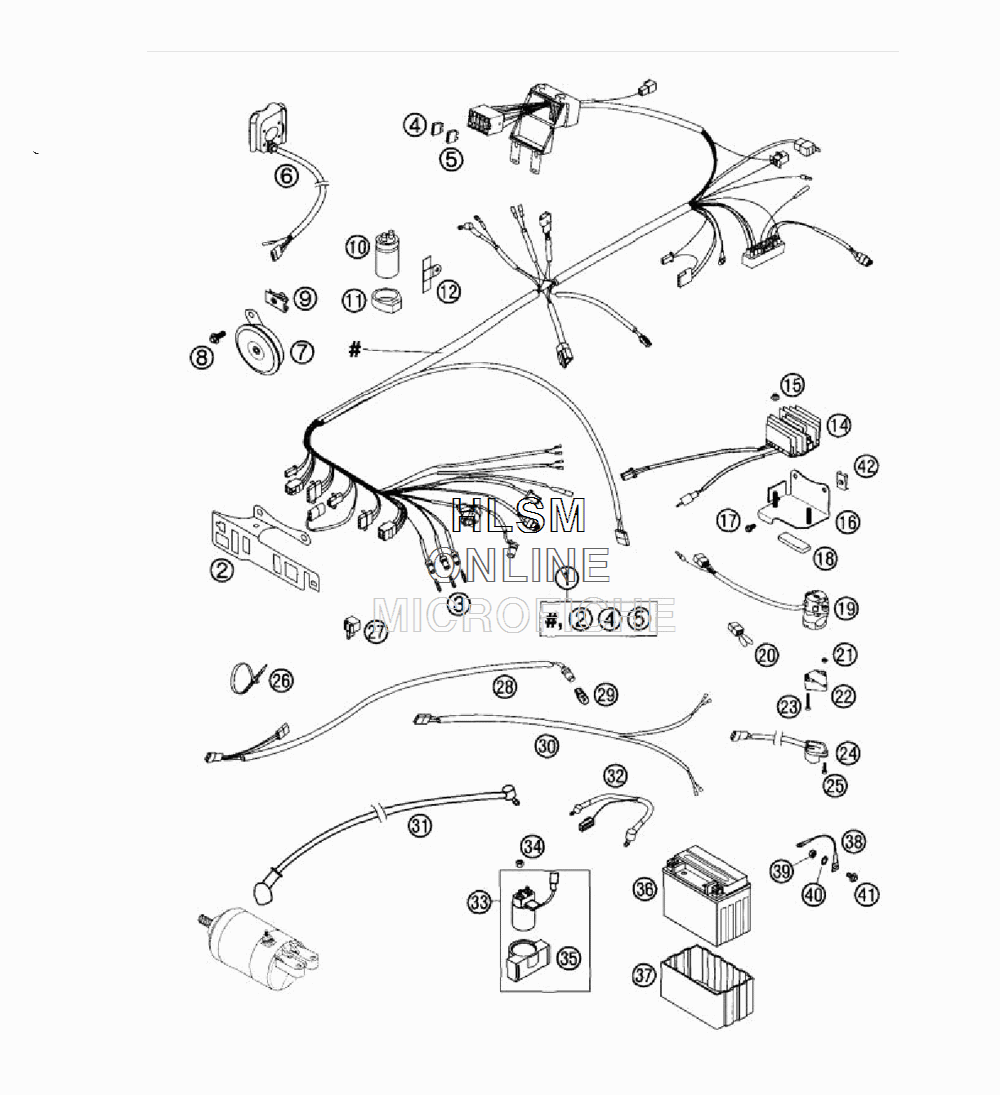

WIRING HARNESS для Ktm 625 SXC LC4 - 2004 года выпуска

  • №
    Артикул
    Название
  • 1
    58311375450 WIRING HARNESS
    WIRING HARNESS
  • 2
    59011083000 SUPPORT BRACKET BLACK
    SUPPORT BRACKET BLACK
  • 3
    49111425000 BULB 12V 1,2W (W2X4,6D)
    BULB 12V 1,2W (W2X4,6D)
  • 4
    58011109110 FUSE 10 A
    FUSE 10 A
  • 5
    58011109120 FUSE 20A
    FUSE 20A
  • 6
    59011074200 START-STOP TIP SWITCH
    START-STOP TIP SWITCH
  • 6
    59011074000 START-STOP TIP SWITCH CPL.
    START-STOP TIP SWITCH CPL.
  • 7
    50311060100 DC HORN L.E.B.
    DC HORN L.E.B.
  • 8
    0014060153 HH COLLAR SCREW M 6X15 WS=8
    HH COLLAR SCREW M 6X15 WS=8
  • 9
    54603048100 RANGE CHANGE METAL NUT M6
    RANGE CHANGE METAL NUT M6
  • 10
    49111435100 CONDENSATOR 25V, 10.000 MF
    CONDENSATOR 25V, 10.000 MF
  • 11
    54511048000 CAPACITOR BRACKET
    CAPACITOR BRACKET
  • 12
    54611448000 BRACKET FOR CAPACITOR
    BRACKET FOR CAPACITOR
  • 14
    58411034100 VOLT.REGULATOR-RECTIFIER 12V
    VOLT.REGULATOR-RECTIFIER 12V
  • 15
    56509064100 SELF LOCKING NUT M6 10.9
    SELF LOCKING NUT M6 10.9
  • 16
    58411055200 BATTERY BRACKET
    BATTERY BRACKET
  • 17
    0015060103 HH COLLAR SCREW M 6X10 WS=8
    HH COLLAR SCREW M 6X10 WS=8
  • 18
    58414040051 METAMOLL FOR REARLIGHT
    METAMOLL FOR REARLIGHT
  • 19
    50311070100 H.LIGHT SWITCH CEV (EU - SYMBOLS YELLOW)
    H.LIGHT SWITCH CEV (EU - SYMBOLS YELLOW)
  • 20
    58311064000 DUMMY PLUG F.
    DUMMY PLUG F.
  • 21
    0934040003 HEXAGON NUT DIN0934-M 4
    HEXAGON NUT DIN0934-M 4
  • 22
    13011070060 ADAPTER FOR FLASHER SWITCH
    ADAPTER FOR FLASHER SWITCH
  • 23
    0084040223 CYL.HEAD SCREW DIN0084-M 4X22A
    CYL.HEAD SCREW DIN0084-M 4X22A
  • 24
    50311029000 FLASHER SWITCH CEV
    FLASHER SWITCH CEV
  • 25
    0985040163 FLAT HEAD SCREW DIN7985-M 4X16
    FLAT HEAD SCREW DIN7985-M 4X16
  • 26
    44011076100 CABLE TIE 100/2,5MM BLACK
    CABLE TIE 100/2,5MM BLACK
  • 26
    44011076200 CABLE TIE 200/3,6MM BLACK
    CABLE TIE 200/3,6MM BLACK
  • 26
    44011076305 CABLE TIE 300/4,8MM BLACK
    CABLE TIE 300/4,8MM BLACK
  • 27
    44611207200 FLASHER UNIT SUMITOMO
    FLASHER UNIT SUMITOMO
  • 28
    58411047000 WIRING H. NUMBER P. LIGHT
    WIRING H. NUMBER P. LIGHT
  • 29
    49011435000 BULB 12V 5W (W2,1X9,5D)
    BULB 12V 5W (W2,1X9,5D)
  • 30
    59011081000 FLASH.WIRINGHARNESS REAR
    FLASH.WIRINGHARNESS REAR
  • 31
    58411059100 STARTERCABLE 700 MM
    STARTERCABLE 700 MM
  • 32
    58411059350 BATTERY CABLE L= 200 MM
    BATTERY CABLE L= 200 MM
  • 33
    58411058000 STARTER RELAY WITH HOLD.RUBBER
    STARTER RELAY WITH HOLD.RUBBER
  • 34
    0985060003 SELF LOCK. NUT DIN0985-M 6
    SELF LOCK. NUT DIN0985-M 6
  • 35
    58411058050 HOLD. RUBBER FOR STARTRELAY
    HOLD. RUBBER FOR STARTRELAY
  • 36
    58411053100 BATTERY 12V8,6AH
    BATTERY 12V8,6AH
  • 37
    58411053050 BATTERY COVER (RUBBER)
    BATTERY COVER (RUBBER)
  • 38
    58411097100 GROUND CABLE D=6MM L=140MM
    GROUND CABLE D=6MM L=140MM
  • 39
    56509064100 SELF LOCKING NUT M6 10.9
    SELF LOCKING NUT M6 10.9
  • 40
    58411098100 CONTACT WASHER M6 VSV-K6
    CONTACT WASHER M6 VSV-K6
  • 41
    0014060153 HH COLLAR SCREW M 6X15 WS=8
    HH COLLAR SCREW M 6X15 WS=8
  • 42
    54603048100 RANGE CHANGE METAL NUT M6
    RANGE CHANGE METAL NUT M6
