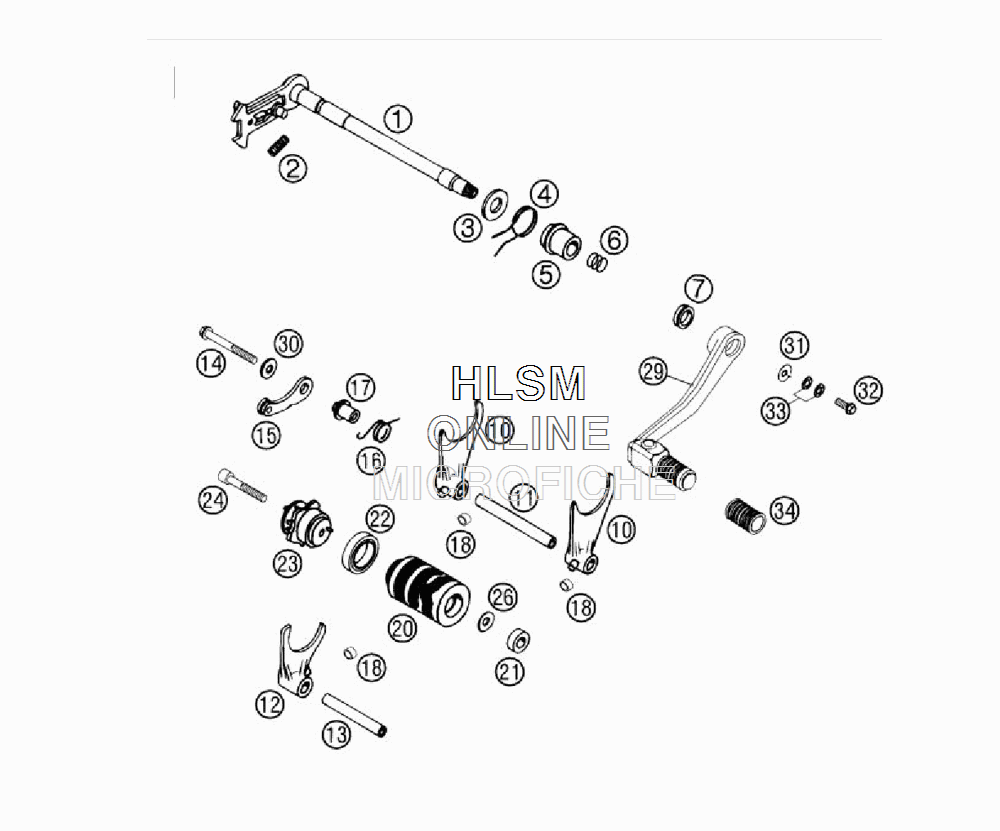

SHIFTING MECHANISM для Ktm 625 SXC LC4 - 2004 года выпуска

  • №
    Артикул
    Название
  • 1
    58334005044 SHIFT SHAFT CPL.
    SHIFT SHAFT CPL.
  • 2
    56534013100 SPANNER SPRING 0,8MM
    SPANNER SPRING 0,8MM
  • 3
    58034010000 STEEL WASHER 14 X 28 X 2
    STEEL WASHER 14 X 28 X 2
  • 4
    58034014000 RETURN SPRING
    RETURN SPRING
  • 5
    58334020000 SPRING SLEEVE
    SPRING SLEEVE
  • 6
    0770125020 O-RING 12,50X2,00 NBR 70
    O-RING 12,50X2,00 NBR 70
  • 7
    58033027000 V-SEAL RING V-14-A
    V-SEAL RING V-14-A
  • 10
    58034002300 SHIFT FORK 1ST/4TH+2ND GEAR
    SHIFT FORK 1ST/4TH+2ND GEAR
  • 11
    58034004000 SHIFT RAIL 1ST/4TH + 2ND GEAR
    SHIFT RAIL 1ST/4TH + 2ND GEAR
  • 12
    58034001300 SHIFT FORK 3RD/5TH GEAR
    SHIFT FORK 3RD/5TH GEAR
  • 13
    58034003000 SHIFT RAIL 3RD/5TH GEAR
    SHIFT RAIL 3RD/5TH GEAR
  • 14
    0015060653 HH COLLAR SCREW M 6X65 WS=8
    HH COLLAR SCREW M 6X65 WS=8
  • 15
    58334024044 LOCKING LEVER CPL.
    LOCKING LEVER CPL.
  • 16
    58034023500 SPRING
    SPRING
  • 17
    58334017000 SPRING SLEEVE
    SPRING SLEEVE
  • 18
    50334018100 SHIFTING ROLLER 6X8X5,2
    SHIFTING ROLLER 6X8X5,2
  • 20
    58334012000 SHIFT ROLLER STEEL
    SHIFT ROLLER STEEL
  • 21
    0625006087 GROOVED BALL BEAR. 608 2RS C3
    GROOVED BALL BEAR. 608 2RS C3
  • 22
    0625618050 BALL BEARING 61805 C3
    BALL BEARING 61805 C3
  • 23
    58434015044 SHIFT LOCATING DRUM CPL.
    SHIFT LOCATING DRUM CPL.
  • 24
    0912060404 AH SCREW DIN0912-M 6X40 A2
    AH SCREW DIN0912-M 6X40 A2
  • 26
    51006097000 WASHER 6,2X22X1,ST30, W. GALV.
    WASHER 6,2X22X1,ST30, W. GALV.
  • 29
    58434031144 SHIFT LEVER CPL.
    SHIFT LEVER CPL.
  • 30
    50232050000 WASHER 6,2X18X2
    WASHER 6,2X18X2
  • 31
    50232050001 STEEL WASHER 6,4X17X3
    STEEL WASHER 6,4X17X3
  • 32
    0015060163 HH COLLAR SCREW M 6X16 WS=8
    HH COLLAR SCREW M 6X16 WS=8
  • 33
    50233041000 PAIR OF WASHERS M 6 NORDLOCK
    PAIR OF WASHERS M 6 NORDLOCK
  • 34
    36205018000 RUBBER
    RUBBER
