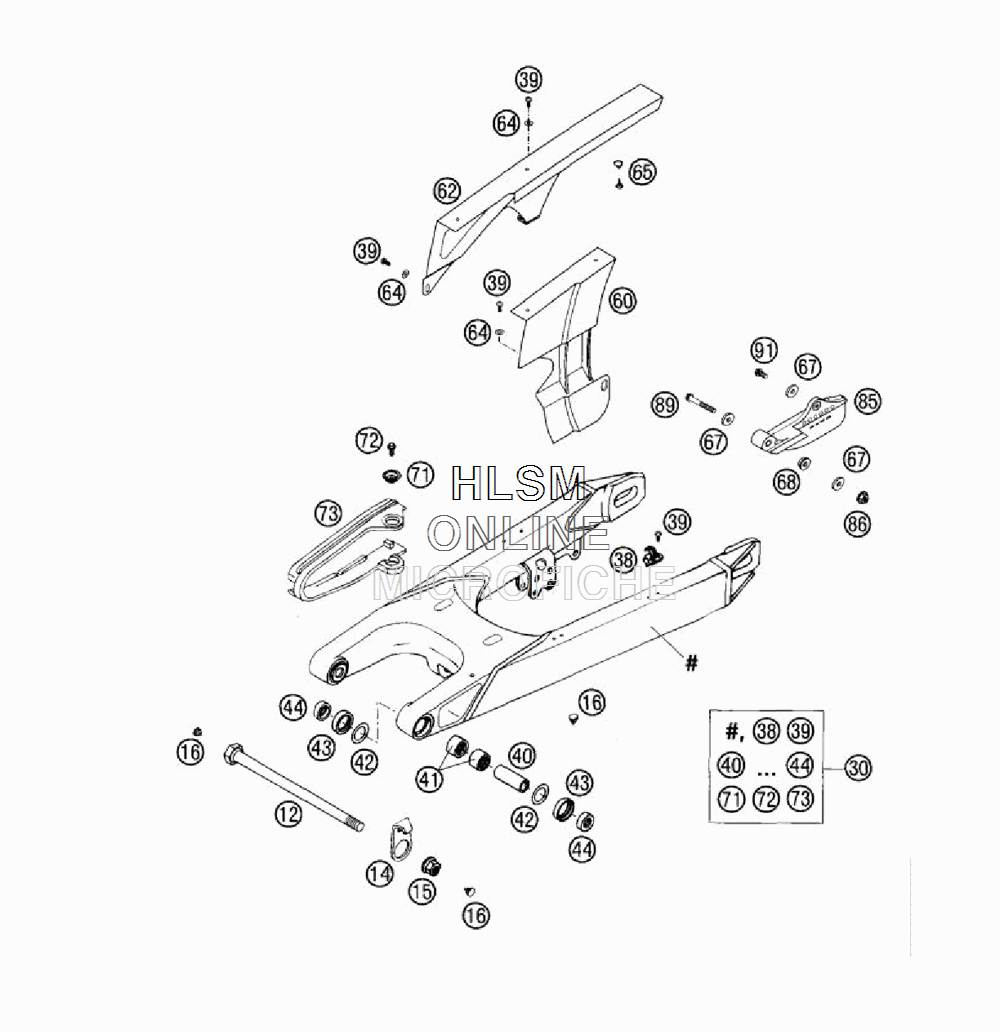

SWINGARM для Ktm 625 SXC LC4 - 2004 года выпуска

  • №
    Артикул
    Название
  • 12
    54603014100 SWINGARM BOLT KPL. L=250
    SWINGARM BOLT KPL. L=250
  • 14
    50230211000 BRAKE HOSE GUIDE
    BRAKE HOSE GUIDE
  • 15
    54603015000 SELF LOCKING NUT M14X1,5 WS=19
    SELF LOCKING NUT M14X1,5 WS=19
  • 16
    54403135000 PLASTIC CAP SFL10
    PLASTIC CAP SFL10
  • 30
    58404030344 SWINGARM CPL.
    SWINGARM CPL.
  • 38
    54611076100 RETAIN.CLAMP FOR BRAKE HOSE
    RETAIN.CLAMP FOR BRAKE HOSE
  • 39
    0010050103 SPECIAL SCREW M 5,0X10
    SPECIAL SCREW M 5,0X10
  • 40
    50203081700 BUSHING SLEEVE 15X20X38,75
    BUSHING SLEEVE 15X20X38,75
  • 41
    59004031000 NEEDLE BUSH HK2012V
    NEEDLE BUSH HK2012V
  • 42
    59004033100 WASHER 20X32X0,8
    WASHER 20X32X0,8
  • 43
    0760253270 SHAFT SEAL RING 25X32X7
    SHAFT SEAL RING 25X32X7
  • 44
    54603090000 BUCKET ESHAFTSEALRING 15X25X9
    BUCKET ESHAFTSEALRING 15X25X9
  • 60
    58307060000 CHAINGUARD SMALL
    CHAINGUARD SMALL
  • 62
    58307060250 CHAINGUARD LARGE
    CHAINGUARD LARGE
  • 64
    0021050003 WASHER DIN9021-A 5,3
    WASHER DIN9021-A 5,3
  • 65
    20012062055 HOLLOW RIVET TWO PARTS
    HOLLOW RIVET TWO PARTS
  • 67
    50232050003 STEEL WASHER 6,2X18X2 DACROMET
    STEEL WASHER 6,2X18X2 DACROMET
  • 68
    58404060150 COLLARED BUSH 6,2X10X20X6
    COLLARED BUSH 6,2X10X20X6
  • 71
    72210079000 BUCKET
    BUCKET
  • 72
    0015060103 HH COLLAR SCREW M 6X10 WS=8
    HH COLLAR SCREW M 6X10 WS=8
  • 73
    58307073000 CHAIN SLIDING GUARD
    CHAIN SLIDING GUARD
  • 85
    58404070000 CHAIN GUIDE CPL. REAR
    CHAIN GUIDE CPL. REAR
  • 86
    56509064100 SELF LOCKING NUT M6 10.9
    SELF LOCKING NUT M6 10.9
  • 89
    0015060553 HH COLLAR SCREW M 6X55 WS=8
    HH COLLAR SCREW M 6X55 WS=8
  • 91
    0015060163 HH COLLAR SCREW M 6X16 WS=8
    HH COLLAR SCREW M 6X16 WS=8
