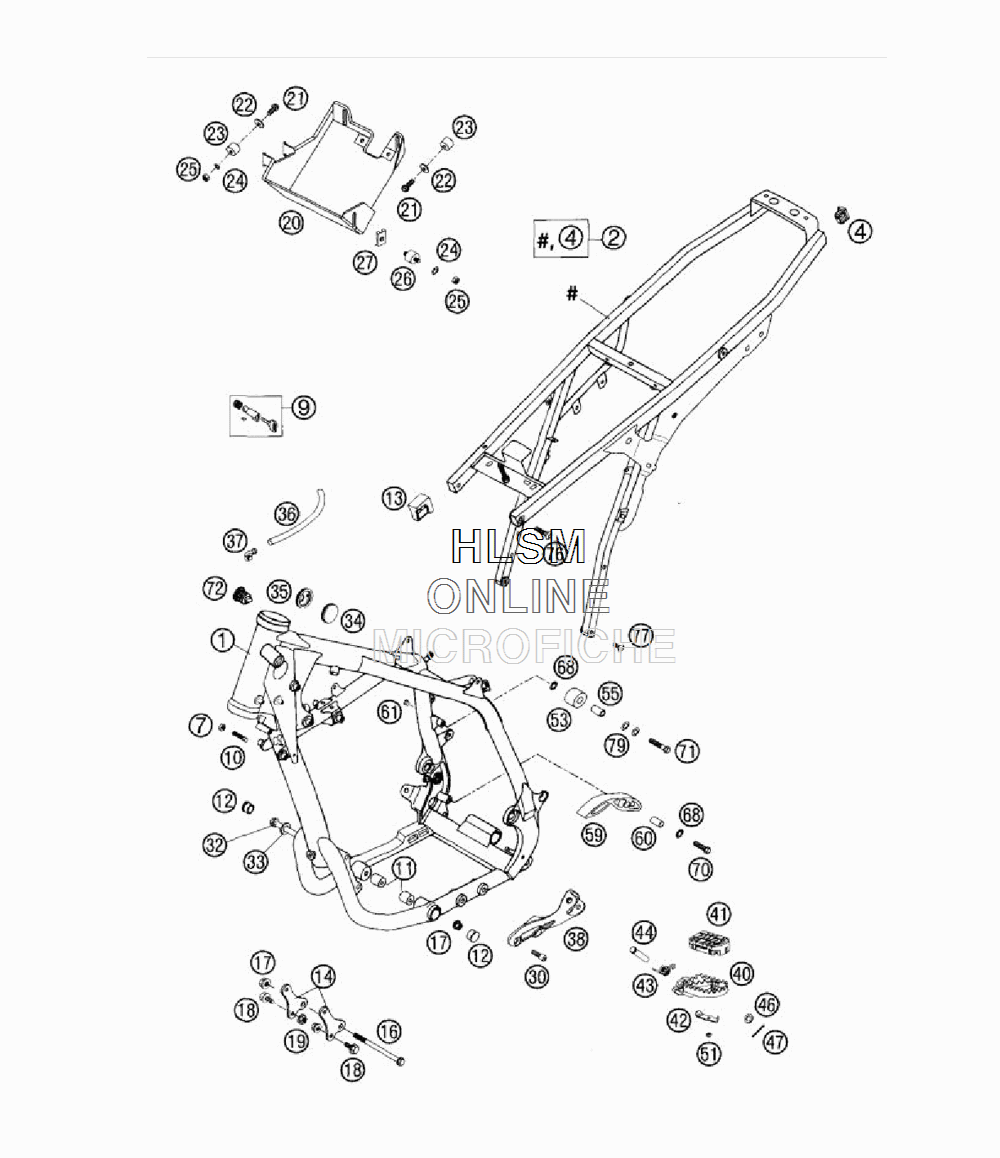

FRAME W/ SUB FRAME для Ktm 625 SXC LC4 - 2004 года выпуска

  • №
    Артикул
    Название
  • 1
    5830310164490 FRAME CPL. "I4"
    FRAME CPL. "I4"
  • 2
    5840300234490 SUBFRAME CPL. STEEL SILVER
    SUBFRAME CPL. STEEL SILVER
  • 4
    58303002090 PLUG 12 X 17 MM
    PLUG 12 X 17 MM
  • 7
    0934080003 HEXAGON NUT DIN0934-M 8
    HEXAGON NUT DIN0934-M 8
  • 9
    71003007000 STEERING HEAD LOCK CPL. ZADI
    STEERING HEAD LOCK CPL. ZADI
  • 10
    59001037000 SPECIAL SCREW M8X26 WS=10
    SPECIAL SCREW M8X26 WS=10
  • 11
    58003012000 SPACER ROLLER 10,3X20X22
    SPACER ROLLER 10,3X20X22
  • 12
    71001012100 PVC CAP D=22MM
    PVC CAP D=22MM
  • 13
    58307015000 TANK SUPPORT
    TANK SUPPORT
  • 14
    58303055000 ENGINE SUPPORT AGW
    ENGINE SUPPORT AGW
  • 16
    58403013000 ENGINE BRAC.SCREW M10X110 WS13
    ENGINE BRAC.SCREW M10X110 WS13
  • 17
    54630044000 COLLAR NUT M10 WS=13
    COLLAR NUT M10 WS=13
  • 18
    49109481052 HH COLLAR SCREW M 8X16 WS=13
    HH COLLAR SCREW M 8X16 WS=13
  • 19
    54310086200 SELF LOCKING NUT M8 10.9
    SELF LOCKING NUT M8 10.9
  • 20
    58403002370 BATTERY BOX
    BATTERY BOX
  • 21
    0015060103 HH COLLAR SCREW M 6X10 WS=8
    HH COLLAR SCREW M 6X10 WS=8
  • 22
    0021060003 WASHER DIN9021-A 6,4
    WASHER DIN9021-A 6,4
  • 23
    43205062100 RUBBER GROMMET 20X15-M6X10 (1)
    RUBBER GROMMET 20X15-M6X10 (1)
  • 24
    0797060003 TOOTH LOCK WASH. DIN6797-A 6,4
    TOOTH LOCK WASH. DIN6797-A 6,4
  • 25
    0934060003 HEXAGON NUT DIN0934-M 6
    HEXAGON NUT DIN0934-M 6
  • 26
    58403002010 RUBBER GROMMET 20X15-M6X8-(2)
    RUBBER GROMMET 20X15-M6X8-(2)
  • 27
    54603048100 RANGE CHANGE METAL NUT M6
    RANGE CHANGE METAL NUT M6
  • 30
    0912100250 AH SCREW DIN6912-M10X25,10.9,L
    AH SCREW DIN6912-M10X25,10.9,L
  • 32
    58403014000 ENGINE BRAC.SCREW M10X160 WS13
    ENGINE BRAC.SCREW M10X160 WS13
  • 33
    31004001100 WASHER 10,5 X 21 X 3
    WASHER 10,5 X 21 X 3
  • 34
    54606004000 PLUG 37MM
    PLUG 37MM
  • 35
    54606004100 PLUG 37MM PERFORATED
    PLUG 37MM PERFORATED
  • 36
    55007016001 PVC-HOSE 7X10 PER METRE
    PVC-HOSE 7X10 PER METRE
  • 37
    50303089000 ANGEL PIECE
    ANGEL PIECE
  • 38
    58403038000 FOOTREST BRACKET L/S ALU
    FOOTREST BRACKET L/S ALU
  • 40
    59003040250 FOOT PED L/S SILVER
    FOOT PED L/S SILVER
  • 40
    59003041250 FOOT PED R/S SILVER
    FOOT PED R/S SILVER
  • 41
    60003040010 FOOTREST RUBBER FRONT L/S
    FOOTREST RUBBER FRONT L/S
  • 41
    60003041010 FOOTREST RUBBER FRONT R/S
    FOOTREST RUBBER FRONT R/S
  • 42
    60003044010 CLOSING PANEL FRONT L/S R/S
    CLOSING PANEL FRONT L/S R/S
  • 43
    54603041000 FOOTREST SPRING L/S & R/S
    FOOTREST SPRING L/S & R/S
  • 44
    54803044000 BOLT FOR FOOT PED
    BOLT FOR FOOT PED
  • 46
    0125100003 WASHER DIN0125-A10,5
    WASHER DIN0125-A10,5
  • 47
    0094032253 PIN DIN0094-3,2X25 STEEL
    PIN DIN0094-3,2X25 STEEL
  • 51
    0985050003 SELF LOCKING NUT DIN0985-M 5
    SELF LOCKING NUT DIN0985-M 5
  • 53
    58403060000 CHAIN ROLL 12X28X22
    CHAIN ROLL 12X28X22
  • 55
    58403060065 BUSH CHAIN ROLL 8X12X23
    BUSH CHAIN ROLL 8X12X23
  • 58
    0985060003 SELF LOCK. NUT DIN0985-M 6
    SELF LOCK. NUT DIN0985-M 6
  • 59
    51103053000 CHAIN SLIDING PIECE BELOW
    CHAIN SLIDING PIECE BELOW
  • 60
    51103053051 BUSHING 8,2X10X20
    BUSHING 8,2X10X20
  • 61
    54403135000 PLASTIC CAP SFL10
    PLASTIC CAP SFL10
  • 68
    36003014000 LOCK WASHER 8MM
    LOCK WASHER 8MM
  • 70
    0015080303 HH COLLAR SCREW M 8X30 WS=10
    HH COLLAR SCREW M 8X30 WS=10
  • 71
    0015080453 HH COLLAR SCREW M 8X45 WS=10
    HH COLLAR SCREW M 8X45 WS=10
  • 72
    42007049000 PLASTIC CAP
    PLASTIC CAP
  • 76
    54510052100 SPROCKET SCREW-AH M8X26 WS=6
    SPROCKET SCREW-AH M8X26 WS=6
  • 77
    54610052000 SPROCKET SCREW-AH M8X20 WS=6
    SPROCKET SCREW-AH M8X20 WS=6
  • 79
    0125080003 WASHER DIN0125-A 8,4
    WASHER DIN0125-A 8,4
