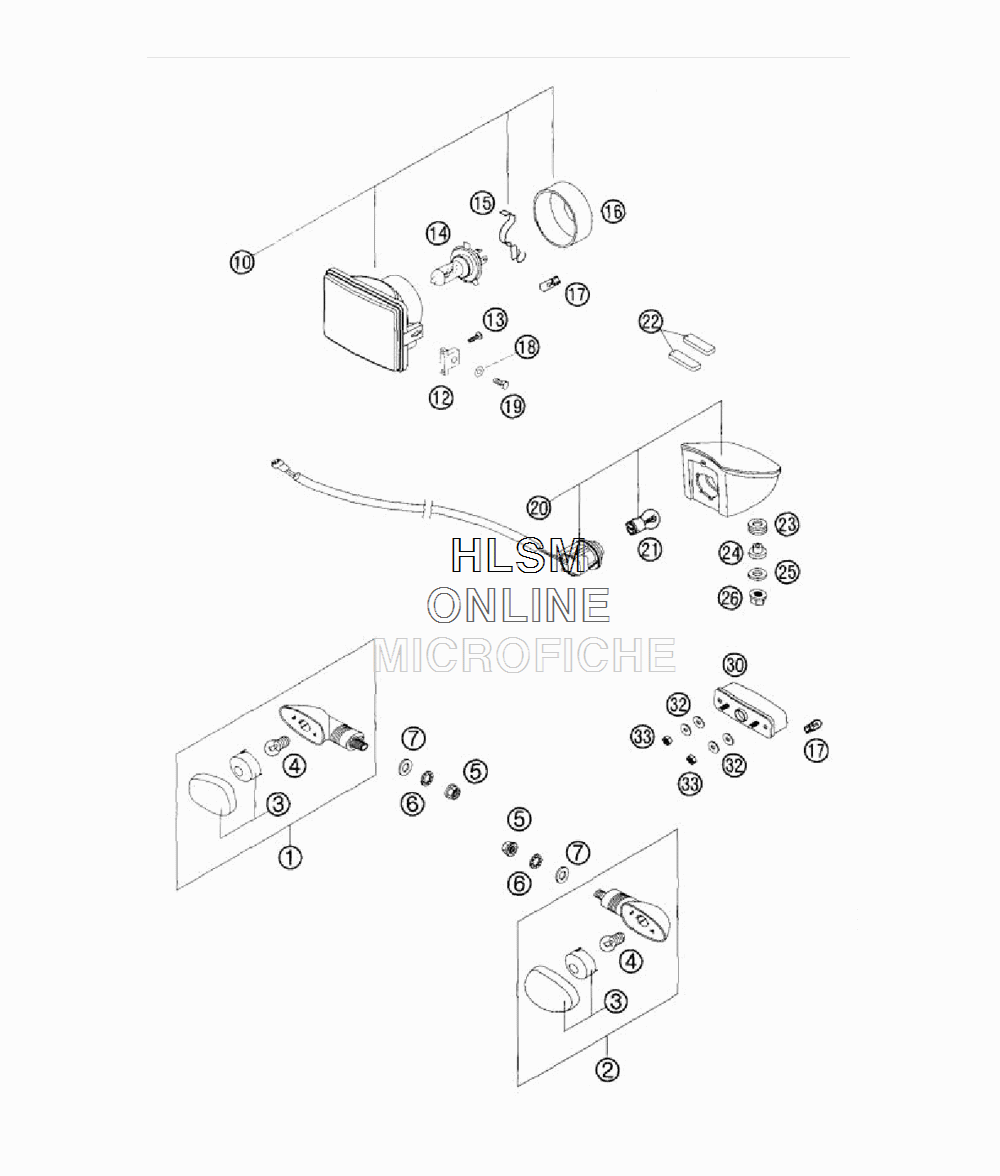

HEADLIGHT W/ REAR LIGHT - FLASHER для Ktm 625 SXC LC4 - 2004 года выпуска

  • №
    Артикул
    Название
  • 1
    58414026100 FLASHER CPL.FRONT R/S REAR L/S (WHITE)
    FLASHER CPL.FRONT R/S REAR L/S (WHITE)
  • 2
    58414025100 FLASHER CPL.FRONT L/S REAR R/S (WHITE)
    FLASHER CPL.FRONT L/S REAR R/S (WHITE)
  • 3
    58414028100 FLASHER LENS L/S & R/S (WHITE, ORANGE)
    FLASHER LENS L/S & R/S (WHITE, ORANGE)
  • 4
    44111015100 BULB 12V 10W (BA15S)
    BULB 12V 10W (BA15S)
  • 5
    58414030000 HH COLLAR NUT M10X1,25 WS=13
    HH COLLAR NUT M10X1,25 WS=13
  • 6
    0797100003 LOCK WASHER DIN6797-110,5 ZI
    LOCK WASHER DIN6797-110,5 ZI
  • 7
    0125100003 WASHER DIN0125-A10,5
    WASHER DIN0125-A10,5
  • 10
    59014002000 HEAD LIGHT 186(RI)1003202 R (RIGHT TRAFFIC)
    HEAD LIGHT 186(RI)1003202 R (RIGHT TRAFFIC)
  • 10
    59014002100 HEAD LIGHT 186(LE) 1003203 L (LEFT TRAFFIC)
    HEAD LIGHT 186(LE) 1003203 L (LEFT TRAFFIC)
  • 12
    58414010100 HEAD LIGHT SUPPORT
    HEAD LIGHT SUPPORT
  • 13
    0016040183 SCREW FOR PLASTIC D=4X18
    SCREW FOR PLASTIC D=4X18
  • 14
    54611038012 BULB HS1 12V 35/35W WHITE
    BULB HS1 12V 35/35W WHITE
  • 15
    49011436100 BULB HOLDER
    BULB HOLDER
  • 16
    50211537000 RUBBER CAP
    RUBBER CAP
  • 17
    49011435000 BULB 12V 5W (W2,1X9,5D)
    BULB 12V 5W (W2,1X9,5D)
  • 18
    0125060003 WASHER DIN0125-A 6,4
    WASHER DIN0125-A 6,4
  • 19
    0933060203 HH SCREW DIN0933-M 6X20
    HH SCREW DIN0933-M 6X20
  • 20
    58414040100 REAR LIGHT CPL.
    REAR LIGHT CPL.
  • 21
    58414042000 BULB 12V 21/5W (BAY15S)REINFO.
    BULB 12V 21/5W (BAY15S)REINFO.
  • 22
    58414040051 METAMOLL FOR REARLIGHT (15MM X 50MM X 5MM)
    METAMOLL FOR REARLIGHT (15MM X 50MM X 5MM)
  • 23
    41001052000 RUBBER SLEEVE D=12MM
    RUBBER SLEEVE D=12MM
  • 24
    58714048000 REAR LIGHT BUSHING
    REAR LIGHT BUSHING
  • 25
    51006097000 WASHER 6,2X22X1,ST30,W.GALV.
    WASHER 6,2X22X1,ST30,W.GALV.
  • 26
    56509064100 SELF LOCKING NUT M6 10.9
    SELF LOCKING NUT M6 10.9
  • 30
    58414047000 LICENSE-PLATE ILLUMINATION
    LICENSE-PLATE ILLUMINATION
  • 32
    0021050003 WASHER DIN9021-A 5,3
    WASHER DIN9021-A 5,3
  • 33
    0985050003 SELF LOCKING NUT DIN0985-M 5
    SELF LOCKING NUT DIN0985-M 5
