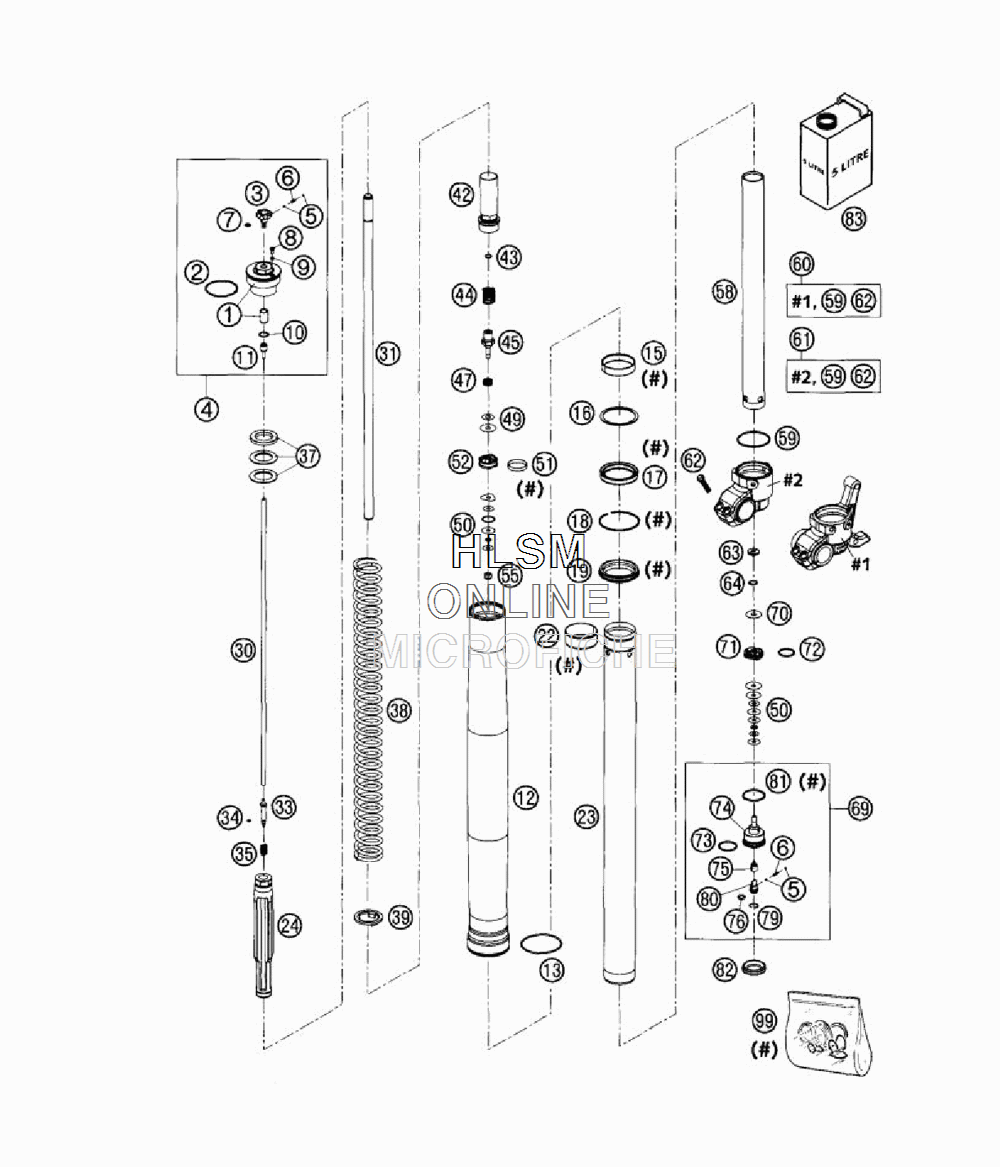

FORK LEGS - 43 для Ktm 625 SXC LC4 - 2004 года выпуска

  • №
    Артикул
    Название
  • 1
    48600020S SREW CAP+BUSH M51X1,5
    SREW CAP+BUSH M51X1,5
  • 2
    46810340 O-RING NBR 45X2
    O-RING NBR 45X2
  • 3
    48600018 KNOB REBOUNG ADJUSTER
    KNOB REBOUNG ADJUSTER
  • 4
    48600020S1 SCREW CAP M51X1,5 CPL.
    SCREW CAP M51X1,5 CPL.
  • 5
    40540603 STEEL BALL D=3MM
    STEEL BALL D=3MM
  • 6
    48600028 SPRING D=2,9 L=7,9
    SPRING D=2,9 L=7,9
  • 7
    48600044 O-RING NBR 6X1,5
    O-RING NBR 6X1,5
  • 8
    48600058 VENT SCREW M4X6
    VENT SCREW M4X6
  • 9
    48600009 O-RING NBR 3,7X1,6
    O-RING NBR 3,7X1,6
  • 10
    48600043 O-RING NBR 12X1,5
    O-RING NBR 12X1,5
  • 11
    48600019 HOLDER F.ADJUSTMENT TUBE D=4MM
    HOLDER F.ADJUSTMENT TUBE D=4MM
  • 12
    43570211 OUTER TUBE L=577 D=54/57
    OUTER TUBE L=577 D=54/57
  • 13
    43570099 GUIDING RING D=53MM
    GUIDING RING D=53MM
  • 15
    43570204 DU-BUSH 43X47X12 DAIDO
    DU-BUSH 43X47X12 DAIDO
  • 16
    43570092 SUPPORT RING 45 X 52,5 X 1,5
    SUPPORT RING 45 X 52,5 X 1,5
  • 17
    43570201 OIL SEAL RING 43 X 52,9 X 9,5
    OIL SEAL RING 43 X 52,9 X 9,5
  • 18
    43570008 LOCK WASHER SB53
    LOCK WASHER SB53
  • 19
    43570202 DUST STRIPPER 43 X 53,4 X 11,8
    DUST STRIPPER 43 X 53,4 X 11,8
  • 22
    43570203 DU-BUS 42X44X20
    DU-BUS 42X44X20
  • 23
    43570221 INNER TUBE D=43MM L=585MM
    INNER TUBE D=43MM L=585MM
  • 24
    43570142S HYDR.STOP L=200MM D=27,5 CPL.
    HYDR.STOP L=200MM D=27,5 CPL.
  • 30
    48600014 ADJUSTMENT TUBE L=512MM
    ADJUSTMENT TUBE L=512MM
  • 31
    48600250 PISTON ROD D=14 L=546 M11X1
    PISTON ROD D=14 L=546 M11X1
  • 33
    48600189 NEEDLE REBOUND
    NEEDLE REBOUND
  • 34
    48600046 O-RING NBR 3X1,5
    O-RING NBR 3X1,5
  • 35
    48600033 SPRING REBOUND NEEDLE C=4N/MM
    SPRING REBOUND NEEDLE C=4N/MM
  • 37
    48600036 SPACER 42X26,5X2,5
    SPACER 42X26,5X2,5
  • 37
    48600037 SPACER 42X26,5X5
    SPACER 42X26,5X5
  • 37
    48600053 SPACER 42X26,5X1,5
    SPACER 42X26,5X1,5
  • 38
    95010010S SPRING 3,6 N/MM SET D=4,6MM
    SPRING 3,6 N/MM SET D=4,6MM
  • 38
    95010002S SPRING 4,0 N/MM SET D=4,75MM
    SPRING 4,0 N/MM SET D=4,75MM
  • 38
    95010003S SPRING 4,2 N/MM SET D=4,9MM
    SPRING 4,2 N/MM SET D=4,9MM
  • 38
    95010012S SPRING 4,4 N/MM SET D=4,9MM
    SPRING 4,4 N/MM SET D=4,9MM
  • 38
    95010022S SPRING 5,0 N/MM SET D=5,0MM
    SPRING 5,0 N/MM SET D=5,0MM
  • 39
    43570131 INTERM. RING 26,2X38,5X3
    INTERM. RING 26,2X38,5X3
  • 42
    48600200S SCREW SLEEVE M29,3X1 L=65 CPL.
    SCREW SLEEVE M29,3X1 L=65 CPL.
  • 43
    48600239 O-RING NBR 8X1,25
    O-RING NBR 8X1,25
  • 44
    48600192 REBOUND SPRING D=15MM L=34,5MM
    REBOUND SPRING D=15MM L=34,5MM
  • 45
    48600203 TAB REBOUND D=3 03
    TAB REBOUND D=3 03
  • 47
    35480377 SPRING CHECK VALVE D=0,5
    SPRING CHECK VALVE D=0,5
  • 49
    48600062 CHECK VALVE 8X24X0,1
    CHECK VALVE 8X24X0,1
  • 49
    48600068 CHECK VALVE 8X18X0,1
    CHECK VALVE 8X18X0,1
  • 49
    48600215 CHECK VALVE 8X20X0,1
    CHECK VALVE 8X20X0,1
  • 49
    48600216 CHECK VALVE 8X22X0,1
    CHECK VALVE 8X22X0,1
  • 50
    48600063 SHIM 6X24X0,1
    SHIM 6X24X0,1
  • 50
    48600064 SHIM 6X22X0,1
    SHIM 6X22X0,1
  • 50
    48600065 SHIM 6X20X0,1
    SHIM 6X20X0,1
  • 50
    48600116 SHIM 6X24X0,1 DELTA
    SHIM 6X24X0,1 DELTA
  • 50
    48600139 SHIM 6X22X0,1 DELTA
    SHIM 6X22X0,1 DELTA
  • 50
    40540401 SHIM 6X14X0,1
    SHIM 6X14X0,1
  • 50
    40540402 SHIM 6X16X0,1
    SHIM 6X16X0,1
  • 50
    40540403 SHIM 6X18X0,1
    SHIM 6X18X0,1
  • 50
    40540414 SHIM 6X16X0,25
    SHIM 6X16X0,25
  • 50
    40540415 SHIM 6X18X0,25
    SHIM 6X18X0,25
  • 50
    40540447 SHIM 6X10X0,3
    SHIM 6X10X0,3
  • 50
    40541391 SHIM 6X11X0,3
    SHIM 6X11X0,3
  • 51
    48600060 PISTON RING 5X1X84
    PISTON RING 5X1X84
  • 52
    48600042 PISTON REBOUND D=27,7
    PISTON REBOUND D=27,7
  • 55
    40540486 NUT M6XO,5 REBOUND
    NUT M6XO,5 REBOUND
  • 58
    48600081 TUBE 29,3X1X390 D=8,5MM
    TUBE 29,3X1X390 D=8,5MM
  • 59
    43570023 O-RING NBR 41X2
    O-RING NBR 41X2
  • 60
    43570124S AXLE CLAMP L/S CPL.
    AXLE CLAMP L/S CPL.
  • 61
    43570123S AXLE CLAMP R/S CPL. USD43
    AXLE CLAMP R/S CPL. USD43
  • 62
    0015080253 HH COLLAR SCREW M 8X25 WS=10
    HH COLLAR SCREW M 8X25 WS=10
  • 63
    48600163 CHECK VALVE NUT M6XO,5 D=2
    CHECK VALVE NUT M6XO,5 D=2
  • 64
    48600202 SPRING CHECK VALVE D=0,7
    SPRING CHECK VALVE D=0,7
  • 69
    48600152S1 TAP COMPRESSION CPL.
    TAP COMPRESSION CPL.
  • 70
    48600061 CHECK VALVE 8X24X0,4
    CHECK VALVE 8X24X0,4
  • 71
    48600047 PISTON COMPRESSION D=27,9
    PISTON COMPRESSION D=27,9
  • 72
    46811499 O-RING NBR 21X2
    O-RING NBR 21X2
  • 73
    35480320 O-RING NBR 24X2
    O-RING NBR 24X2
  • 74
    48600152 TAP COMPRESSION
    TAP COMPRESSION
  • 75
    48600190 NEEDLE COMPRESSION
    NEEDLE COMPRESSION
  • 76
    48600049 O-RING NBR 8X2
    O-RING NBR 8X2
  • 79
    48600051 LOCK WASHER RB12
    LOCK WASHER RB12
  • 80
    48600034 COMPRESSION ADJ. SCREW
    COMPRESSION ADJ. SCREW
  • 81
    48600004 COPPER WASHER 29,5X33,5X1
    COPPER WASHER 29,5X33,5X1
  • 82
    48600141 RUBBER CAP D=35MM
    RUBBER CAP D=35MM
  • 83
    48600211S1 FORK OIL SAE 5
    FORK OIL SAE 5
  • 99
    R510 REPAIR-KIT GASKET 4357 MXMA
    REPAIR-KIT GASKET 4357 MXMA
