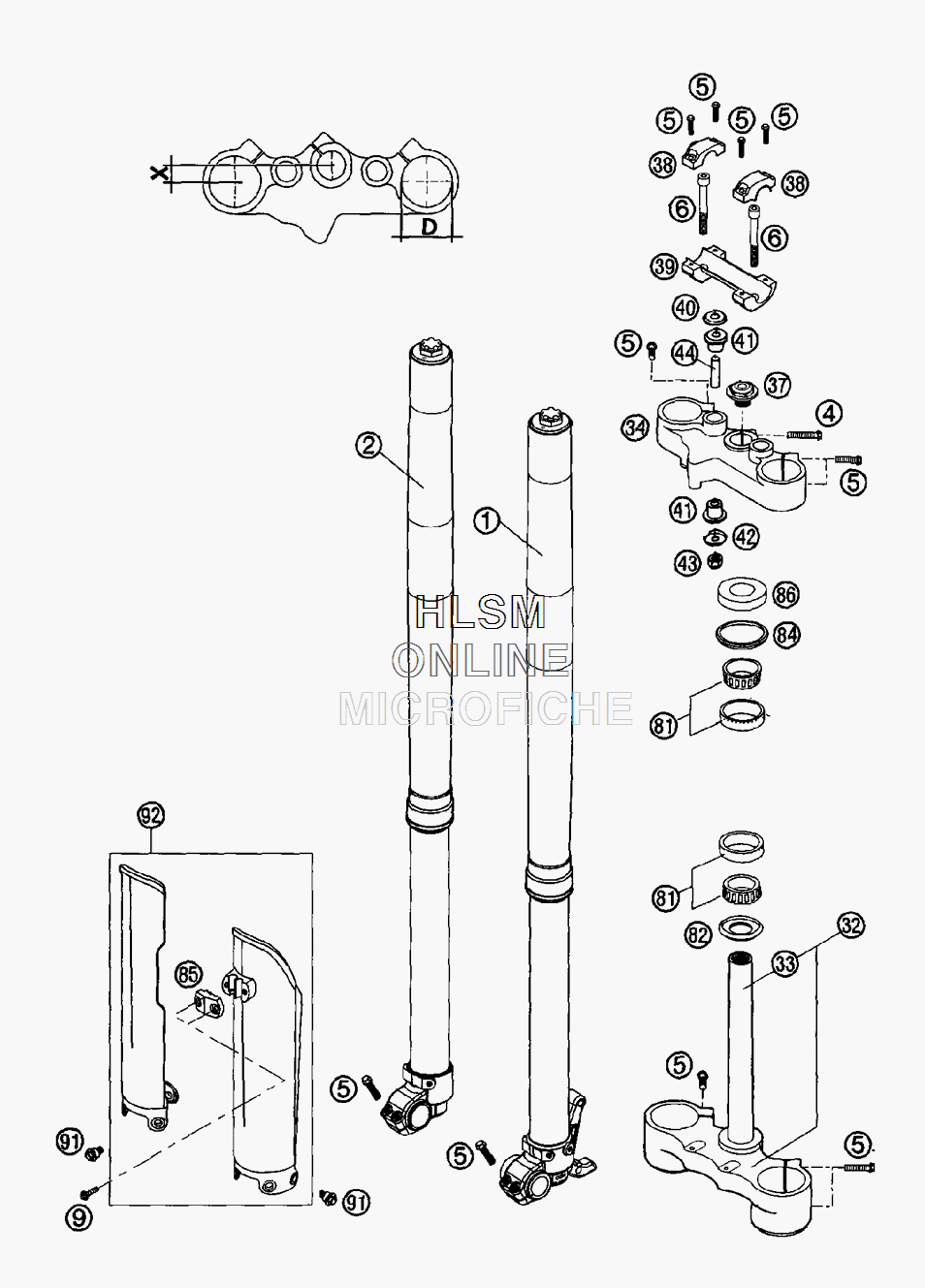

FRONT FORK - 48 для Ktm LC4 640 Adventure - 2003 года выпуска`
-
№АртикулНазвание
-
11418X728LS FORK LEG L/S WP48FORK LEG L/S WP48
-
21418X728RS FORK LEG R/S WP48FORK LEG R/S WP48
-
40015080353 HH COLLAR SCREW M 8X35 WS=10HH COLLAR SCREW M 8X35 WS=10
-
50015080303 HH COLLAR SCREW M8 X30 WS=10HH COLLAR SCREW M8 X30 WS=10
-
60984100703 AH SCREW DIN6912-M10X70AH SCREW DIN6912-M10X70
-
90017060203 SPECIAL SCREW T60 6X20 WS=6SPECIAL SCREW T60 6X20 WS=6
-
3258201032118 BOT.TRIPLE CLAMP X=18MM/D=60MMBOT.TRIPLE CLAMP X=18MM/D=60MM
-
3350101033100 FORK TUBE L=244FORK TUBE L=244
-
3458401034318 TOP TRIPLE CLAMP X=18MM/D=54MMTOP TRIPLE CLAMP X=18MM/D=54MM
-
3750301036000 STEER. HEAD SCREW M20X1,5 WS=27STEER. HEAD SCREW M20X1,5 WS=27
-
3859001038200 HANDLEBAR CLAMP D=28MMHANDLEBAR CLAMP D=28MM
-
3959001039100 HANDLEBAR SUPPORT 28MMHANDLEBAR SUPPORT 28MM
-
4056401042000 WASHER 10,5X32X2WASHER 10,5X32X2
-
4156401040000 RUBBER BUSHINGRUBBER BUSHING
-
4256401142000 WASHER 10,5X31WASHER 10,5X31
-
430982100003 SELF LOCK.NUT DIN0982-M10 HIGHSELF LOCK.NUT DIN0982-M10 HIGH
-
4456401041100 SPACER TUBE 10,2X12X44SPACER TUBE 10,2X12X44
-
8154201081000 TAPERED ROLLER BEARING CPL.TAPERED ROLLER BEARING CPL.
-
8254601084100 O-RING SUPPORT W. SEALING LIPO-RING SUPPORT W. SEALING LIP
-
8454601184000 STEARING HEAD GASKET TOPSTEARING HEAD GASKET TOP
-
8558201085000 CLAMP FSPEED CABLE D=8MMCLAMP FSPEED CABLE D=8MM
-
8654201086000 STEERING HEAD COVERSTEERING HEAD COVER
-
9159001092050 SPECIAL SCREW M6X12,5 WS=8SPECIAL SCREW M6X12,5 WS=8
-
925900109400030 FORK PROTECT. L/S+R/S BLACKFORK PROTECT. L/S+R/S BLACK
