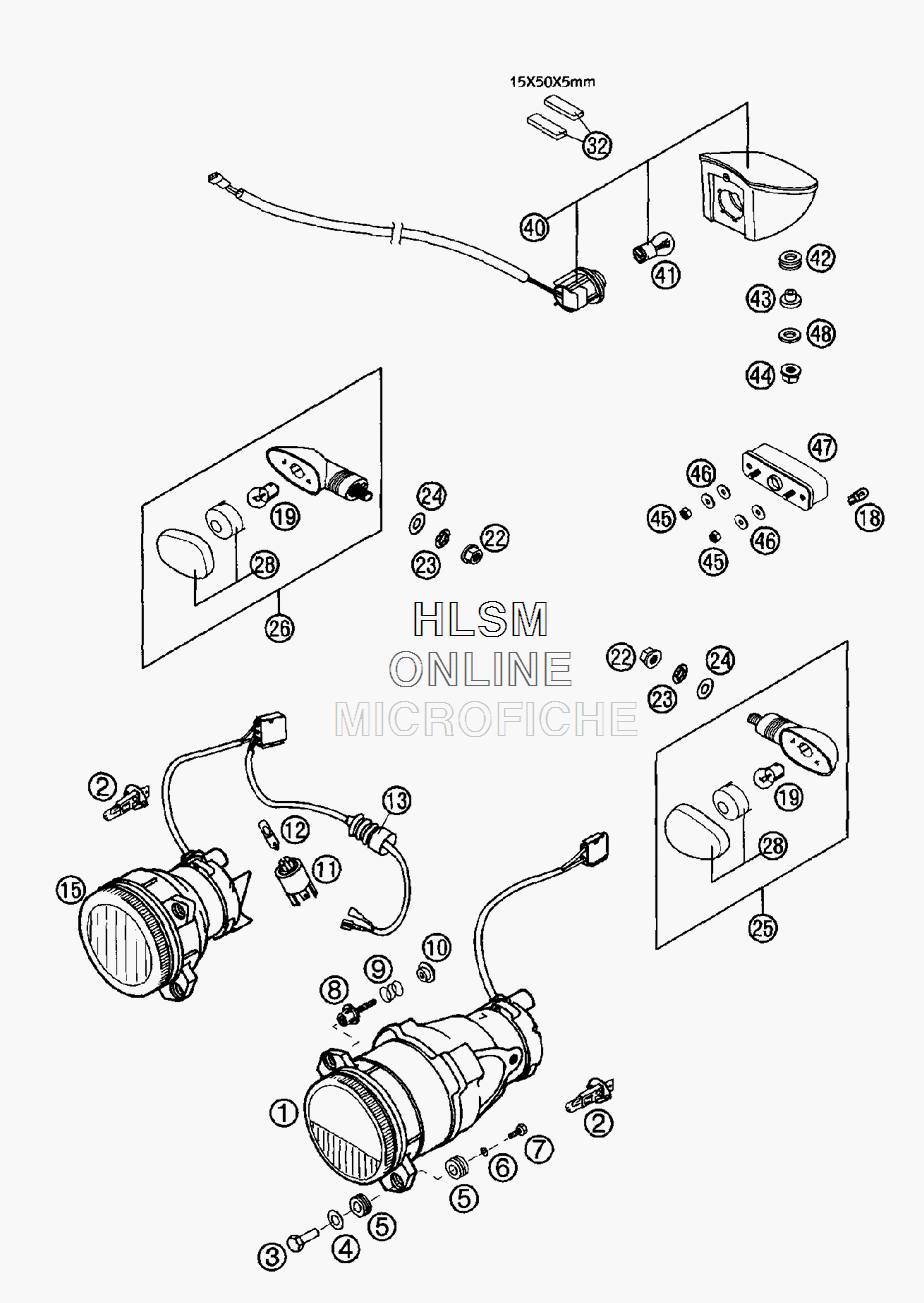

HEAD LIGHT - REAR LIGHT W/ FLASHER для Ktm LC4 640 Adventure - 2003 года выпуска
-
№АртикулНазвание
-
158311010000 HEADLIGHT LOW BEAM DUKE'94 (RHT)HEADLIGHT LOW BEAM DUKE'94 (RHT)
-
258311038000 BULB H1 12V 55W WHITE (BASE P14,5S)BULB H1 12V 55W WHITE (BASE P14,5S)
-
358311044000 SPECIAL NUT M5X25 WS=10SPECIAL NUT M5X25 WS=10
-
40125080003 WASHER DIN0125-A 8,4WASHER DIN0125-A 8,4
-
531008060000 RUBBER SLEEVE D=8MM OPENRUBBER SLEEVE D=8MM OPEN
-
60797050003 TOOTH LOCK WASH. DIN6797-J 5,3TOOTH LOCK WASH. DIN6797-J 5,3
-
70933050123 HH SCREW DIN0933-M 5X12HH SCREW DIN0933-M 5X12
-
858311011000 ADJUSTING SCREW M5X30 CPL.ADJUSTING SCREW M5X30 CPL.
-
912003007052 SPRING L=16MMSPRING L=16MM
-
1054603073000 COLLAR BUSHING 5 X 10 X 6 ALUCOLLAR BUSHING 5 X 10 X 6 ALU
-
1158311039000 BULB SOCKET BA9SBULB SOCKET BA9S
-
1244111005100 BULB 12V 2W BA9SBULB 12V 2W BA9S
-
1358302126000 CLUTCH LEVER BOOTCLUTCH LEVER BOOT
-
1558311110000 HEADLIGHT HIGHBEAM DUKEHEADLIGHT HIGHBEAM DUKE
-
1849011435000 BULB 12V 5W (W2,1X9,5D)BULB 12V 5W (W2,1X9,5D)
-
1944111015100 BULB 12V 10W (BA15S)BULB 12V 10W (BA15S)
-
2258414030000 HH COLLAR NUT M10X1,25 WS=13HH COLLAR NUT M10X1,25 WS=13
-
230797100003 LOCK WASHER DIN6797-J10,5 ZLLOCK WASHER DIN6797-J10,5 ZL
-
240125100003 WASHER DIN0125-A10,5WASHER DIN0125-A10,5
-
2558414025100 FLASHER CPL.FRONT L/S REAR R/S (WHITE)FLASHER CPL.FRONT L/S REAR R/S (WHITE)
-
2658414026100 FLASHER CPL.FRONT R/S REAR L/S (WHITE)FLASHER CPL.FRONT R/S REAR L/S (WHITE)
-
2858414028100 FLASHER LENS L/S & R/S (WHITE)FLASHER LENS L/S & R/S (WHITE)
-
3258414040051 METAMOLL FOR REARLIGHTMETAMOLL FOR REARLIGHT
-
4058414040100 REAR LIGHT CPL.REAR LIGHT CPL.
-
4158414042000 BULB 12V 21/5W (BAY15S) REINFO,BULB 12V 21/5W (BAY15S) REINFO,
-
4241001052000 RUBBER SLEEVE D=12MMRUBBER SLEEVE D=12MM
-
4358714048000 REAR LIGHT BUSHINGREAR LIGHT BUSHING
-
4456509064100 SELF LOCKING NUT M6 10.9SELF LOCKING NUT M6 10.9
-
450985050003 SELF LOCKING NUT DIN0985-M 5SELF LOCKING NUT DIN0985-M 5
-
460021050003 WASHER DIN9021-A 5,3WASHER DIN9021-A 5,3
-
4758414047000 LICENSE-PLATE ILLUMINATIONLICENSE-PLATE ILLUMINATION
-
480021060003 WASHER DIN9021-A 6,4WASHER DIN9021-A 6,4
