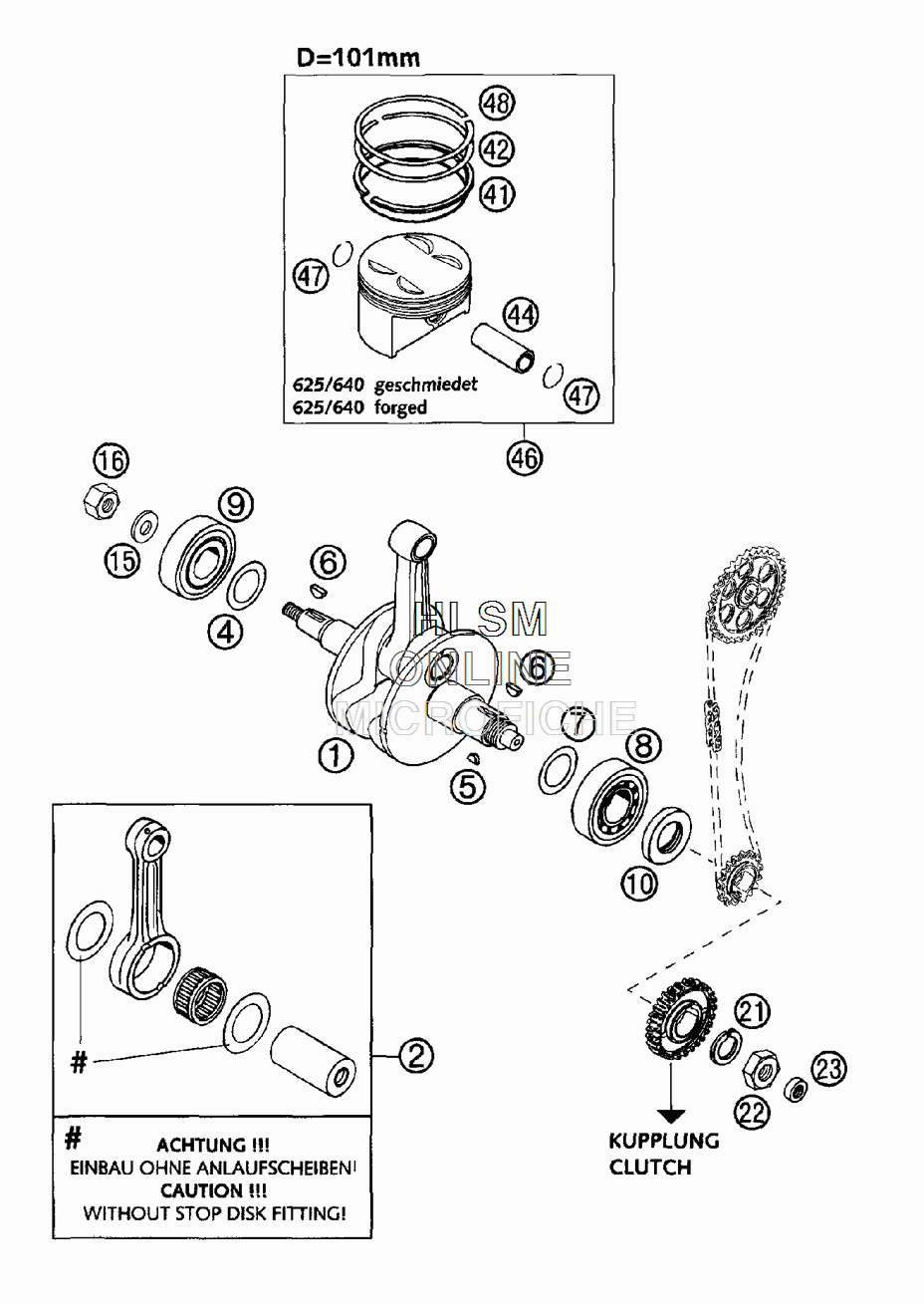

CRANKSHAFT W/ PISTON для Ktm LC4 640 Adventure - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    58430018200 CRANKSHAFT (STROKE 78MM)
    CRANKSHAFT (STROKE 78MM)
  • 2
    58330015044 CONNECTING ROD REPAIR SET
    CONNECTING ROD REPAIR SET
  • 4
    56530081000 SHIM WASHER 36X48X0,10
    SHIM WASHER 36X48X0,10
  • 4
    56530081100 SHIM WASHER 36X48X0,15
    SHIM WASHER 36X48X0,15
  • 4
    56530081300 SHIM WASHER 36X48X0,30
    SHIM WASHER 36X48X0,30
  • 5
    0888030050 WOODRUFF KEY DIN6888-3X5X13
    WOODRUFF KEY DIN6888-3X5X13
  • 6
    6946005 WOODRUFF KEY 5X6,5 HARDED
    WOODRUFF KEY 5X6,5 HARDED
  • 7
    56030081000 THRUST WASHER 30,5X45X0,10
    THRUST WASHER 30,5X45X0,10
  • 7
    56030081100 THRUST WASHER 30,7X47X0,15
    THRUST WASHER 30,7X47X0,15
  • 7
    56030081200 THRUST WASHER 30,5X45X0,30
    THRUST WASHER 30,5X45X0,30
  • 8
    58030082000 CYL.ROLLER BEARING NJ 306 C3
    CYL.ROLLER BEARING NJ 306 C3
  • 9
    56530123000 CYL. ROLLER BEARING NJ 207 ECP
    CYL. ROLLER BEARING NJ 207 ECP
  • 10
    0760304772 SH.SEAL RING 30X47X7 BSL VITON
    SH.SEAL RING 30X47X7 BSL VITON
  • 15
    58330095000 STEEL WASHER 16 X 30 X 3
    STEEL WASHER 16 X 30 X 3
  • 16
    58430028000 HEX NUT M16X1,25 L/S
    HEX NUT M16X1,25 L/S
  • 21
    58030019000 LOCKING RING VSK 20
    LOCKING RING VSK 20
  • 22
    0936200155 HEXAGON NUT DIN0936-M20X1,5
    HEXAGON NUT DIN0936-M20X1,5
  • 23
    0760122270 SHAFT SEAL RING 12 X 22 X 7 B
    SHAFT SEAL RING 12 X 22 X 7 B
  • 41
    58330031300 OIL SCRAPER RING 101X2,5
    OIL SCRAPER RING 101X2,5
  • 42
    58330932100 TAP.COMPR.PISTON RING 101X1,25
    TAP.COMPR.PISTON RING 101X1,25
  • 44
    58330833000 PISTON PIN 22 X 13 X 60
    PISTON PIN 22 X 13 X 60
  • 46
    58430007100I PISTON I CPL. D=101
    PISTON I CPL. D=101
  • 46
    58430007100II PISTON II CPL. D=101
    PISTON II CPL. D=101
  • 47
    58430074000 CIRCLIP 22 X 1,6
    CIRCLIP 22 X 1,6
  • 48
    58430032000 L-RING 101X93,5X1,5
    L-RING 101X93,5X1,5
