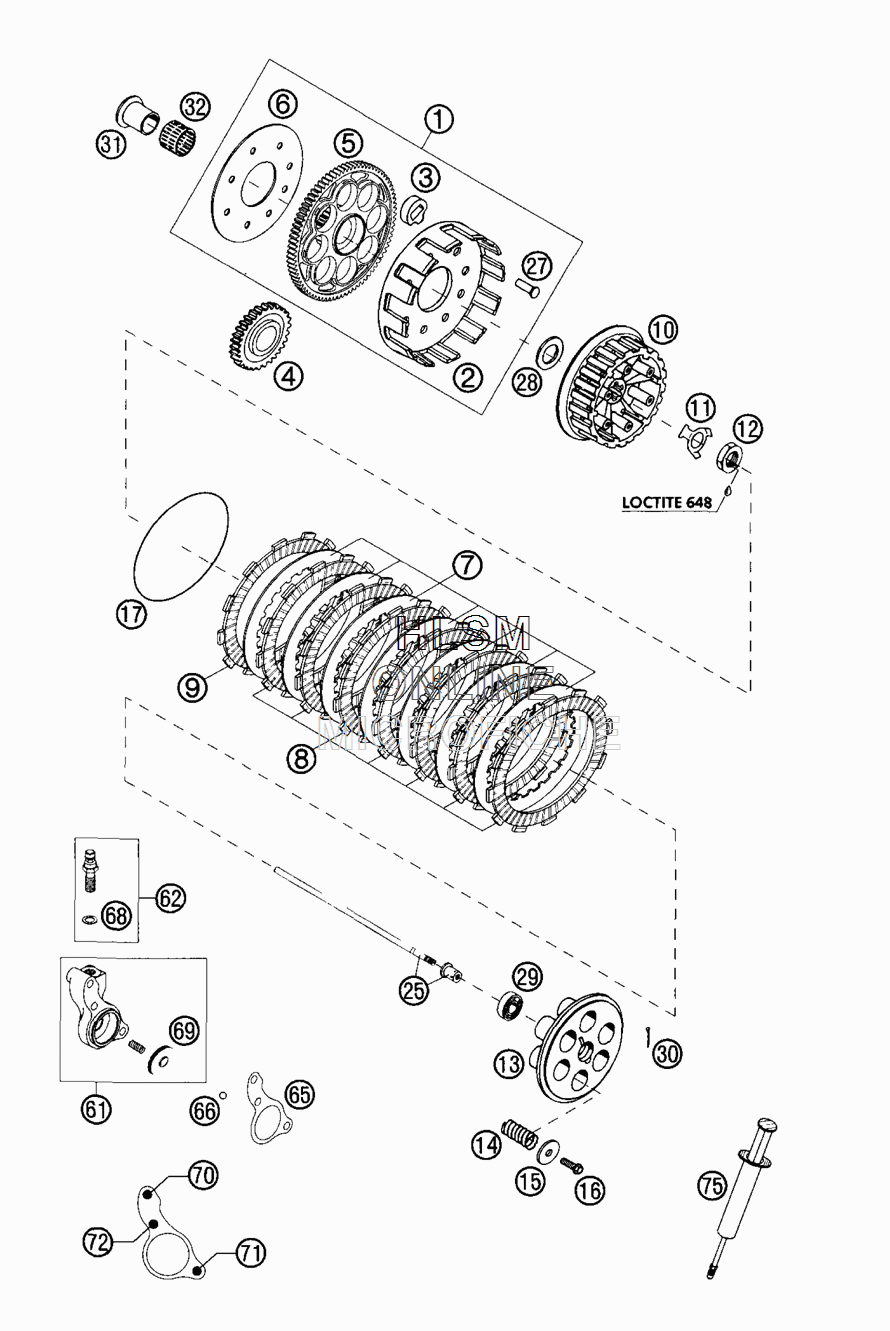

CLUTCH для Ktm LC4 640 Adventure - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    58432001044 OUT.CLUTCH HUB CPL.79-T
    OUT.CLUTCH HUB CPL.79-T
  • 2
    58332001000 OUTER CL.HUB LOOSE D=160MM
    OUTER CL.HUB LOOSE D=160MM
  • 3
    58332026000 DAMPING ELEMENT
    DAMPING ELEMENT
  • 4
    58532000131 PRIMARY GEAR WHEEL 31-T
    PRIMARY GEAR WHEEL 31-T
  • 5
    58532000079 CLUTCH WHEEL 79-T
    CLUTCH WHEEL 79-T
  • 6
    58332028000 BRACKET 57 X 132 X 1,5
    BRACKET 57 X 132 X 1,5
  • 7
    58332112000 STEEL DISK 1,5 MM
    STEEL DISK 1,5 MM
  • 8
    58332011300 LINING DISK 2,7MM FCC
    LINING DISK 2,7MM FCC
  • 9
    58332111300 LINING DISK TURN OUT FCC
    LINING DISK TURN OUT FCC
  • 10
    58332002200 INNER CLUTCH HUB
    INNER CLUTCH HUB
  • 11
    58332018000 LOCK WASHER
    LOCK WASHER
  • 12
    0936181505 HEXAGON NUT DIN0936-M18X1,5 R.
    HEXAGON NUT DIN0936-M18X1,5 R.
  • 13
    58332003200 PRESSURE CAP LC4/LC4-E
    PRESSURE CAP LC4/LC4-E
  • 14
    58332080000 CLUTCH SPRING 2,8 X 37
    CLUTCH SPRING 2,8 X 37
  • 15
    58432081000 WASHER 6,5 X 20 X 2
    WASHER 6,5 X 20 X 2
  • 16
    0015060203 HH COLLAR SCREW M 6X20 WS=8
    HH COLLAR SCREW M 6X20 WS=8
  • 17
    0770116030 O-RING 116,00X3,00 HNBR 70
    O-RING 116,00X3,00 HNBR 70
  • 25
    57332017044 PUSH ROD L=215MM CPL. (WITH PRESSURE BOLT)
    PUSH ROD L=215MM CPL. (WITH PRESSURE BOLT)
  • 27
    58332007000 RIVET 6 X 23 X 11,2
    RIVET 6 X 23 X 11,2
  • 28
    57532013000 SUPPORTWASHER 22,2X35X3 HARDE.
    SUPPORTWASHER 22,2X35X3 HARDE.
  • 29
    0625060016 GROOV.BALL BEAR. 6001.2RSR C3
    GROOV.BALL BEAR. 6001.2RSR C3
  • 30
    0094020163 PIN DIN0094-2,0X16
    PIN DIN0094-2,0X16
  • 31
    50332070000 INNER RING WITH COLLAR
    INNER RING WITH COLLAR
  • 32
    56532095000 NEEDLE BEARING K26X30X22ZW.KSE
    NEEDLE BEARING K26X30X22ZW.KSE
  • 61
    50332061044 CYLINDER CPL.
    CYLINDER CPL.
  • 62
    50332062000 HOLLOW SCREW CPL. M 10X1
    HOLLOW SCREW CPL. M 10X1
  • 65
    50332065053 CLUTCH RELEASE GASKET 0,75MM
    CLUTCH RELEASE GASKET 0,75MM
  • 66
    0401070003 BALL DIN5401-7
    BALL DIN5401-7
  • 68
    42013226000 CU-SEAL RING DIN7603-10X16X1
    CU-SEAL RING DIN7603-10X16X1
  • 69
    50332066000 PISTON W. O-RING 125/200
    PISTON W. O-RING 125/200
  • 70
    0912060303 AH SCREW DIN0912-M 6X30
    AH SCREW DIN0912-M 6X30
  • 71
    0984060163 AH SCREW DIN6912-M 6X16 WITH LOW HEAD
    AH SCREW DIN6912-M 6X16 WITH LOW HEAD
  • 72
    0912060253 AH SCREW DIN0912-M 6X25
    AH SCREW DIN0912-M 6X25
  • 75
    50329050000 VENT INJEKTION HYDR. CLUTCH
    VENT INJEKTION HYDR. CLUTCH
