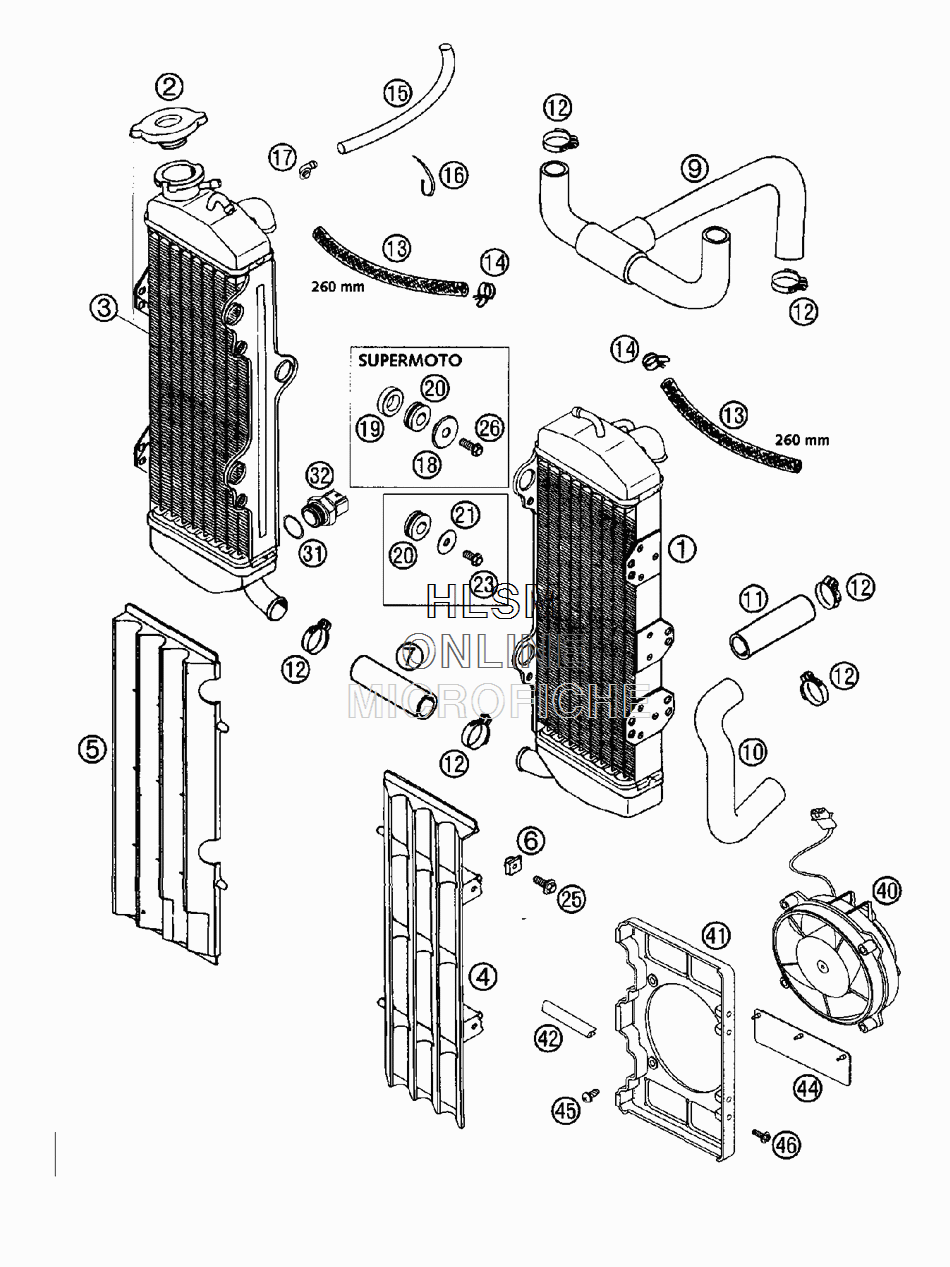

COOLING SYSTEM для Ktm LC4 640 Adventure - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    58335008000 RADIATOR L/S (45246) BLACK
    RADIATOR L/S (45246) BLACK
  • 2
    58035016000 RADIATOR CAP SMALL 19,6 PSI
    RADIATOR CAP SMALL 19,6 PSI
  • 3
    58335008200 RADIATOR R/S (45.403) SXC BLACK
    RADIATOR R/S (45.403) SXC BLACK
  • 4
    58035034100 RADIATOR PROTECT. L/S WHITE
    RADIATOR PROTECT. L/S WHITE
  • 4
    58035034000 RADIATOR PROTECTOR L/S BLACK
    RADIATOR PROTECTOR L/S BLACK
  • 5
    58035134100 RADIATOR PROTECT. R/S WHITE
    RADIATOR PROTECT. R/S WHITE
  • 5
    58035134000 RADIATOR PROTECTOR R/S BLACK
    RADIATOR PROTECTOR R/S BLACK
  • 6
    50235033300 SNAP-NUT HOLDER M6 KP142
    SNAP-NUT HOLDER M6 KP142
  • 7
    56535025001 1 RADIATOR HOSE 18X25 PER METRE
    RADIATOR HOSE 18X25 PER METRE
  • 9
    58335026000 PREFORMED HOSE LC4'94
    PREFORMED HOSE LC4'94
  • 10
    58435025700 PREFORMED HOSE 18X25 PUMP-CYL.
    PREFORMED HOSE 18X25 PUMP-CYL.
  • 11
    58335024001 1 RADIATOR HOSE 20X26
    RADIATOR HOSE 20X26
  • 12
    10001020000 HOSE CLAMP GEMI 16-27
    HOSE CLAMP GEMI 16-27
  • 13
    54435024001 5 HOSE ID 7,5 PER METER
    HOSE ID 7,5 PER METER
  • 14
    58031005000 CLAMP YDNAC 10128 12MM
    CLAMP YDNAC 10128 12MM
  • 15
    55007016001 2 PVC-HOSE 7X10 PER METRE
    PVC-HOSE 7X10 PER METRE
  • 16
    44011076200 CABLE TIE 200/3,6MM BLACK
    CABLE TIE 200/3,6MM BLACK
  • 17
    50303089000 ANGEL PIECE
    ANGEL PIECE
  • 18
    58435002000 BUSHING F. RADIATOR SUPPORT
    BUSHING F. RADIATOR SUPPORT
  • 19
    58435003000 BUSHING F. RADIATOR DISTANCE
    BUSHING F. RADIATOR DISTANCE
  • 20
    41001052000 RUBBER SLEEVE D=12MM
    RUBBER SLEEVE D=12MM
  • 21
    0021060003 WASHER DIN9021-A 6,4
    WASHER DIN9021-A 6,4
  • 23
    0015060123 HH COLLAR SCREW M 6X12 WS=8
    HH COLLAR SCREW M 6X12 WS=8
  • 25
    0014060153 HH COLLAR SCREW M 6X15 WS=8
    HH COLLAR SCREW M 6X15 WS=8
  • 26
    0015060163 HH COLLAR SCREW M 6X16 WS=8
    HH COLLAR SCREW M 6X16 WS=8
  • 31
    0770017015 O-RING 17X1,5 NB75
    O-RING 17X1,5 NB75
  • 32
    58435045098 THERMOSWITCH C FOR FAN 98
    THERMOSWITCH C FOR FAN 98
  • 40
    58435041000 FAN CPL. 12V
    FAN CPL. 12V
  • 41
    58435044000 FAN CAP
    FAN CAP
  • 42
    58312085100 2 EDGE PROTECTOR FOR COVER
    EDGE PROTECTOR FOR COVER
  • 44
    58435044050 FAN FLAP RUBBER
    FAN FLAP RUBBER
  • 45
    0081500181 SCREW FOR PLASTIC D=5X18
    SCREW FOR PLASTIC D=5X18
  • 46
    0017060203 SPECIAL SCREW T60 6X20 WS=6
    SPECIAL SCREW T60 6X20 WS=6
