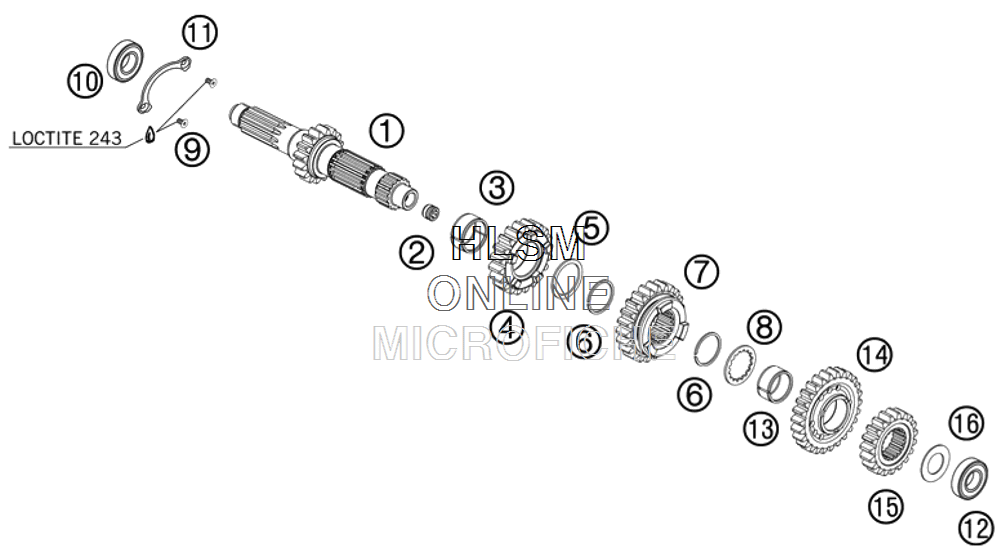

TRANSMISSION I - MAIN SHAFT для Ktm 505 SX F - 2009 года выпуска
-
№АртикулНазвание
-
177333301000 MAIN SHAFTMAIN SHAFT
-
277333001160 GUIDE BUSHINGGUIDE BUSHING
-
30405242813G NEEDLE BEAR.K 24X28X13 DIVIDEDNEEDLE BEAR.K 24X28X13 DIVIDED
-
477333303000 IDLER GEAR 3 GIDLER GEAR 3 G
-
578033031000 STOP DISK 26 X 32 X 1,5STOP DISK 26 X 32 X 1,5
-
60417025000 CIRCLIP SW25CIRCLIP SW25
-
777333304000 SLIDING GEAR 4.GSLIDING GEAR 4.G
-
878033033000 STOP DISK 23 X 32 X 1,5STOP DISK 23 X 32 X 1,5
-
90019050103 INT. TORX FLAT HEAD M 5X10 8.8INT. TORX FLAT HEAD M 5X10 8.8
-
100625062054 BALL BEARING 6205 C3 NTNBALL BEARING 6205 C3 NTN
-
1177333022100 BUSHING RETAINING PLATEBUSHING RETAINING PLATE
-
120625062036 BALL BEARING 6203 RSH C3BALL BEARING 6203 RSH C3
-
130405222613 NEEDLE BEAR. K 22X26X13 TNNEEDLE BEAR. K 22X26X13 TN
-
1477333305000 IDLER GEAR 5GIDLER GEAR 5G
-
1577333302000 SOLID GEARSOLID GEAR
-
1656033030000 STOP DISC 17,2X30X1STOP DISC 17,2X30X1
