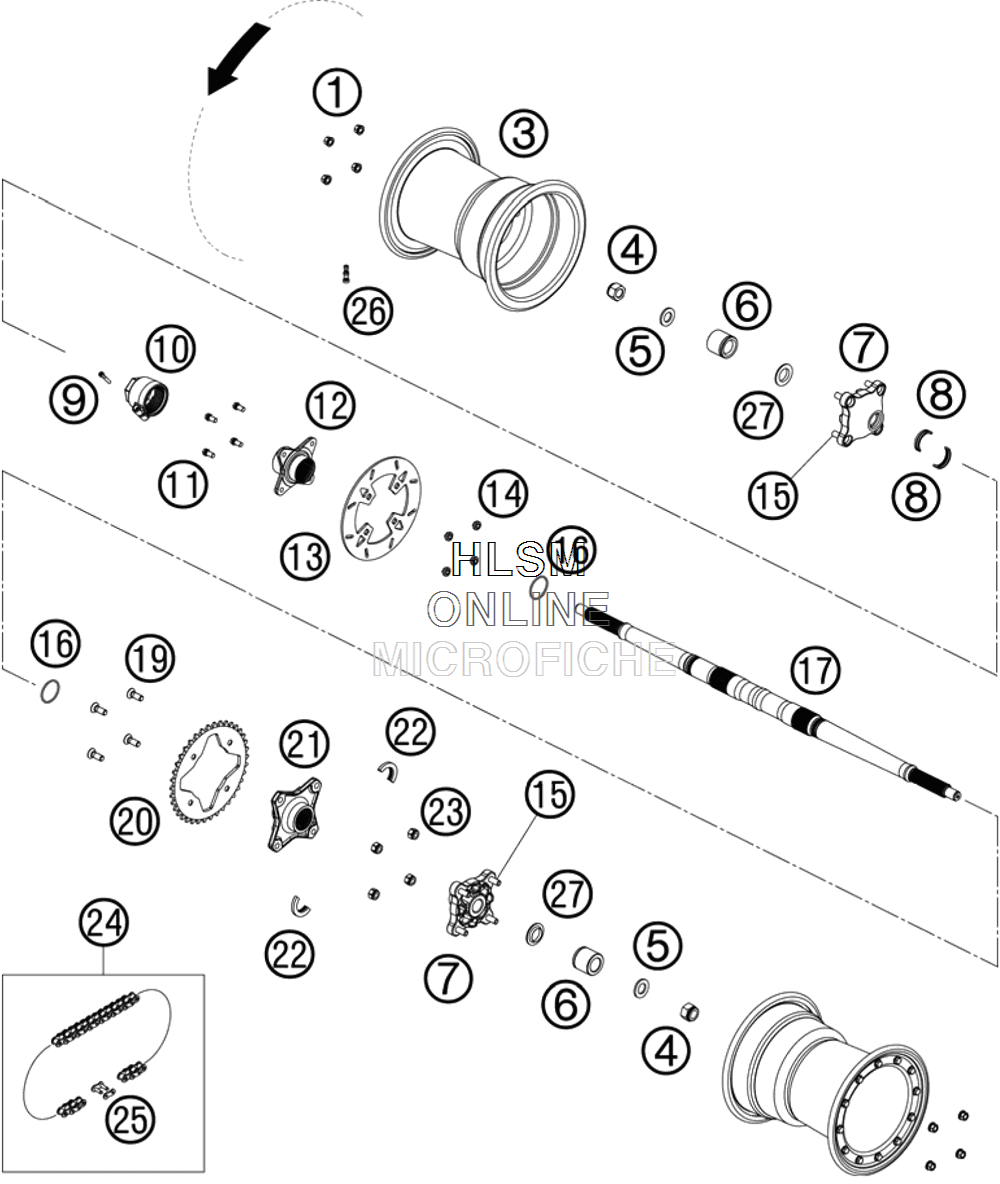

REAR WHEEL для Ktm 505 SX F - 2009 года выпуска
-
№АртикулНазвание
-
158414030000 HH COLLAR NUT M10X1,25HH COLLAR NUT M10X1,25
-
3*83510070000 RIM REAR SXRIM REAR SX
-
40985181503 SELF LOCK.NUT DIN0985-M18X1,5SELF LOCK.NUT DIN0985-M18X1,5
-
5*83010021000 TENSIONER RAIL DIN6796 D=19TENSIONER RAIL DIN6796 D=19
-
683010013000 SPACER BUSHINGSPACER BUSHING
-
783010069044 REAR WHEEL HUB CPL.REAR WHEEL HUB CPL.
-
8*83510063000 CIRCLIP REAR AXLECIRCLIP REAR AXLE
-
90912060303 AH SCREW DIN0912-M 6X30AH SCREW DIN0912-M 6X30
-
1083010064000 TENSION NUTTENSION NUT
-
110025080166S HH COLLAR SCREW M8X16HH COLLAR SCREW M8X16
-
1283010062000 BRAKE DISK SUPPORTBRAKE DISK SUPPORT
-
1383010060000 BRAKE DISK REAR D=200 MMBRAKE DISK REAR D=200 MM
-
1483010060050 SPECIAL NUT BRAKE DISK FIXINGSPECIAL NUT BRAKE DISK FIXING
-
15*83009016000 WHEELBOLTWHEELBOLT
-
160770039026 O-RING 39,34X2,62 NBR 70 SHO-RING 39,34X2,62 NBR 70 SH
-
17*83510016000 REAR AXLE SXREAR AXLE SX
-
1960003004027 FL.HEAD SCREW M10X1,25 L=27 03FL.HEAD SCREW M10X1,25 L=27 03
-
2083010051038 SPROCKET 38TSPROCKET 38T
-
2183010050000 SPROCKET SUPPORTSPROCKET SUPPORT
-
22*83510063100 CIRCLIP REAR AXLE SPROCKETCIRCLIP REAR AXLE SPROCKET
-
230982101253 SELF LOCK.NUT M10X1,25SELF LOCK.NUT M10X1,25
-
24*50310600118 CHAIN 520MX 118RCHAIN 520MX 118R
-
25*50310466000 CONNECTING LINK F. 50310466000CONNECTING LINK F. 50310466000
-
2683009076000 VALVEVALVE
-
2783010014000 CONUSRING REAR AXLECONUSRING REAR AXLE
