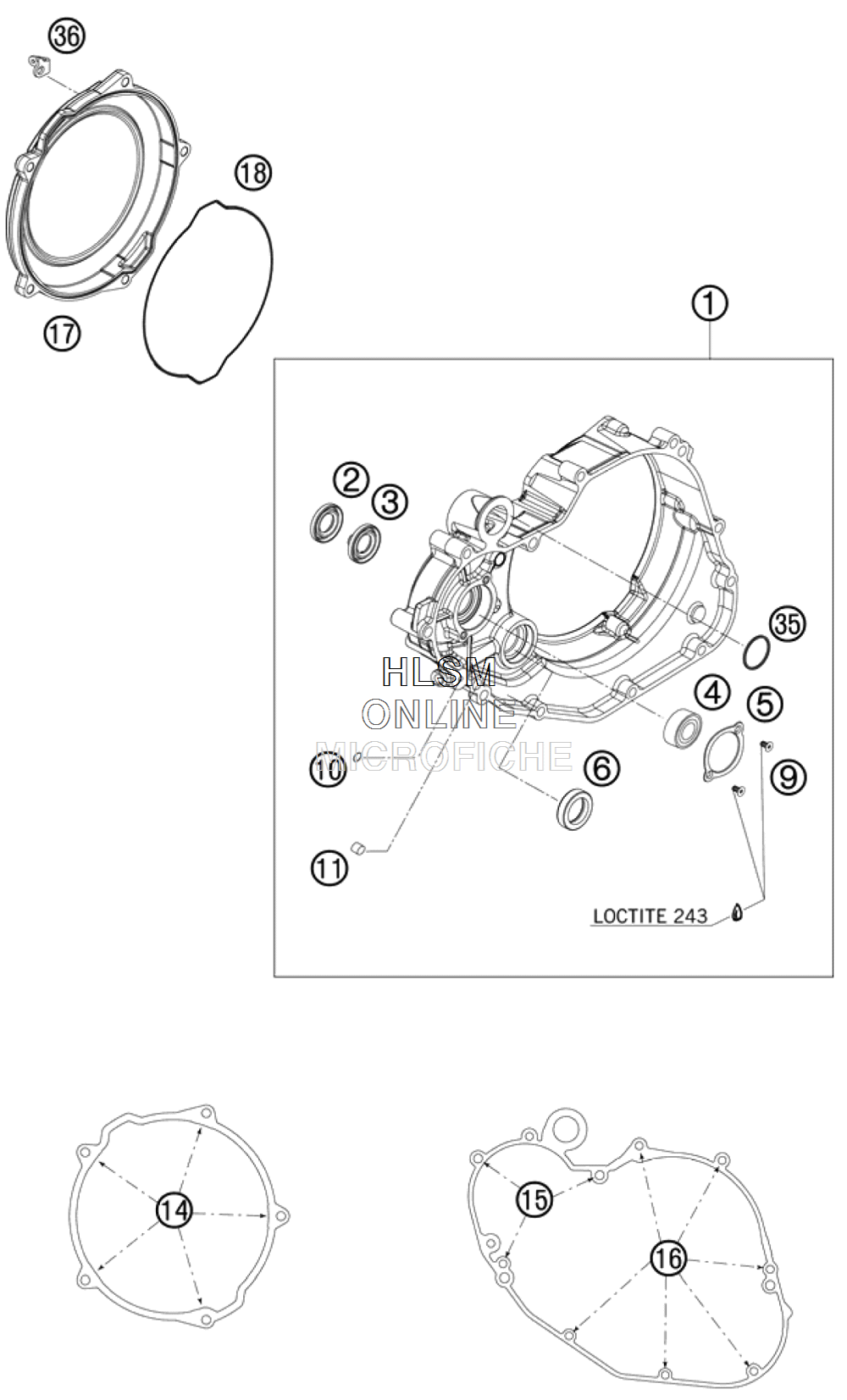

CLUTCH COVER для Ktm 505 SX F - 2009 года выпуска
-
№АртикулНазвание
-
18353000104415 CLUTCH COVER CPL.CLUTCH COVER CPL.
-
277335057000 SHAFT SEAL RING 12X24X4SHAFT SEAL RING 12X24X4
-
377335056000 SHAFT SEAL RING 12X24X4/5,5SHAFT SEAL RING 12X24X4/5,5
-
40625062021 BALL BEARING 6202 C0 2RSHBALL BEARING 6202 C0 2RSH
-
577335064100 RETAINING PLATE FOR WAPUSTOCKRETAINING PLATE FOR WAPUSTOCK
-
60760203071 SHAFT SEAL RING 20X30X7SHAFT SEAL RING 20X30X7
-
90019050103 INT. TORX FLAT HEAD M 5X10 8.8INT. TORX FLAT HEAD M 5X10 8.8
-
100770080015 O-RINGO-RING
-
110402080120 CYLINDER ROLLER ZRO. 8,0X12 M4CYLINDER ROLLER ZRO. 8,0X12 M4
-
140025060256 HH COLLAR SCREW M6X25HH COLLAR SCREW M6X25
-
1577330067145 SCREW M7-1,0X45SCREW M7-1,0X45
-
160025060306 HH COLLAR SCREW M6X30HH COLLAR SCREW M6X30
-
177733002620015 CLUTCH COVER OUTSIDECLUTCH COVER OUTSIDE
-
1877330027000 CLUTCH CASE GASKETCLUTCH CASE GASKET
-
3577335005000 QUAD-RING 28,3X1,78 VITONQUAD-RING 28,3X1,78 VITON
-
3677303026054 SPRING BRACKETSPRING BRACKET
