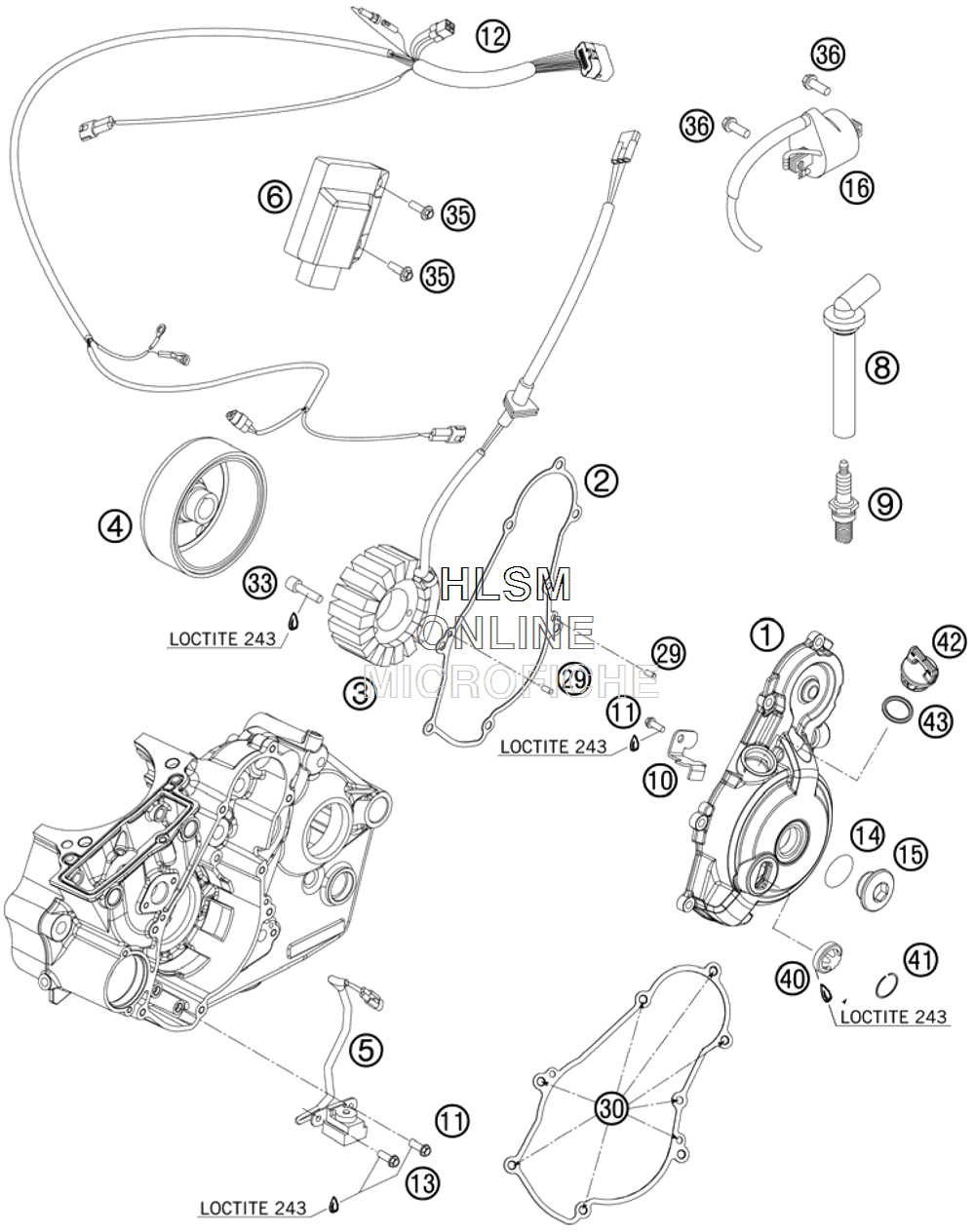

IGNITION SYSTEM для Ktm 505 SX F - 2009 года выпуска
-
№АртикулНазвание
-
18353000200015 IGNITION COVERIGNITION COVER
-
283530040000 IGNITION COVER GASKETIGNITION COVER GASKET
-
383039004000 STATORSTATOR
-
483039005000 ROTORROTOR
-
577339034000 PULSER COIL KOKUSAN "PU5165"PULSER COIL KOKUSAN "PU5165"
-
683639031000 CDI UNIT ATV 505 SXCDI UNIT ATV 505 SX
-
877339090000 SPARK PLUG NGK-XD05EMGKSPARK PLUG NGK-XD05EMGK
-
977039093000 SPARK PLUG NGK CR9EKBSPARK PLUG NGK CR9EKB
-
1083530002050 WIRE RETAINING BRACKETWIRE RETAINING BRACKET
-
110025050106 COLLAR SCREW M5X12 ISA30COLLAR SCREW M5X12 ISA30
-
1283039032000 WIRING HAR. F. CDI-BOX 525 ATVWIRING HAR. F. CDI-BOX 525 ATV
-
140770220020 O-RING 22,00X2,00 B70O-RING 22,00X2,00 B70
-
156003009400030 SCREW PLUG M24X1,5 PA 6.6SCREW PLUG M24X1,5 PA 6.6
-
1659039006000 IGNITIONCOIL KOKUSAN 4K3-A/BIGNITIONCOIL KOKUSAN 4K3-A/B
-
290402040980 NEEDLE ROL.DIN5402 NRB 4X9,8NEEDLE ROL.DIN5402 NRB 4X9,8
-
300025060206 HH COLLAR SCREW M6X20HH COLLAR SCREW M6X20
-
330912050253 AH SCREW DIN0912-M 5X25AH SCREW DIN0912-M 5X25
-
350024060206 HH COLLAR SCREW M6X20HH COLLAR SCREW M6X20
-
360025060166 HH COLLAR SCREW M6X16HH COLLAR SCREW M6X16
-
4059030019000 OIL LEVEL GLASS G 1777 YOIL LEVEL GLASS G 1777 Y
-
4161030019050 CIRCLIP OIL LEVEL GLASSCIRCLIP OIL LEVEL GLASS
-
4258030020100 PLUG CPL. M24X3PLUG CPL. M24X3
-
430770191015 O-RING 19,00X3,00 NBRO-RING 19,00X3,00 NBR
