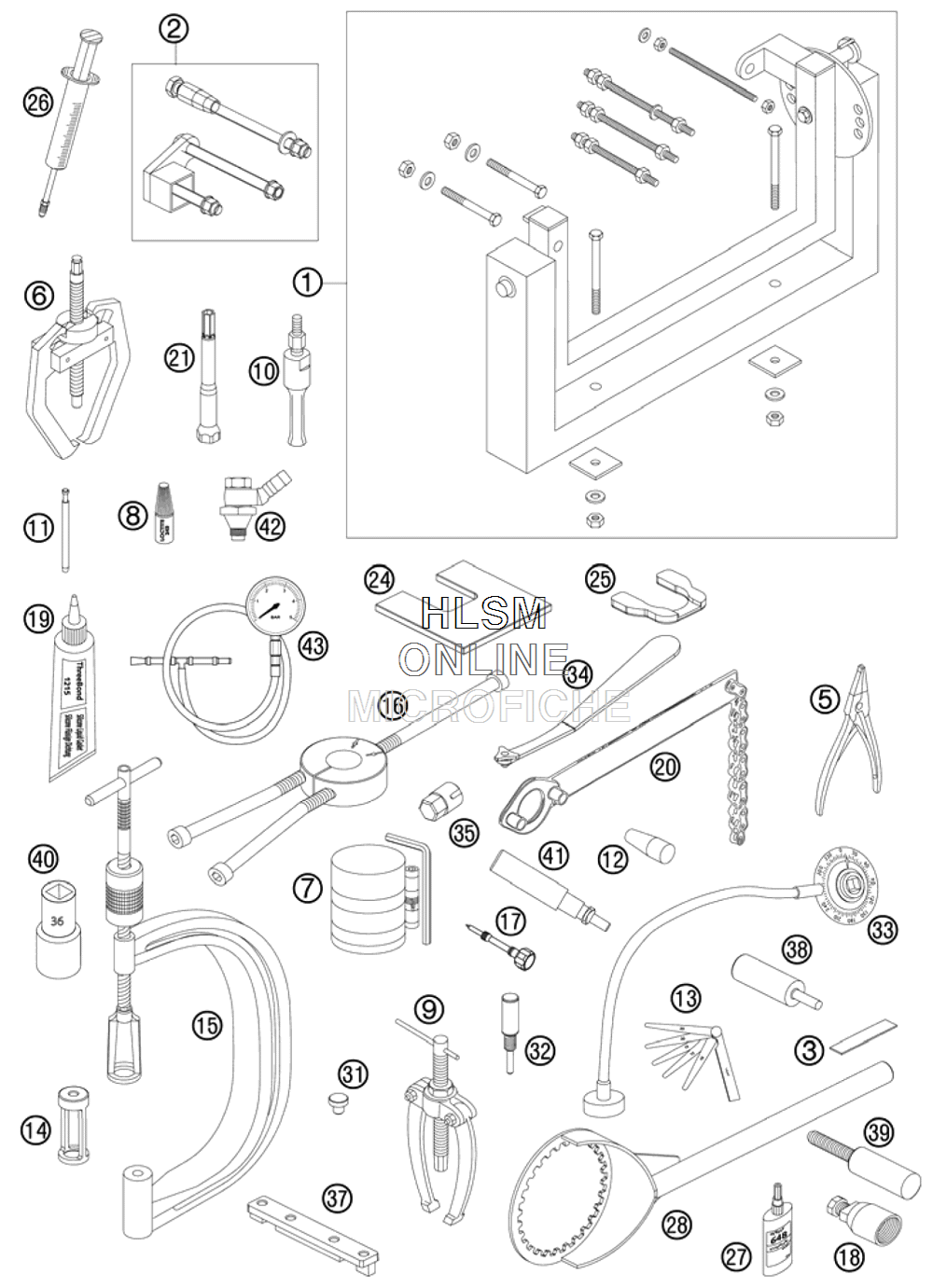

SPECIAL TOOLS - ENGINE для Ktm 505 SX F - 2009 года выпуска
-
№АртикулНазвание
-
156012001000 ASSY SUPPORT (WITHOUT HOLDER)ASSY SUPPORT (WITHOUT HOLDER)
-
283529002000 FIXING ARM CPL. 450 SXFIXING ARM CPL. 450 SX
-
360029012000 PLASTIGAUGE - MEASURING STRIPPLASTIGAUGE - MEASURING STRIP
-
551012011000 SPECIAL CIRCLIP PLIERSPECIAL CIRCLIP PLIER
-
659029033000 EXTRACTOR FOR TIMING GEAREXTRACTOR FOR TIMING GEAR
-
760029015000 PISTON RING COMPRESSOR CPL.PISTON RING COMPRESSOR CPL.
-
86899785 LOCTITE 243 BLUE 6CCMLOCTITE 243 BLUE 6CCM
-
915112017000 BUSHING EXTRACTORBUSHING EXTRACTOR
-
1015112018000 INTERN.BEAR.PULLER 12-16 MMINTERN.BEAR.PULLER 12-16 MM
-
1015112018100 INTERN.BEAR.PULLER 18-23 MMINTERN.BEAR.PULLER 18-23 MM
-
1015112018200 INTERN.BEAR.PULLER 5-7 MMINTERN.BEAR.PULLER 5-7 MM
-
1077329020000 INTERN.BEAR.PULLER 8-12 MMINTERN.BEAR.PULLER 8-12 MM
-
1159029026006 LIMIT PLUG GAUGE F.VALVE GUIDELIMIT PLUG GAUGE F.VALVE GUIDE
-
1258529005000 MOUNT.SLEEVE F. SH.S.RING WAPUMOUNT.SLEEVE F. SH.S.RING WAPU
-
1359029041000 FEEL. GAUGE SET 10,12,15,20,25FEEL. GAUGE SET 10,12,15,20,25
-
1477329060000 INSERT FOR VALVE SPRING LEVERINSERT FOR VALVE SPRING LEVER
-
1559029019000 VALVE SPRING LEVERVALVE SPRING LEVER
-
1658429037037 MOUNTING TOOL INNER RING NJ206MOUNTING TOOL INNER RING NJ206
-
1759031017200 MIXT. CONTROL SCREW FACTORYMIXT. CONTROL SCREW FACTORY
-
1858012009000 FLYWHEEL EXTRACTORFLYWHEEL EXTRACTOR
-
19309098 SILICON GASKET THREE-BONDSILICON GASKET THREE-BOND
-
2051012012000 HOLDING SPANNER FOR SPROCKETHOLDING SPANNER FOR SPROCKET
-
2177329072000 SPARK PLUG WRENCHSPARK PLUG WRENCH
-
2477629009001 EXTRUDE PLATE BASE F. CRANKSH.EXTRUDE PLATE BASE F. CRANKSH.
-
2577629009002 EXTRUDE PLATE TOP F. CRANKSH.EXTRUDE PLATE TOP F. CRANKSH.
-
2650329050000 VENT INJEKTION HYDR. CLUTCHVENT INJEKTION HYDR. CLUTCH
-
2758429059000 LOCTITE 648 GREEN 24MLLOCTITE 648 GREEN 24ML
-
2877329003000 HOLD. PLATE CLUTCHHOLD. PLATE CLUTCH
-
3175029090000 PROTECTOR CAP F.CRANKSHAFTPROTECTOR CAP F.CRANKSHAFT
-
3277329012100 ASSEMB. PIN F. GUID. AGW-ZR-KSASSEMB. PIN F. GUID. AGW-ZR-KS
-
3360029010000 DEGREE DISK 360DEG - 1/2 INCHDEGREE DISK 360DEG - 1/2 INCH
-
3477329034000 WRENCH F.MIXTURE CONTROL SCREWWRENCH F.MIXTURE CONTROL SCREW
-
3577329081000 SP. WRENCH F.HOSE CONNECTORSP. WRENCH F.HOSE CONNECTOR
-
3777329050000 ADJUST BUSH BRIDGEADJUST BUSH BRIDGE
-
3877329051000 UNLOCK CHAIN TENSIONERUNLOCK CHAIN TENSIONER
-
3977329010000 LOCATING SCREWLOCATING SCREW
-
4077329021000 SPECIAL SOCKET F. PRIMARY GEARSPECIAL SOCKET F. PRIMARY GEAR
-
4177329030100 PLUG IN FUSE PISTON PINPLUG IN FUSE PISTON PIN
-
4277329006000 ADAPTOR F.OIL PRESSURE GAUGEADAPTOR F.OIL PRESSURE GAUGE
-
4361029094000 EFI PRESSURE TESTEREFI PRESSURE TESTER
