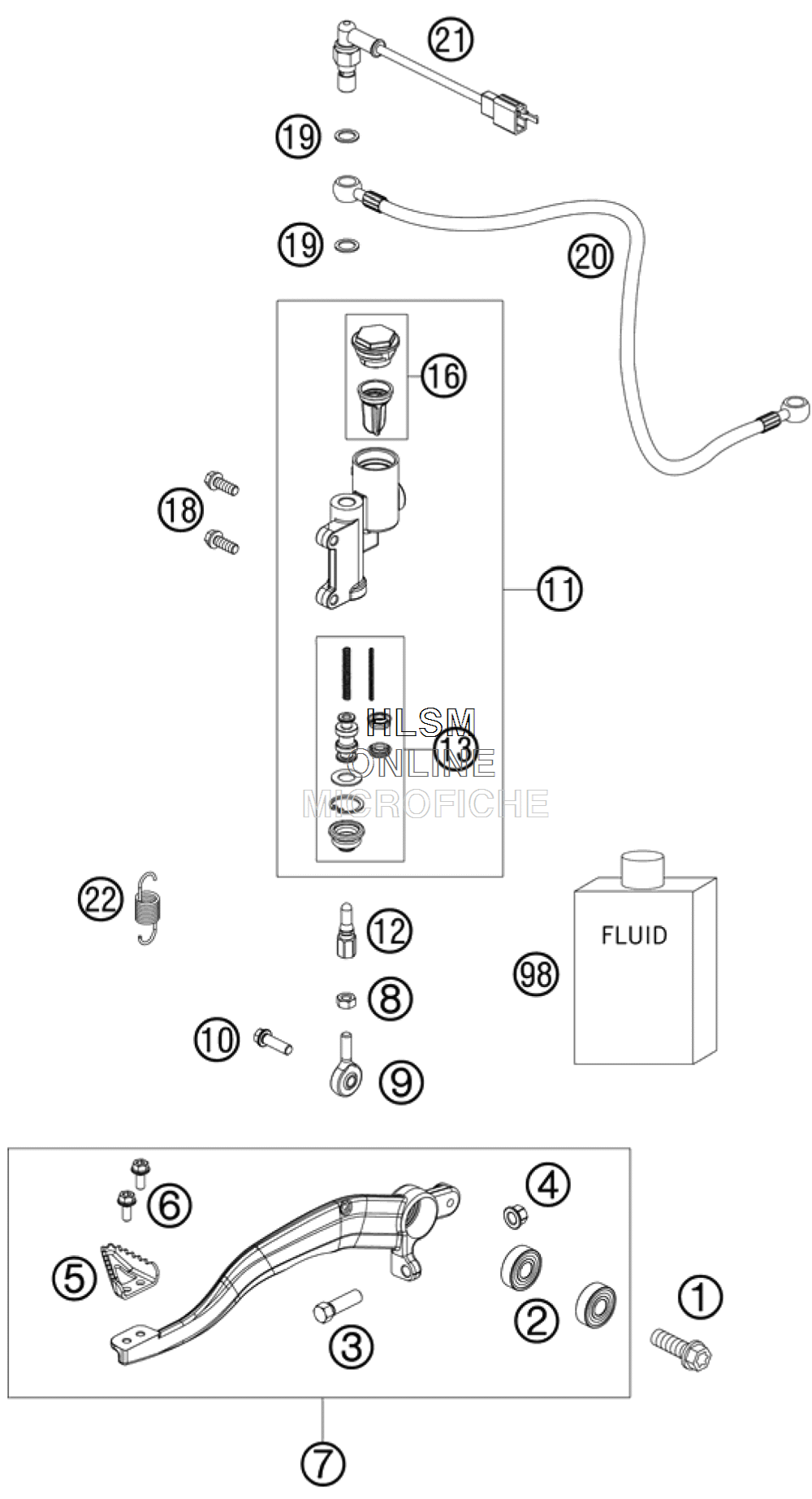

REAR BRAKE CONTROL для Ktm 505 SX F - 2009 года выпуска
-
№АртикулНазвание
-
1*0035100309S AH-COLLAR SCREW M10X30 ISA45AH-COLLAR SCREW M10X30 ISA45
-
20625060002 BALL BEARING SKF 6000-2RS1BALL BEARING SKF 6000-2RS1
-
359001037000 SPECIAL SCREW M8X26 WS=10SPECIAL SCREW M8X26 WS=10
-
446030045000 COLLAR NUT M8 WS=10COLLAR NUT M8 WS=10
-
560013051000 STEP PLATE FOOT BRAKE LEVERSTEP PLATE FOOT BRAKE LEVER
-
60025050126 HH COLLAR SCREW M5X12HH COLLAR SCREW M5X12
-
783013050044 FOOT BRAKE LEVER CPL. ATVFOOT BRAKE LEVER CPL. ATV
-
80985060003 SELF LOCK. NUT DIN0985-M 6SELF LOCK. NUT DIN0985-M 6
-
954813055000 SWIVEL HEAD KA6SWIVEL HEAD KA6
-
100025060206 HH COLLAR SCREW M6X20HH COLLAR SCREW M6X20
-
1183013060000 FOOT BRAKE CYL. MAGURA 13MMFOOT BRAKE CYL. MAGURA 13MM
-
1283013056000 PUSH RODPUSH ROD
-
1383013061000 REPAIR KIT PISTON MAGURA 13 MMREPAIR KIT PISTON MAGURA 13 MM
-
1683013062000 COVER, MEMBRANE MAGURACOVER, MEMBRANE MAGURA
-
180025060166 HH COLLAR SCREW M6X16HH COLLAR SCREW M6X16
-
1959413013050 COPPER GASKETCOPPER GASKET
-
20*83013070100 BRAKE HOSE REARBRAKE HOSE REAR
-
2150311051100 BRAKE LIGHT SWITCH REARBRAKE LIGHT SWITCH REAR
-
2283003062000 RETURN SPRING F. BRAKE LEVERRETURN SPRING F. BRAKE LEVER
-
9800062030000 BRAKE FLUID DOT5.1 0,25LBRAKE FLUID DOT5.1 0,25L
