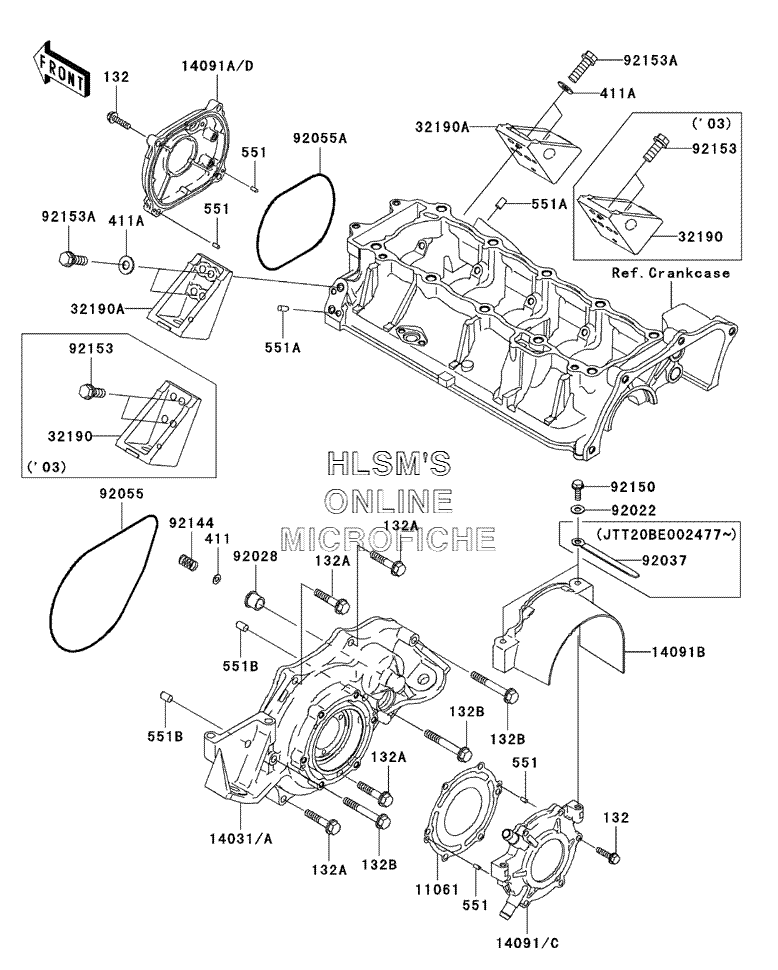

ENGINE COVER(S) для Kawasaki STX-12F (JT1200-B2) - 2004 года выпуска`
-
№АртикулНазвание
-
132132Y0625 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
132A132Y0840 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
132B132Y0860 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
411411S0500 WASHER, PLAIN, 5MMWASHER, PLAIN, 5MM
-
411A411S0800 WASHER, PLAIN, 8MMWASHER, PLAIN, 8MM
-
551551R0408 PIN, DOWELPIN, DOWEL
-
551A551R0612 PIN, DOWELPIN, DOWEL
-
551B551R0812 PIN, DOWELPIN, DOWEL
-
1106111061-3709 GASKET, OUTPUT COVERGASKET, OUTPUT COVER
-
14031A14031-3734 COVER, GENERATORCOVER, GENERATOR
-
14091B14091-3749 COVER, COUPLINGCOVER, COUPLING
-
14091C14091-3762 COVER, OUTPUTCOVER, OUTPUT
-
14091D14091-3763 COVER, PULSCOVER, PULS
-
32190A32190-3703 BRACKET, ENGINEBRACKET, ENGINE
-
9202292022-3710 WASHER, 6.5X20X1.5WASHER, 6.5X20X1.5
-
9202892028-3718 BUSHINGBUSHING
-
9203792037-3736 CLAMP, L=100CLAMP, L=100
-
9205592055-3761 O-RING, 196X3O-RING, 196X3
-
92055A92055-3762 O-RING, 120X3O-RING, 120X3
-
9214492144-3728 SPRINGSPRING
-
9215092150-3729 BOLT, 6X18BOLT, 6X18
-
92153A92153-3722 BOLT, FLANGED, 8X30BOLT, FLANGED, 8X30
