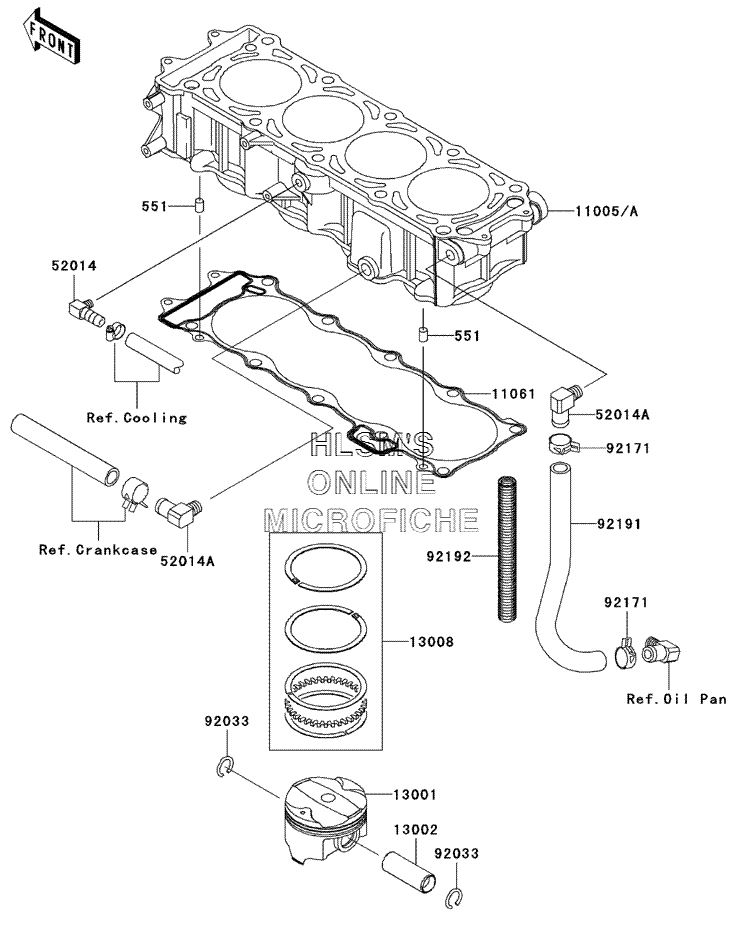

CYLINDER/PISTON(S) для Kawasaki STX-12F (JT1200-B2) - 2004 года выпуска
-
№АртикулНазвание
-
551551R0812 PIN, DOWELPIN, DOWEL
-
11005A11005-3758 CYLINDER, ENGINECYLINDER, ENGINE
-
1106111061-3708 GASKET, CYLINDER BASEGASKET, CYLINDER BASE
-
1300113001-3736 PISTON, ENGINEPISTON, ENGINE
-
1300213002-3709 PIN, PISTONPIN, PISTON
-
1300813008-1196 RING, SET, PISTONRING, SET, PISTON
-
5201452014-3708 ELBOWELBOW
-
52014A52014-3717 ELBOWELBOW
-
9203392033-1188 RING, SNAPRING, SNAP
-
9217192171-3710 CLAMP, TUBECLAMP, TUBE
-
9219192191-3983 TUBE, BREATHERTUBE, BREATHER
-
9219292192-3702 TUBE, 19.5X23.8X170TUBE, 19.5X23.8X170
