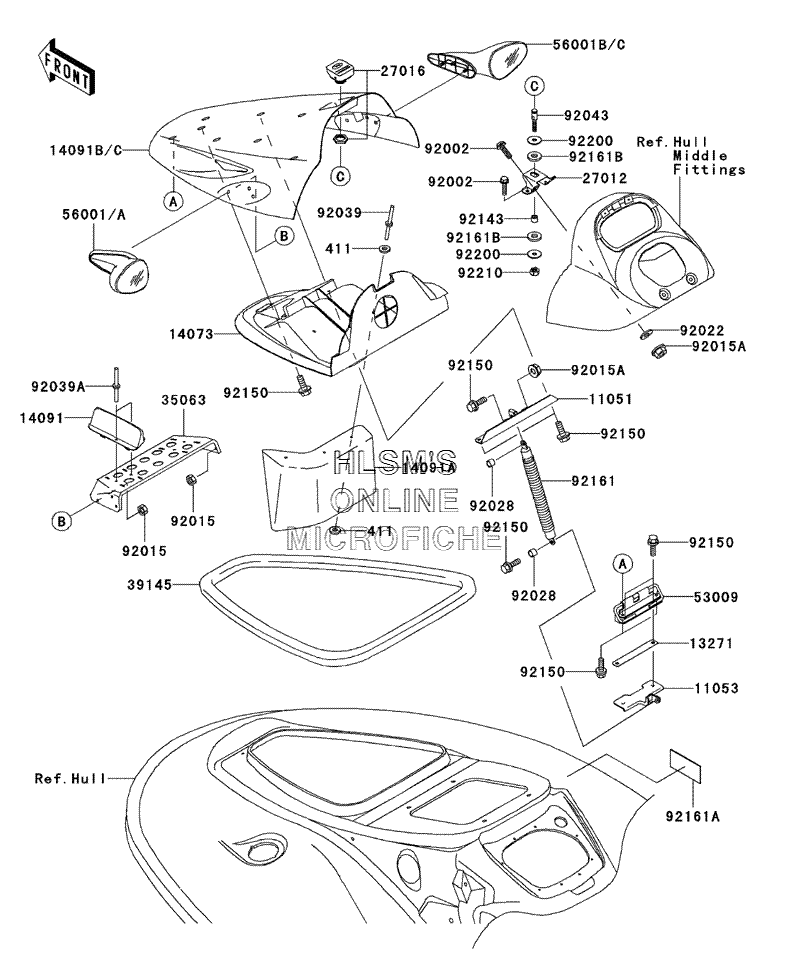

HULL FRONT FITTINGS для Kawasaki STX-12F (JT1200-B2) - 2004 года выпуска
-
№АртикулНазвание
-
411411S0500 WASHER, PLAIN, 5MMWASHER, PLAIN, 5MM
-
1105111051-3766 BRACKETBRACKET
-
1105311053-3752 BRACKETBRACKET
-
1327113271-3897 PLATEPLATE
-
1407314073-3796 DUCT, FRONTDUCT, FRONT
-
1409114091-3707 COVERCOVER
-
14091A14091-3722 COVER, FRONT DUCTCOVER, FRONT DUCT
-
14091C14091-3753-VK COVER, HATCH (P.C.GRAY)COVER, HATCH (P.C.GRAY)
-
2701227012-3841 HOOKHOOK
-
2701627016-3757 LOCK, ASSY.LOCK, ASSY.
-
3506335063-3703 STAY, MIRRORSTAY, MIRROR
-
3914539145-3773 TRIM, SEAL, L=1380TRIM, SEAL, L=1380
-
5300953009-3725 HINGE, HATCH COVERHINGE, HATCH COVER
-
56001A56001-3719-SL MIRROR, ASSY. (LEFT) (P.C.GRAY)MIRROR, ASSY. (LEFT) (P.C.GRAY)
-
56001C56001-3720-SL MIRROR, ASSY. (RIGHT) (P.C.GRAY)MIRROR, ASSY. (RIGHT) (P.C.GRAY)
-
9200292002-3714 BOLT, 6X25BOLT, 6X25
-
9201592015-3766 NUT, LOCK, 6MMNUT, LOCK, 6MM
-
92015A92015-3767 NUT, 6MMNUT, 6MM
-
9202292022-3710 WASHER, 6.5X20X1.5WASHER, 6.5X20X1.5
-
9202892028-3765 BUSHINGBUSHING
-
9203992039-3714 RIVETRIVET
-
92039A92039-3719 RIVET, 4.8MMRIVET, 4.8MM
-
9204392043-3757 PINPIN
-
9214392143-3724 COLLAR, 8.2X14X11.2COLLAR, 8.2X14X11.2
-
9215092150-3729 BOLT, 6X18BOLT, 6X18
-
9216192161-3705 DAMPERDAMPER
-
92161A92161-3728 DAMPERDAMPER
-
92161B92161-3739 DAMPERDAMPER
-
9220092200-3786 WASHER, 8.5X32X2WASHER, 8.5X32X2
-
9221092210-3742 NUT, LOCK, 8MMNUT, LOCK, 8MM
