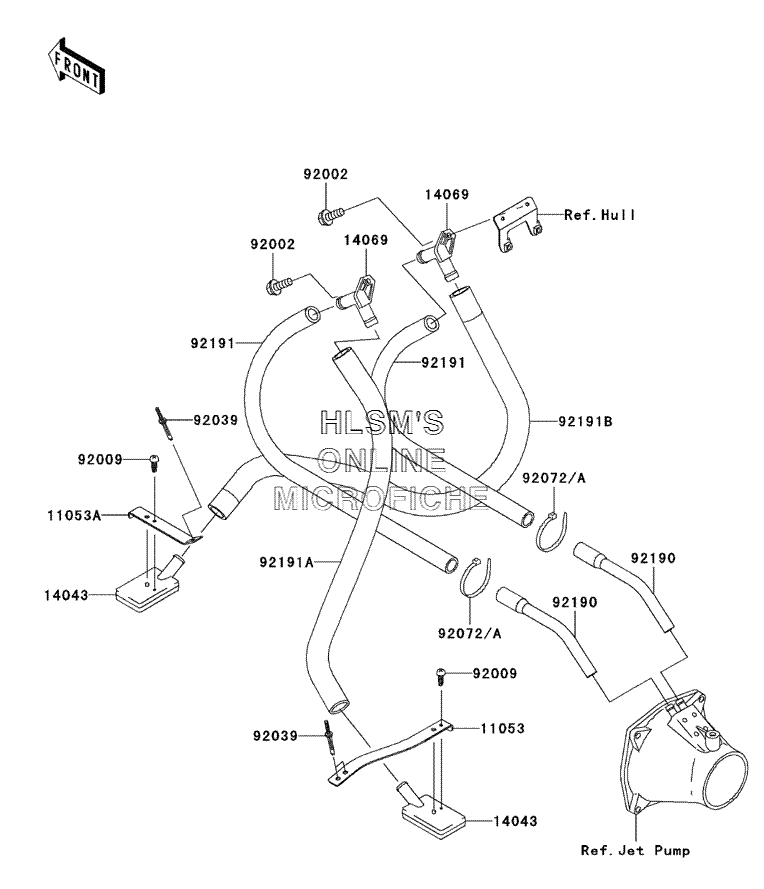

BILGE SYSTEM для Kawasaki STX-12F (JT1200-B2) - 2004 года выпуска
-
№АртикулНазвание
-
1105311053-3744 BRACKET, REAR (LEFT)BRACKET, REAR (LEFT)
-
11053A11053-3745 BRACKET, FRONT, CENTERBRACKET, FRONT, CENTER
-
1404314043-3711 FILTERFILTER
-
1406914069-3708 BREATHERBREATHER
-
9200292002-3728 BOLT, 6X16BOLT, 6X16
-
9200992009-3762 SCREW, TAPPING, 4X14SCREW, TAPPING, 4X14
-
9203992039-3753 RIVETRIVET
-
9207292072-1239 BAND, L=188BAND, L=188
-
9219092190-3971 TUBE, HULL, NOZZLETUBE, HULL, NOZZLE
-
9219192191-3988 TUBE, BREATHER, HULLTUBE, BREATHER, HULL
-
92191A92191-3989 TUBE, FILTER, BREATHERTUBE, FILTER, BREATHER
-
92191B92191-3990 TUBE, FILTER, BREATHERTUBE, FILTER, BREATHER
