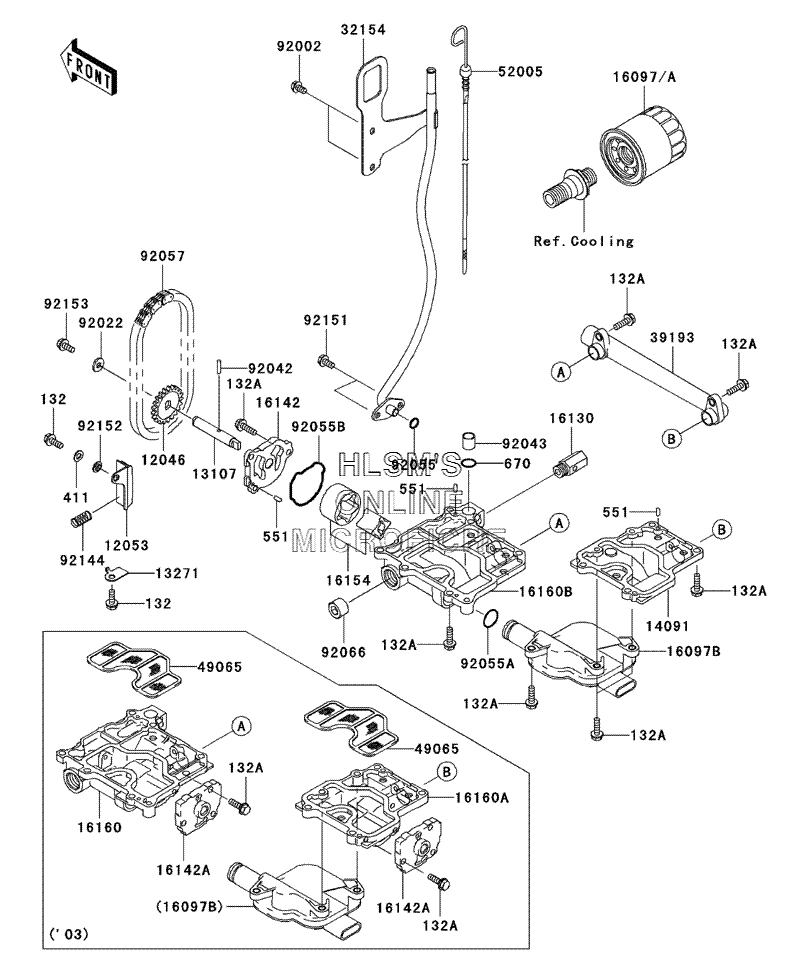

OIL PUMP для Kawasaki STX-12F (JT1200-B2) - 2004 года выпуска
-
№АртикулНазвание
-
132132Y0616 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
132A132Y0620 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
411411S0600 WASHER, PLAIN, 6MMWASHER, PLAIN, 6MM
-
551551R0408 PIN, DOWELPIN, DOWEL
-
670670D2014 O-RING, 14MMO-RING, 14MM
-
1204612046-3701 SPROCKET (23 TEETH)SPROCKET (23 TEETH)
-
1205312053-3704 GUIDE, CHAINGUIDE, CHAIN
-
1310713107-3782 SHAFTSHAFT
-
1327113271-3850 PLATEPLATE
-
1409114091-3767 COVER, OIL PUMPCOVER, OIL PUMP
-
16097A16097-1072 FILTER, ASSY., OILFILTER, ASSY., OIL
-
16097B16097-3702 FILTER, ASSY., OILFILTER, ASSY., OIL
-
1613016130-3701 VALVE, ASSY., RELIEFVALVE, ASSY., RELIEF
-
1614216142-3703 COVER, PUMPCOVER, PUMP
-
1615416154-1124 ROTOR, PUMPROTOR, PUMP
-
16160B16160-3748 BODY, OIL PUMPBODY, OIL PUMP
-
3215432154-3707 PIPE, OIL LEVELPIPE, OIL LEVEL
-
3919339193-3702 PIPE, OILPIPE, OIL
-
5200552005-3709 GAUGE, OIL LEVELGAUGE, OIL LEVEL
-
9200292002-3763 BOLT, 6X12BOLT, 6X12
-
9202292022-1565 WASHER, 6.5X16X2WASHER, 6.5X16X2
-
9204292042-014 PIN, DOWEL, 4X15.8PIN, DOWEL, 4X15.8
-
9204392043-1279 PIN, 11.5X14X14PIN, 11.5X14X14
-
9205592055-1150 O-RING, 10MMO-RING, 10MM
-
92055A92055-1332 O-RING, 19.8X1.9O-RING, 19.8X1.9
-
92055B92055-3764 O-RINGO-RING
-
9205792057-3710 CHAIN, OIL PUMPCHAIN, OIL PUMP
-
9206692066-0002 PLUG, PT1/2X12.5PLUG, PT1/2X12.5
-
9214492144-1551 SPRINGSPRING
-
9215192151-3788 BOLT, 6X14BOLT, 6X14
-
9215292152-3737 COLLAR, GUIDECOLLAR, GUIDE
-
9215392153-3717 BOLT, 6X14BOLT, 6X14
