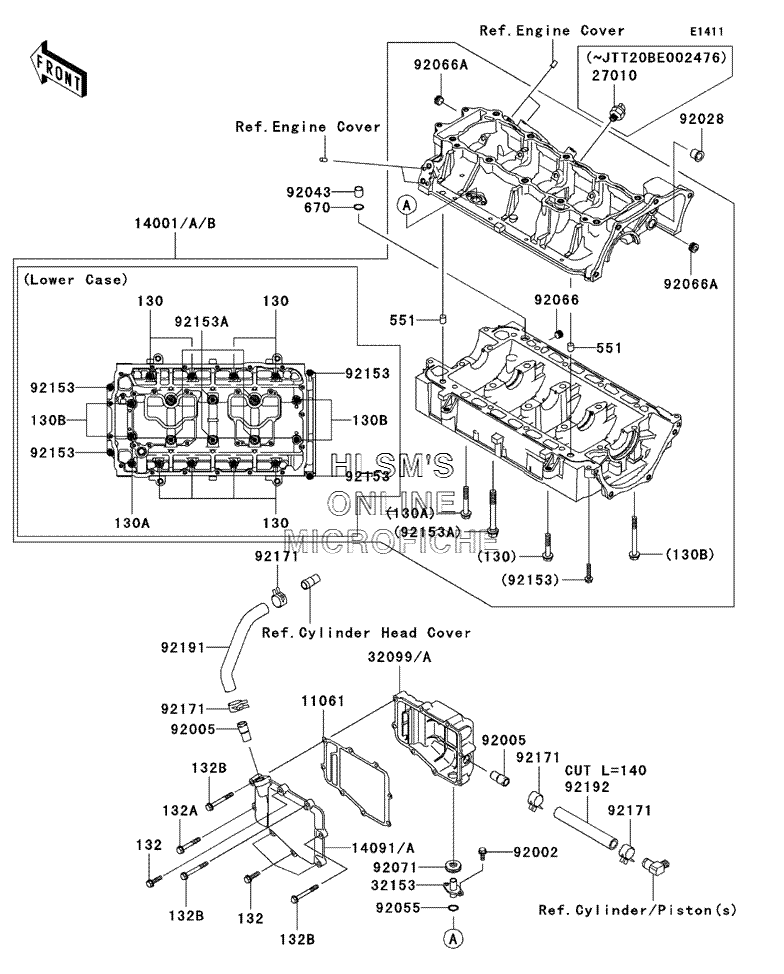

CRANKCASE для Kawasaki STX-12F (JT1200-B2) - 2004 года выпуска
-
№АртикулНазвание
-
130130Z0845 BOLT, FLANGEDBOLT, FLANGED
-
130A130Z0855 BOLT, FLANGEDBOLT, FLANGED
-
130B130Z0885 BOLT, FLANGEDBOLT, FLANGED
-
132132Y0625 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
132A132Y0645 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
132B132Y0655 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
551551R1012 PIN, DOWELPIN, DOWEL
-
670670D2014 O-RING, 14MMO-RING, 14MM
-
1106111061-3715 GASKET, BREATHER CASEGASKET, BREATHER CASE
-
14001B14001-3743 SET, CRANKCASESET, CRANKCASE
-
14091A14091-3761 COVER, BREATHERCOVER, BREATHER
-
32099A32099-3848 CASE, BREATHERCASE, BREATHER
-
3215332153-3732 PIPE, BREATHERPIPE, BREATHER
-
9200292002-3728 BOLT, 6X16BOLT, 6X16
-
9200592005-3741 FITTINGFITTING
-
9202892028-3718 BUSHINGBUSHING
-
9204392043-1279 PIN, 11.5X14X14PIN, 11.5X14X14
-
9205592055-3768 O-RING, 12X3O-RING, 12X3
-
9206692066-3778 PLUGPLUG
-
92066A92066-3782 PLUGPLUG
-
9207192071-1261 GROMMETGROMMET
-
9215392153-3707 BOLT, 6X30BOLT, 6X30
-
92153A92153-3711 BOLT, 10X85BOLT, 10X85
-
9217192171-3710 CLAMP, TUBECLAMP, TUBE
-
9219192191-3964 TUBE, HEAD COVER, BREATHERTUBE, HEAD COVER, BREATHER
-
9219292192-3723 TUBE, 14X20X140TUBE, 14X20X140
